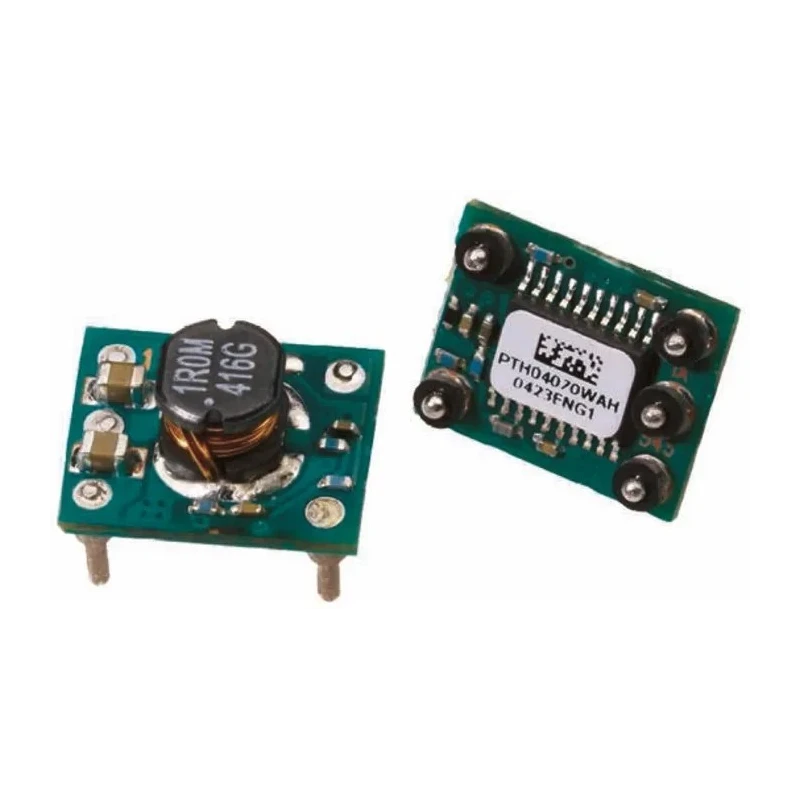

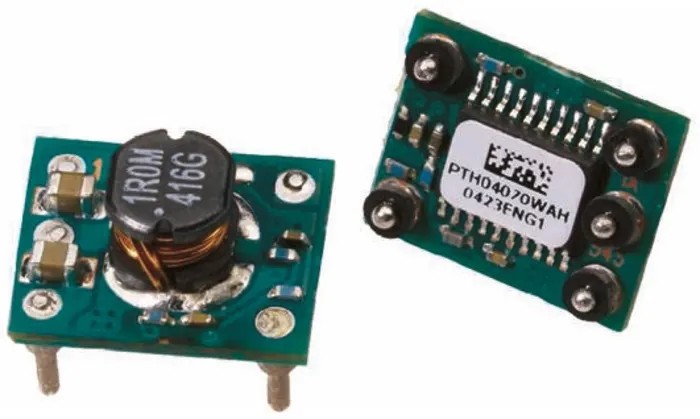

Texas Instruments 5-Channel Adjustable DC/DC Power Supply Module 3.6V 900mV 5-Pin DIP PTH04070WAZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 7.56mm |
| Length | 12.57mm |
| Model | PTH04070WAZ |
| Width | 10.16mm |
| Mount Type | Through Hole |
| Output type | Adjustable |
| Series | PTH04070 |
| Topology | Switching Regulator |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Maximum Input Voltage | 5V |
| Maximum Switching Frequency | 700kHz |
| Maximum Output Current | 3A |
| Maximum Output Voltage | 3.6V |
| Minimum Input Voltage | 3.3V |
| Pin Count | 5 |
| Minimum Output Voltage | 900mV |
Key Features
- Features a maximum output voltage of 3.6V and a minimum output voltage of 900mV.
- Supports input voltage range from 3.3V to 5V with adjustable output.
- Offers a maximum output current of 3A with switching regulator topology.
- Equipped with 5 separate outputs and a 5-pin DIP through-hole package.
- Operates with a maximum switching frequency of 700kHz ensuring high efficiency.
- Thermally optimized with a compact size of 12.57mm length, 10.16mm width, and 7.56mm height.
- Suitable for a wide operating temperature range from -40°C to 85°C.
- Complies with EMI standards passing EN55022 (CISPR22) Class B radiated and conducted emissions.
Product Description
Texas Instruments PTH04070WAZ is a high-performance 5-channel DC/DC power supply module that provides an adjustable output voltage ranging from 900mV to 3.6V. This module features a switching regulator topology optimized for power efficiency and thermal performance.
The module supports input voltages from 3.3V up to 5V and can deliver a maximum output current of 3A. Its compact DIP package with through-hole mounting facilitates easy integration into printed circuit boards. The 5 outputs allow versatile power distribution in complex systems.
This power supply module operates at a maximum switching frequency of 700kHz, supporting high efficiency and low noise performance while passing EN55022 Class B EMI standards. The module performs reliably within an operating temperature range of -40°C to 85°C, making it suitable for demanding industrial and automotive environments.
Its integrated shielded inductor and precision enable features, along with soft-start and tracking capabilities, provide excellent power management and sequencing control for embedded applications.
Texas Instruments' PTH series power modules like the PTH04070WAZ offer a reliable all-in-one power solution with superior EMI protection, thermal management, and compact packaging for industrial, laboratory, automotive, and manufacturing power systems.
Features a maximum output voltage of 3.6V and adjustable output from 900mV. Maximum output current rating of 3A with switching regulator topology. 5 outputs with 5-pin DIP package and through-hole mount type. Maximum switching frequency of 700kHz for efficient performance.
Operating temperature range from -40°C to 85°C for industrial use. Passes EN55022 (CISPR22) Class B EMI standards ensuring low noise. Integrated shielded inductor and soft-start for sequencing control. Compact dimensions: 12.57mm (L) x 10.16mm (W) x 7.56mm (H).
Reliable power management for automotive, industrial, and embedded applications. Explore the PTH series by Texas Instruments for high-efficiency DC/DC Power Modules available on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this module is 3.6V.
The minimum output voltage is 900mV.
It can deliver a maximum output current of 3A.
The module supports an input voltage range from 3.3V to 5V.
This model features 5 separate outputs.
The maximum switching frequency is 700kHz.
The dimensions are 12.57mm in length, 10.16mm in width, and 7.56mm in height.
It operates within a temperature range of -40°C to 85°C.
This model uses a through-hole mounting type.
It utilizes a switching regulator topology.
It complies with EN55022 (CISPR22) Class B for radiated and conducted emissions.
The package type is DIP (Dual In-line Package).
