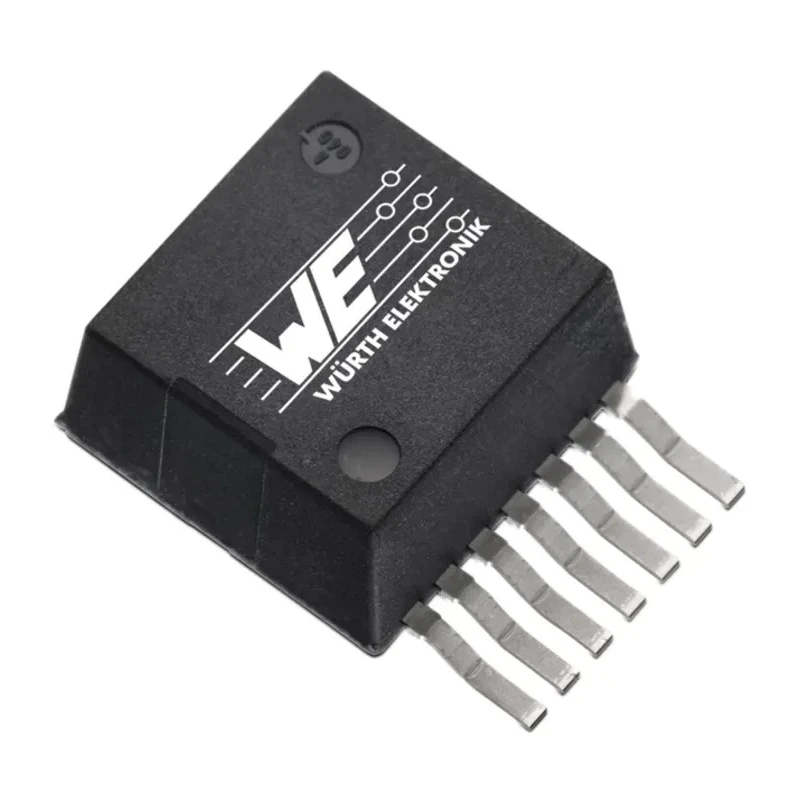

Wurth Elektronik 5-Channel DC/DC Power Supply Module Adjustable 24V, 5 V Output, 7-Pin PFM 171032401

Wurth Elektronik 171032401 5-Channel DC/DC Power Supply Module is an adjustable step-down regulator designed for efficient power management in demanding electronic environments. With a maximum output voltage of 24V and a minimum of 5V, it supports output currents up to 3A, making it suitable for various industrial and telecommunications applications.

This surface-mount PFM package module utilizes step-down topology and features a compact 7-pin design measuring 10.16mm in length, 9.85mm in width, and 4.57mm in height. The input voltage range extends from 6V to 42V, offering wide compatibility with different power sources.

Built-in protection circuits include thermal shutdown, inrush current limitation, overvoltage, and undervoltage protection, ensuring safe and reliable operation. It operates efficiently between 90% and 97% peak efficiency, delivering low noise performance compliant with EN55022 class B EMI standards. The module operates reliably in extreme temperature conditions from -40°C up to 125°C.

Compliance with REACH and RoHS regulations confirms the module’s environmental safety. The MagI3C-VDRM series integrates current mode control with built-in compensation and soft-start features to optimize performance. Typical use cases encompass point-of-load DC/DC conversion, industrial control systems, telecommunications equipment, microcontroller unit (MCU) power regulation, microprocessor units (MPU), digital signal processors (DSP), field-programmable gate arrays (FPGA), and input/output interfaces requiring stable and adjustable power supplies.

The module supports a maximum output voltage of 24V and a minimum output voltage of 5V. It features a maximum output current rating of 3A with step-down topology for efficient power management. The input voltage range is from 6V to 42V, providing flexibility across different systems.

Surface mount package type PFM with a compact 7-pin design ensures easy integration on PCBs. Includes built-in protections such as thermal shut-down, inrush current limitation, overvoltage and undervoltage safeguards. Operating temperature ranges from -40°C to 125°C, suitable for harsh environments.

Peak efficiency ranges between 90% to 97%, minimizing power loss and heat generation. Complies with REACH and RoHS directives and meets low noise EN55022 class B EMI standards. Compact dimensions measuring 10.16 mm length by 9.85 mm width and 4.57 mm height.

Ideal for industrial, telecom, and embedded electronics power regulation. Explore more Wurth Elektronik MagI3C Power Modules and enhance your designs with reliable, efficient DC/DC conversion solutions available on EnvMart.
