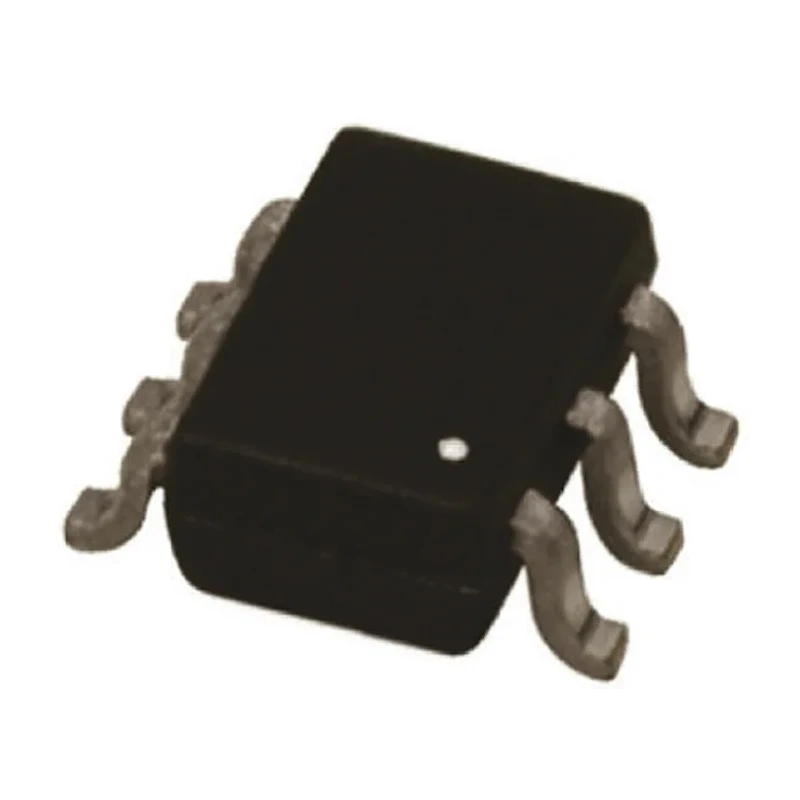

onsemi 6-Pin SOT-23 NPN Bipolar Transistor 200 mA 40 V Surface Mount Dual & Quad Multi-Chip FMB3904

onsemi FMB3904 is a high-performance NPN bipolar junction transistor packaged in a compact 6-Pin SOT-23 surface mount device. It is engineered to provide reliable amplification and switching in electronic circuits, withstanding collector currents up to 200 mA and collector-emitter voltages of 40 V.

This transistor is designed for applications requiring efficient power dissipation, with a rating of 700 mW, and operates effectively over a wide temperature range from -55°C to 150°C, making it suitable for demanding industrial and automotive environments. Its isolated transistor configuration and minimum DC current gain of 30 ensure consistent performance across various circuit requirements.

Featuring a compact form factor with dimensions 3 mm length, 2.1 mm width, and 1.1 mm height, the FMB3904 allows high-density PCB layouts without compromising on performance. It has a maximum transition frequency of 250 MHz, supporting high-frequency switching tasks crucial in communications and signal processing.

The transistor is built with a 6-pin SOT-23 surface mount package facilitating easy integration and automated assembly processes in manufacturing. Applications include industrial controls, automotive electronics, consumer devices, and power management systems where reliable, compact transistors are essential.

The transistor features a compact 6-Pin SOT-23 package ideal for space-constrained circuit designs. Supports maximum collector current (Idc) of 200 mA and collector-emitter voltage (Vceo) up to 40 V for versatile power handling.

Offers a minimum DC current gain (hFE) of 30 ensuring reliable amplification performance. Suitable for operation in extreme temperatures ranging from -55°C to 150°C. Maximum power dissipation of 700 mW enables efficient thermal management.

Configured as isolated transistor with NPN polarity, ideal for various electronic circuit applications. Maximum transition frequency (ft) of 250 MHz supports high-speed switching requirements. Compact dimensions: Length 3 mm, Width 2.1 mm, Height 1.1 mm to accommodate high-density PCBs.

This onsemi transistor is an excellent choice for developers and manufacturers seeking robust, high-frequency, surface-mount transistors. It supports diverse industrial, consumer electronics, automotive, and communication systems, facilitating efficient circuit design and performance.
