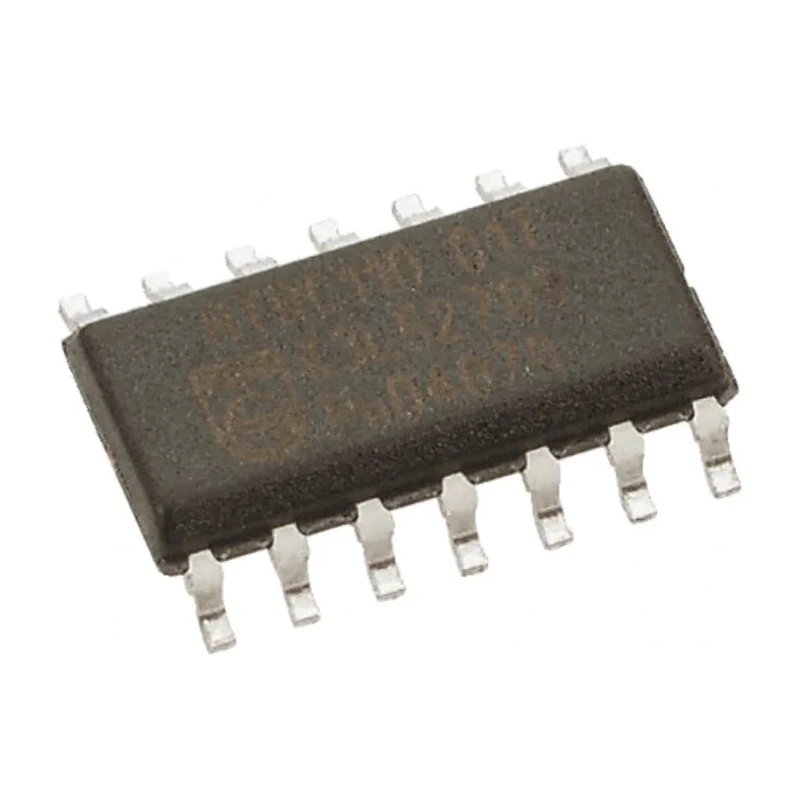

DiodesZetex Operational Amplifier 1 MHz, 5.5 V, 14-Pin SOIC, 4 Channel LMV324BG-13

DiodesZetex LMV324BG-13 is a high-performance operational amplifier designed for a wide range of industrial and electronic applications. It features a gain bandwidth product of 1 MHz with four independent amplifier channels and a surface mount SOIC 14-pin package which enables easy PCB assembly and reduced footprint.

Operating over a wide supply voltage range from 2.7 V to 5.5 V, this amplifier provides flexibility for battery-powered and low-voltage systems. The device maintains low input bias current of 10 nA, low input offset voltage of 7 mV, and a slew rate of 1 V/μs, ensuring clean and stable signal amplification in precision circuits.

Its operational temperature range of -40°C to 125°C allows deployment in harsh environments and various industrial conditions. Compact physical dimensions (8.74 mm × 3.99 mm × 1.45 mm) facilitate integration into space-constrained designs. The LMV324BG-13 belongs to the LMV321/324/358 series, providing proven reliability with standard industrial-grade robustness.

The gain bandwidth product of 1 MHz supports a range of application frequencies. Four channels in a single IC offer multiple signal paths within one package. Surface mount SOIC packaging is optimized for manufacturing efficiency.

Wide operating voltage and temperature ranges enhance versatility. Low input bias and offset currents improve precision measurement accuracy. Compact package size suits modern electronic designs requiring minimal space. Suitable for industrial, electronics, instrumentation, and prototype development.

This Operational Amplifier is ideal for general-purpose amplification tasks in electronics, from signal conditioning in industrial automation to audio amplification in consumer devices. The DiodesZetex LMV324BG-13 provides reliable performance with consistent parameters conforming to industrial standards. EnvMart customers can leverage this IC for improved production efficiency and precise analog signal handling.
