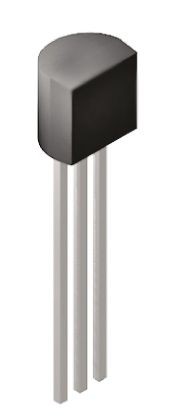

onsemi Small Signal PNP Transistor TO-92, 800 mA, 60 V, 3-Pin PN2907ATAR

onsemi PN2907ATAR is a small signal PNP Bipolar Junction Transistor (BJT) housed in a TO-92 package featuring a 3-pin through-hole mount. It supports a maximum DC collector current of 800 mA and a maximum collector emitter voltage of 60 V, making it suitable for low power switching and amplification tasks in electronics and industrial circuits.

This transistor features a single transistor configuration with a PNP polarity. It has a minimum DC current gain of 75, ensuring good amplification performance. The maximum power dissipation is rated at 625 mW, allowing operation within standard thermal limits.

The device operates over a broad temperature range from -55°C to 150°C, supporting harsh environment applications. It offers a high transition frequency of 100 MHz, enabling high-speed switching and signal processing capabilities.

Physical dimensions include a height of 21.77 mm, length of 5.2 mm, and width of 4.19 mm in the TO-92 package, which is a standard compact format for easy PCB integration with through-hole mounting.

This small signal transistor is widely used for switching and amplification in electronic circuits across telecommunications, consumer electronics, automotive auxiliary circuits, and industrial control systems.

Designed with a PNP transistor polarity and single transistor configuration. Maximum collector emitter voltage rating of 60 V and maximum collector base voltage of 60 V. Supports a maximum power dissipation of 625 mW. Minimum DC current gain (hFE) of 75 for efficient amplification.

Operating temperature range from -55°C to 150°C for wide application suitability. Frequency bandwidth up to 100 MHz for high-speed switching. Compact TO-92 through-hole package with 3 pins and dimensions of approximately 21.77 mm height, 5.2 mm length, and 4.19 mm width.

Suitable for use in small signal amplification and switching circuits in industrial and electronic applications.

This product category includes Bipolar Transistors extensively used in electronics and semiconductor applications, ideal for engineers and manufacturers seeking reliable amplification components.
