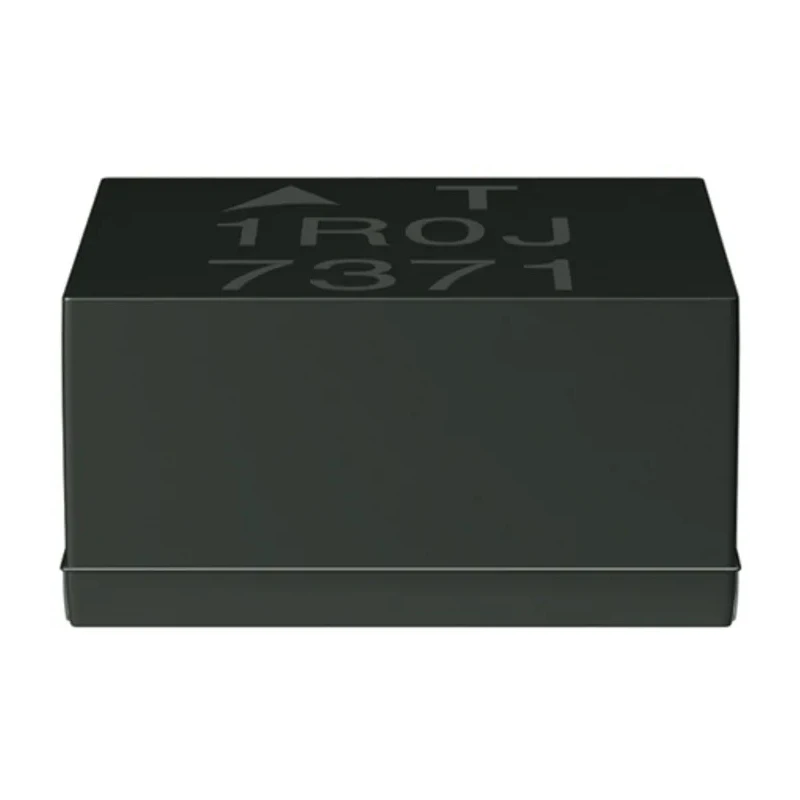

TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 1μH ±10% 400mA Idc Q30 B82422T1102K000

The TDK B82422T1102K000 is a shielded wirewound surface mount inductor featuring a high-quality ferrite core designed for industrial and automotive electronics applications. It delivers a nominal inductance of 1 microhenry (1μH) with a tolerance of ±10%, ensuring reliable performance in demanding conditions.

This inductor comes in a compact 1210 package, measuring 3.2mm in length, 2.0mm in height, and 2.5mm in depth, which supports easy integration onto printed circuit boards using standard surface mount technology with solder termination style. Its wirewound construction combined with ferrite core material provides enhanced magnetic properties and durability.

The device supports a maximum direct current (DC) load of 400mA and is compliant with the automotive AEC-Q200 standard, certifying its robustness and suitability for automotive environments. The shielding feature minimizes electromagnetic interference (EMI), thereby improving signal integrity in sensitive circuitry.

With a high minimum quality factor (Q) of 30 and a maximum self-resonant frequency of 300MHz, the B82422T1102K000 ensures excellent frequency response suitable for filtering, coupling, and decoupling tasks commonly encountered in telecommunications, consumer electronics, and industrial equipment.

Operating over a wide temperature range from -55°C to 125°C, this inductor is RoHS compliant and delivered in tape & reel packaging format, supporting automated production lines. This combination of features makes it an ideal component for applications requiring compact, reliable, and high-performance surface mount inductors.

1μH inductance with ±10% tolerance. Shielded wirewound construction with ferrite core. 1210 package size with 3.2mm x 2.0mm x 2.5mm dimensions. Maximum DC current of 400mA and high Q factor of 30. Compliant with AEC-Q200 automotive standard and RoHS.

Maximum self-resonant frequency of 300MHz. Solder termination style suitable for surface mounting. Operating temperature range from -55°C to 125°C. Packaging in tape & reel for automated assembly.

Widely used in industrial, automotive, telecommunications, and consumer electronic applications, this TDK surface mount inductor offers quality and performance assurance. Explore more Surface Mount Inductors and TDK components on EnvMart.
