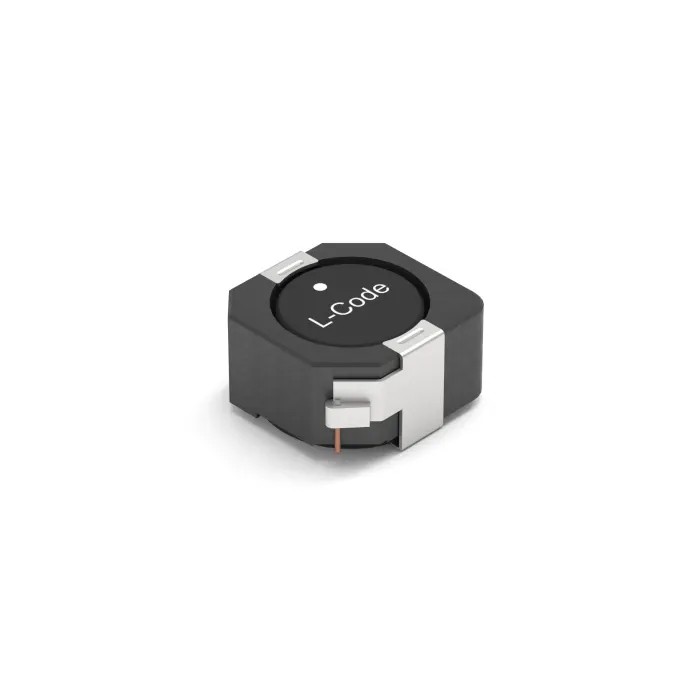

Wurth Elektronik WE-PD 1050 Shielded Wirewound Surface Mount Inductor 22 μH ±20% 3 A Idc 7447714220

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WE-PD 1050 Shielded Wirewound Surface Mount Inductor 22 μH ±20% 3 A Idc 7447714220

Name: Wurth Elektronik WE-PD 1050 Shielded Wirewound Surface Mount Inductor 22 μH ±20% 3 A Idc 7447714220
Brand: Wurth Elektronik
SKU: 370921
Price: 2.37 USD
Availability: InStock



Category Surface Mount Inductor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	5mm
Length	10mm
Depth	10mm
Packaging	Tape & Reel
Series	WE-PD
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Inductance	22μH
Standards/Approvals	IPC/JEDEC J-STD-020D
Package/Case	1050
Maximum DC Current	3A
Maximum DC Resistance	50mΩ
Inductance Tolerance	±20 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	14.5MHz
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200
Murata, D104C Shielded Wire-wound SMD Inductor 22 μH ±20% Wire-Wound 3A IdcBrand	Murata

Key Features

Magnetically shielded wirewound construction minimizes leakage fields.
1050 package size with compact dimensions 10mm length, 5mm height, and 10mm depth.
Meets AEC-Q200 automotive standard for high reliability.
Operates in temperature range -40°C to 125°C.
Maximum DC resistance of 50 milliohm ensures low power loss.
Packaged on tape and reel for automated surface mount assembly.
Maximum self-resonant frequency of 14.5 MHz suitable for high-frequency applications.
Complies with IPC/JEDEC J-STD-020D standards.

Product Description

Wurth Elektronik 7447714220 is a WE-PD series shielded wirewound Surface Mount Inductor offering an inductance of 22 μH with ±20% tolerance, designed for reliable performance in electronic power applications.

This component features magnetic shielding to reduce electromagnetic interference and ensure consistent inductance during operation. Its wirewound construction supports high current handling capability up to 3 amperes DC and has a low DC resistance of 50 milliohm, minimizing energy loss.

Housed in a 1050 package, the inductor’s compact dimensions are 10 mm length, 5 mm height, and 10 mm depth, making it suitable for space-constrained PCB layouts. The product meets the AEC-Q200 automotive qualification standard, ensuring durability under harsh conditions including vibration and thermal cycling.

Its operating temperature range spans from -40°C to 125°C, supporting a wide variety of industrial, automotive, and consumer electronics environments. The device is supplied taped and reeled for efficient SMT assembly processes.

The maximum self-resonant frequency of 14.5 MHz allows usage in high-frequency switching regulator circuits and DC-DC converters, such as those found in graphic cards and other high-efficiency power management systems.

Magnetically shielded wirewound construction minimizes electromagnetic interference. Compact 1050 package with 10mm length, 5mm height, and 10mm depth. AEC-Q200 certified for automotive-grade reliability. Wide operating temperature range from -40°C to +125°C.

Low DC resistance value of 50 milliohm for efficient power handling. Packaged in tape and reel format for surface mount assembly. Maximum self-resonant frequency of 14.5 MHz for high-frequency circuit compatibility. Conforms to IPC/JEDEC J-STD-020D standards.

Ideal for switching power regulators and integrated DC-DC converters.

Suitable for industrial, automotive, and consumer electronic applications requiring efficient power inductors. Explore more Wurth Elektronik inductors and related components at EnvMart for your design and manufacturing needs.
