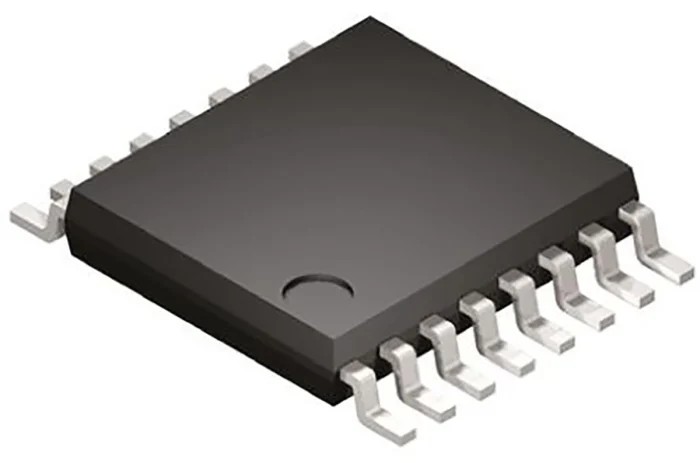

onsemi PLL Frequency Multiplier 1 Output 16-Pin TSSOP 2.97-3.63V NB3N3020DTG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | NB3N3020DTG |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | NB3N3020 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Sub Type | Multipliers/Dividers |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Output Frequency | 210MHz |
| Pin Count | 16 |
| Maximum Supply Voltage | 3.63V |
| Minimum Supply Voltage | 2.97V |
| Output Logic Level | CMOS |
Key Features
- Operates with a single output signal and supports CMOS input and output logic levels.
- Designed for reliable operation over a temperature range of -40°C to 85°C.
- Compact dimensions of 5.1mm length, 4.5mm width, and 1.05mm height enable easy PCB integration.
- Ideal for applications requiring precise frequency multiplication with a maximum input frequency of 210MHz.
- Utilizes phase-locked loop (PLL) technology for stable frequency synthesis.
- Suitable for clock synchronization and timing applications in electronic systems.
- The NB3N3020 series ensures low power consumption and high performance.
Product Description
onsemi NB3N3020DTG PLL Frequency Multiplier is a semiconductor component designed to multiply input frequencies with high precision. This part features a 16-Pin TSSOP surface mount package with CMOS input and output logic, supporting supply voltages from 2.97V to 3.63V. The device delivers a maximum output frequency of 210MHz, making it suitable for advanced clock synthesizer applications.
Engineered by onsemi, the NB3N3020DTG device offers reliable operation in temperatures ranging from -40°C to 85°C and compact physical dimensions of 5.1mm length, 4.5mm width, and 1.05mm height. It provides a single output channel and adheres to industry standards without specific automotive certifications.
This frequency multiplier employs phase-locked loop (PLL) technology for accurate frequency scaling, enhancing signal integrity in communication, industrial, and electronic instrumentation applications.
Operates with a single output signal and supports CMOS input and output logic levels. Designed for reliable operation over a temperature range of -40°C to 85°C. Compact dimensions of 5.1mm length, 4.5mm width, and 1.05mm height enable easy PCB integration.
Ideal for applications requiring precise frequency multiplication with a maximum input frequency of 210MHz. Utilizes phase-locked loop (PLL) technology for stable frequency synthesis. Suitable for clock synchronization and timing applications in electronic systems.
The NB3N3020 series ensures low power consumption and high performance.
This component is essential in electronic manufacturing, telecommunications, signal processing, and instrumentation industries for creating synchronized clocks and frequency signals. Choose onsemi NB3N3020DTG for dependable frequency multiplication in your design.
Explore more high-quality clock synthesizers and semiconductor components in the Electronics & Electricals category at EnvMart.
Explore more products in our Frequency Multipliers & Dividers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output frequency of this model is 210MHz, making it suitable for advanced clock synthesizer applications.
It operates with a supply voltage range of 2.97V to 3.63V.
The dimensions are 5.1mm in length, 4.5mm in width, and 1.05mm in height, allowing for easy PCB integration.
This unit supports CMOS input and output logic levels.
It is designed to operate reliably over a temperature range of -40°C to 85°C.
This frequency multiplier provides a single output channel.
The NB3N3020DTG is packaged in a 16-pin TSSOP surface mount configuration.
It utilizes phase-locked loop (PLL) technology for stable frequency synthesis.
It is suitable for clock synchronization and timing applications in electronic systems, telecommunications, and signal processing.
The country of origin for this model is India.
The NB3N3020DTG features a pin count of 16.
This model belongs to the NB3N3020 series of frequency multipliers.
