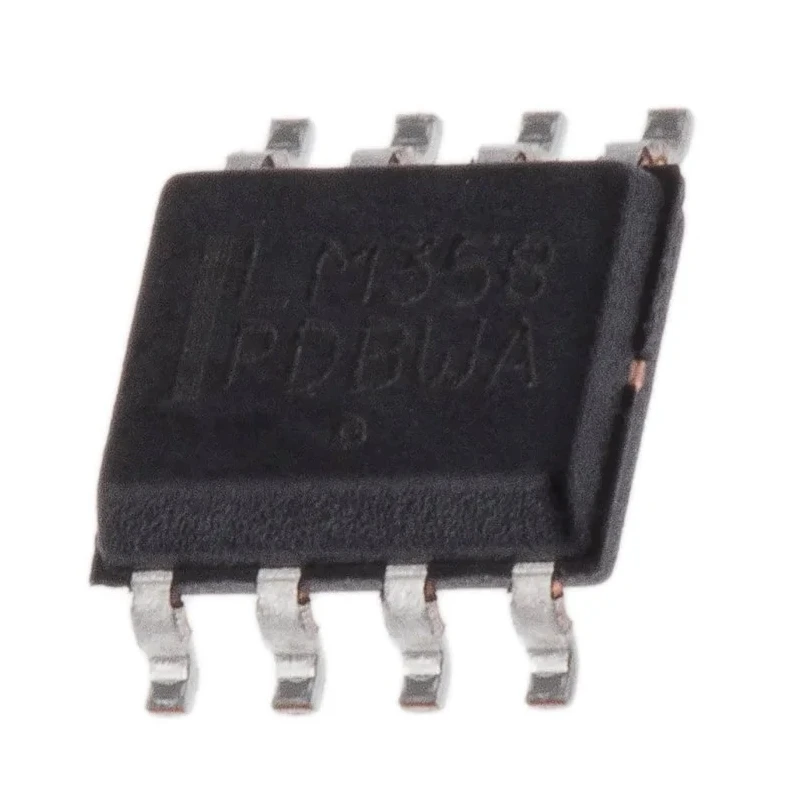

onsemi Operational Amplifier, Dual Channel, 1 MHz Gain Bandwidth, 3V-32V, 8-Pin SOIC LM358ADR2G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Operational Amplifier, Dual Channel, 1 MHz Gain Bandwidth, 3V-32V, 8-Pin SOIC LM358ADR2G

Name: onsemi Operational Amplifier, Dual Channel, 1 MHz Gain Bandwidth, 3V-32V, 8-Pin SOIC LM358ADR2G
Brand: onsemi
SKU: 374130
Price: 0.2 USD
Availability: InStock



Category Operational Amplifier Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.5mm
Length	5mm
Model	LM358ADR2G
Width	4mm
Mount Type	Surface
Series	LM358
Output Current	40mA
Maximum Operating Temperature	70°C
Package Type	SOIC
Minimum Operating Temperature	0°C
Number Of Channels	2
Standards/Approvals	RoHS
Pin Count	8
Automotive Standard	AEC-Q100
Maximum Supply Voltage	32V
Minimum Supply Voltage	3V
GBP - Gain Bandwidth Product	1MHz
Input Bias Current	-100 nA
Vos - Input Offset Voltage	3 mV
Slew Rate	0.6V/μs
Input Offset Current	75 nA
Single Supply Operation	3V - 32V

Key Features

Operates with single supply voltage range from 3V to 32V.
Features low input bias currents and internal compensation.
Includes ESD clamps on all input pins for enhanced durability.
Common mode input range extends to negative supply voltage.
Output voltage range includes negative power supply voltage.
Has a gain bandwidth product (GBP) of 1 MHz and slew rate of 0.6 V/μs.
Complies with RoHS standards and AEC-Q100 automotive standard.
Operating temperature range from 0°C to 70°C suitable for various applications.

Product Description

onsemi LM358ADR2G is a dual operational amplifier designed for surface mount applications, packaged in an 8-pin SOIC with dimensions 5mm by 4mm by 1.5mm. It features a gain bandwidth of 1 MHz, making it suitable for precise amplification tasks in electronic circuits.

Operating from a single supply voltage as low as 3V up to 32V, this amplifier supports a broad range of industrial and commercial applications, including integrators, comparators, voltage clamps, current regulators, and linear voltage regulators. The device includes true differential inputs with a common mode range extending to the negative supply, minimizing the need for additional biasing components.

The LM358ADR2G integrates internally compensated circuitry to ensure stability and low input bias currents, contributing to efficient and reliable operation. Additionally, ESD clamps across input pins augment device protection against electrostatic discharges, extending longevity and robust performance in demanding environments.

Compliant with RoHS standards and meeting the automotive AEC-Q100 certification, this operational amplifier is engineered for applications requiring automotive-grade reliability and quality. It operates effectively between 0°C to 70°C, ensuring stability under typical industrial temperature conditions.

Operates with single supply voltage from 3V to 32V. Dual operational amplifier with true differential inputs. Internally compensated for stability and low input bias currents. ESD protection clamps on input pins for enhanced durability.

Common mode input range includes negative supply voltage. Gain bandwidth product of 1 MHz and slew rate of 0.6 V/μs. 8-pin SOIC package measuring 5mm × 4mm × 1.5mm. Meets RoHS and AEC-Q100 automotive standards. Operational temperature range: 0°C to 70°C.

This onsemi Operational Amplifier is ideal for use in industrial electronics, automotive systems, laboratory instrumentation, and other robust environments requiring high reliability and precision. Its compact SOIC package facilitates easy integration into compact circuit designs. Explore EnvMart for more semiconductor amplifiers and electronic components.
