onsemi Schottky Diode 45 V 8 A Through Hole DO-201AD 2-Pin 80SQ045NRLG

Free Delivery in India | Lowest Global Shipping Charges

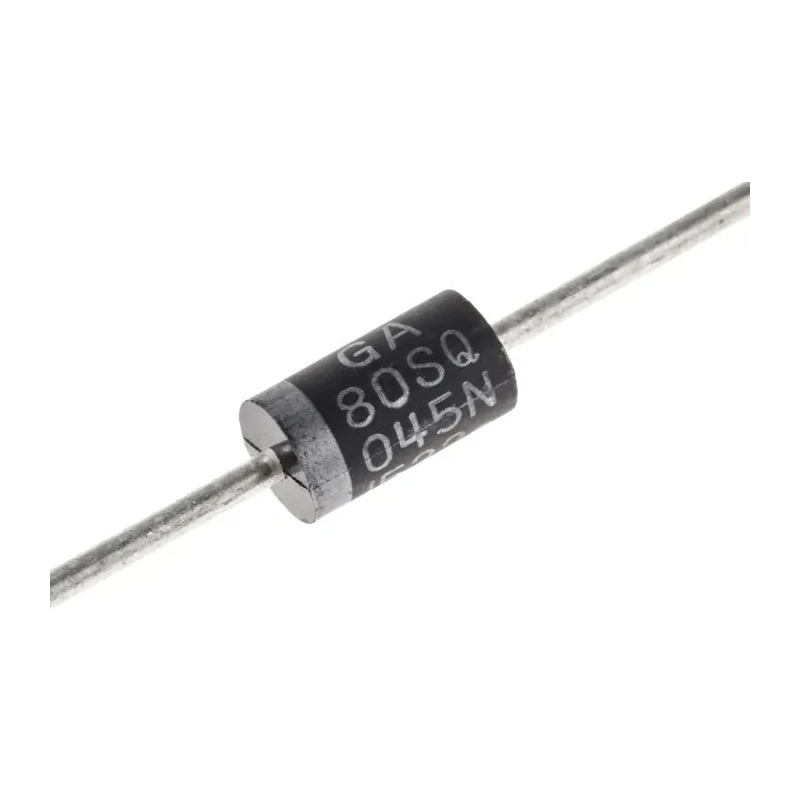

onsemi Schottky Diode 45 V 8 A Through Hole DO-201AD 2-Pin 80SQ045NRLG

Name: onsemi Schottky Diode 45 V 8 A Through Hole DO-201AD 2-Pin 80SQ045NRLG
Brand: onsemi
SKU: 373161
Price: 0.68 USD
Availability: InStock



Category Schottky Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Diameter	5.3mm
Brand	onsemi
Height	9.5mm
Model	80SQ045NRLG
Mount Type	Through Hole
Series	80SQ045N
Maximum Operating Temperature	125°C
Package Type	DO-201AD
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	8A
Peak Reverse Repetitive Voltage Vrrm	45V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	50mA
Peak Non-Repetitive Forward Surge Current Ifsm	140A
Maximum Forward Voltage Vf	550mV
onsemi 45 V 8 A Diode Schottky 2-Pin DO-41 80SQ045NGBrand	onsemi

Key Features

The diode features a maximum forward voltage of 550 mV for efficient power rectification.
Designed for high-frequency, low voltage applications requiring fast switching and low forward voltage drop.
Operates reliably within a temperature range from -65°C to 125°C, ensuring durability under extreme conditions.
Compact DO-201AD plastic moulded package measuring 9.5 mm height and 5.3 mm diameter provides space-efficient mounting.
Peak non-repetitive forward surge current rating of 140 A supports transient surges.
Low peak reverse current of 50 mA ensures minimal leakage and power loss.
Lead-through hole mount type allows for robust mechanical and electrical connection on PCB assemblies.
Epoxy moulded case protects the diode from environmental damage and mechanical stress.

Product Description

onsemi 80SQ045NRLG Schottky Diode is a high-performance discrete semiconductor device designed for efficient power rectification in industrial and commercial electronic applications. It is packaged in a DO-201AD plastic through hole form factor that supports easy PCB mounting and soldering. This diode offers a maximum continuous forward current of 8 A and peak repetitive reverse voltage of 45 V, making it suitable for low voltage and high frequency circuits.

The Schottky barrier technology employed delivers a low forward voltage drop of 550 mV, enhancing energy efficiency by reducing power losses. It supports a wide operating temperature range from -65°C to 125°C, meeting demands in environments requiring thermal stability. The diode also exhibits a low peak reverse current of 50 mA ensuring minimal leakage during blocking operation.

Mechanically rugged with a height of 9.5 mm and diameter of 5.3 mm, the epoxy moulded case protects against mechanical shock and environmental stress. The diode withstands peak non-repetitive forward surge currents of up to 140 A, protecting circuits from transient conditions.

This component is suitable for diverse industrial uses including power supply rectification, freewheeling diodes in motor controls, voltage clamping, and polarity protection in automotive and industrial electronics.

The diode delivers efficient low voltage, high frequency rectification capabilities. Thermally stable across -65°C to 125°C for reliable industrial operation. Robust DO-201AD package offers durable mounting and environmental protection.

Low forward voltage drop of 550 mV enhances power efficiency. Supports high surge currents up to 140 A peak non-repetitive rating. Minimal reverse leakage current reduces energy waste and improves reliability. Epoxy moulded for mechanical and environmental stress protection.

Through hole mount type for secure PCB assembly.

Explore the extensive range of semiconductor diodes and rectify your power electronics needs with onsemi products at EnvMart. Browse categories or contact support to find compatible components for your application.
