onsemi Schottky Diode 45 V 8 A Through Hole DO-201AD 80SQ045NRLG

Free Delivery in India | Lowest Global Shipping Charges

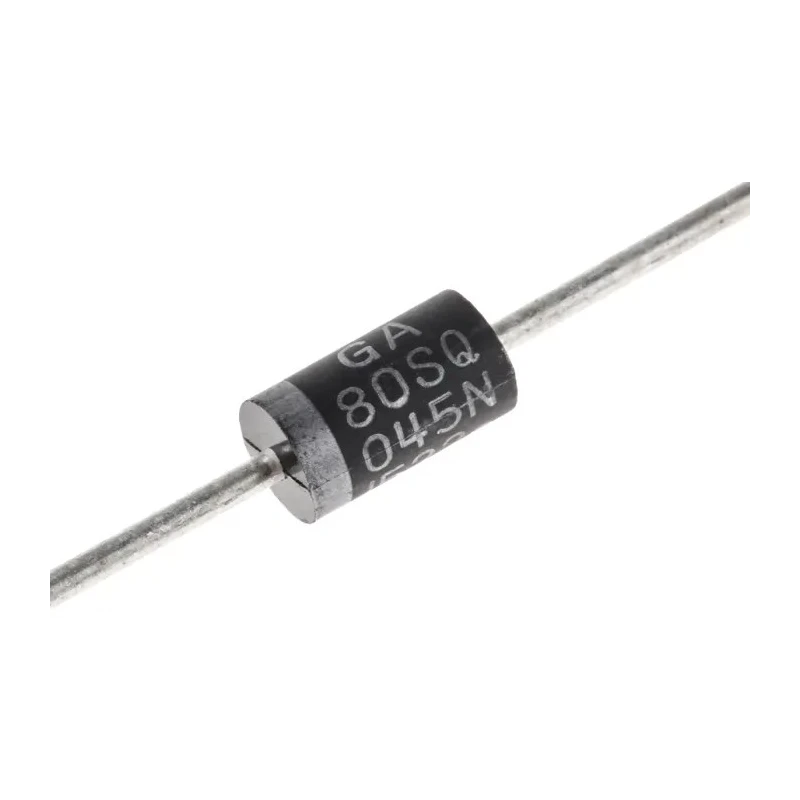

onsemi Schottky Diode 45 V 8 A Through Hole DO-201AD 80SQ045NRLG

Name: onsemi Schottky Diode 45 V 8 A Through Hole DO-201AD 80SQ045NRLG
Brand: onsemi
SKU: 373158
Price: 0.58 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand onsemi Condition New

Specifications

Country of Origin	India
Diameter	5.3mm
Brand	onsemi
Height	9.5mm
Model	80SQ045NRLG
Mount Type	Through Hole
Series	80SQ045N
Maximum Operating Temperature	125°C
Package Type	DO-201AD
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	8A
Peak Reverse Repetitive Voltage Vrrm	45V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	50mA
Peak Non-Repetitive Forward Surge Current Ifsm	140A
Maximum Forward Voltage Vf	550mV

Key Features

This diode features a through-hole mount type for easy PCB installation.
The DO-201AD package offers a compact, epoxy moulded case with lightweight construction.
It provides maximum continuous forward current of 8 A and peak reverse repetitive voltage of 45 V.
The diode exhibits a low maximum forward voltage of 550 mV, improving efficiency.
It is suitable for high surge currents with a peak non-repetitive forward surge current of 140 A.
Operating temperature ranges from -65°C minimum to 125°C maximum.
The diode has a height of 9.5 mm and diameter of 5.3 mm, suitable for industrial electronic applications.
Designed using Schottky barrier principle, ensuring fast switching and low losses.

Product Description

onsemi 80SQ045NRLG Schottky Diode is a 2-pin, through-hole mounted component designed for effective low-voltage and high-frequency electronic applications. This Schottky power rectifier uses a barrier metal to offer an optimized balance between forward voltage drop and reverse current.

With a maximum continuous forward current of 8 A and peak reverse repetitive voltage of 45 V, it is ideal for power rectification, freewheeling, and polarity protection duties. The compact DO-201AD epoxy moulded package provides a lightweight and rugged solution, reducing size and weight in intricate circuits.

The diode offers a maximum forward voltage of 550 mV and can tolerate surge currents up to 140 A, making it suitable for demanding environments. Its operating temperature range from -65°C to 125°C ensures reliable performance under a wide spectrum of conditions.

Measuring 9.5 mm in height and 5.3 mm in diameter, this single configuration diode is well-suited for industrial, commercial, and laboratory use where automated assembly and compact form are critical.

This diode supports optimized automated insertion and assembly processes. The Pb-Free construction complies with environmental regulations and industry standards. It is not automotive standard qualified but designed for robust industrial use.

The lightweight package weighing approximately 11.7 mg promotes ease of handling in manufacturing lines. Applications include power supply rectification, switching circuit protection, and other semiconductor discrete component uses.

This diode is part of the 80SQ045N series, known for quality and reliability. The product is ideal for electronic equipment manufacturing, prototype development, repair, and replacement parts in power electronics and semiconductor assemblies.

Explore more Schottky diodes and rectifiers in the Electronics & Electricals catalog on EnvMart for related products and technical solutions.

Explore more products in our Schottky Diodes & Rectifiers category.
