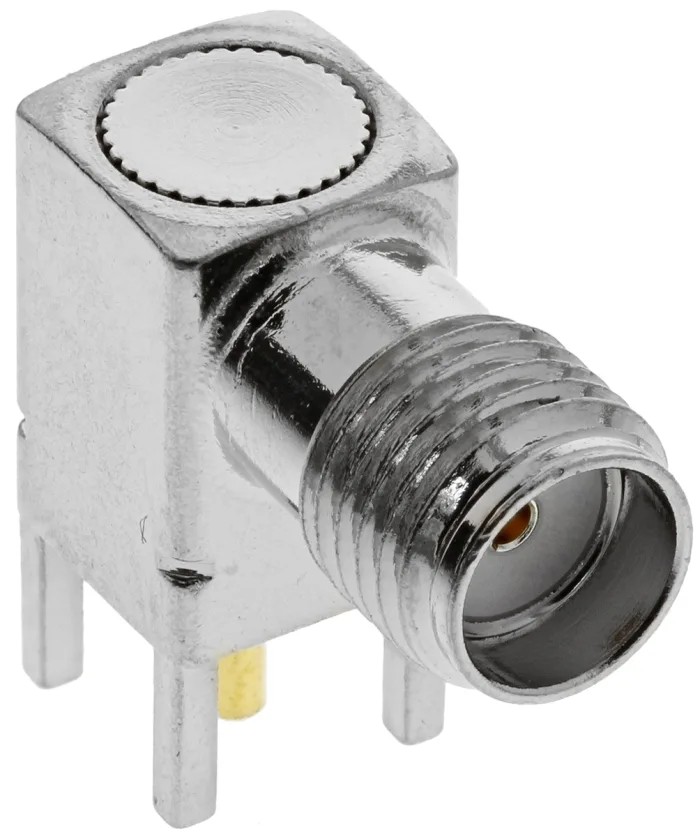

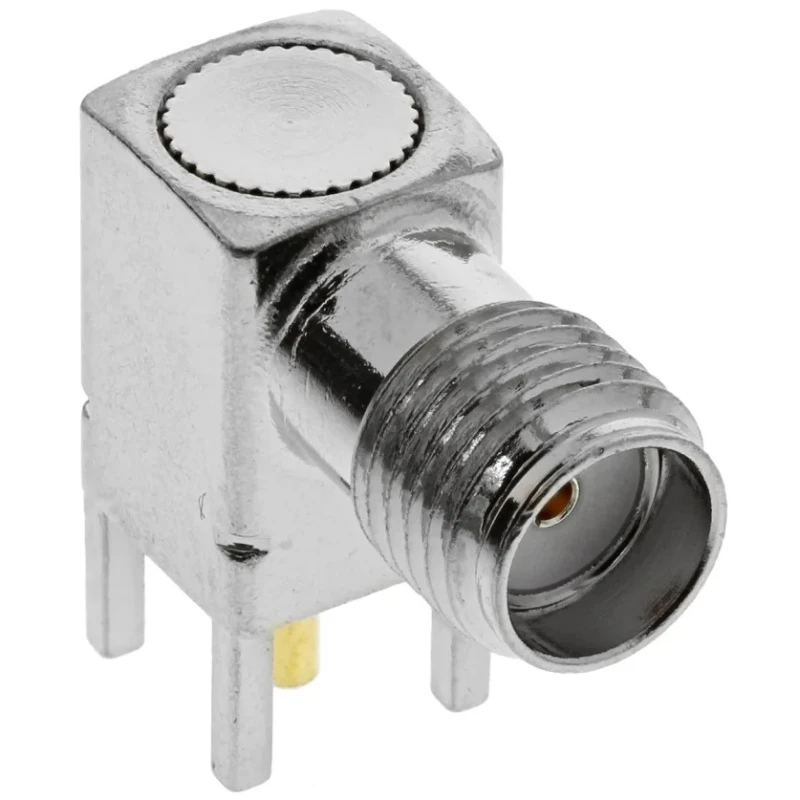

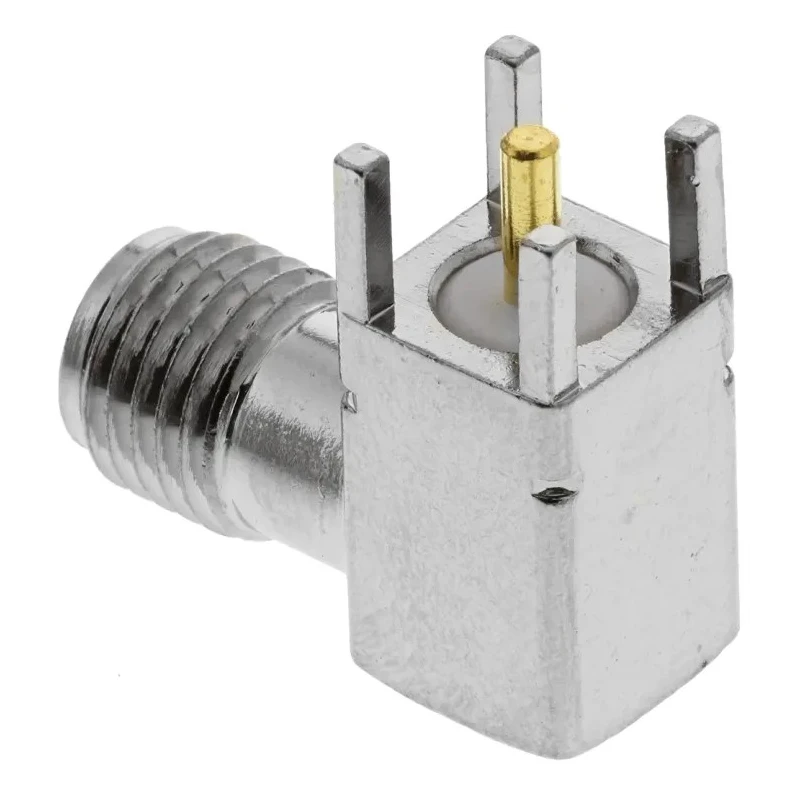

Molex SMA Series Coaxial Connector PCB Female SMA 50 Ω Right Angle Body Solder 73100-0115
Specifications
| Country of Origin | India |
|---|---|
| Size | Subminiature |
| Brand | Molex |
| Orientation | Right Angle |
| Mount Type | PCB |
| Operating Frequency | 12.4GHz |
| Contact Material | Brass |
| Series | SMA |
| Termination Type | Solder |
| Maximum Operating Temperature | 260°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Nickel |
Key Features
- The right-angle design simplifies PCB layout and optimizes space management.
- 50 Ω impedance maintains signal integrity in RF communications.
- Constructed with a brass body and nickel plating for corrosion resistance.
- Gold-plated female contacts ensure excellent signal transmission efficiency.
- Capable of operating at frequencies up to 12.4 GHz, suitable for RF and microwave circuits.
- Designed for solder termination compatible with lead-free soldering up to 260°C.
- Recommended PCB thickness is 3.20 mm for optimal mounting performance.
- RoHS compliant and low-halogen to meet environmental standards.
Product Description
Molex 73100-0115 SMA Series Coaxial Connector is a female coaxial connector with a right angle body designed for PCB mounting applications. This connector provides a 50 Ω impedance and supports high-frequency operation up to 12.4 GHz, making it ideal for use in industrial, telecommunication, laboratory, and manufacturing environments.
The connector features a durable brass body with nickel plating which provides excellent corrosion resistance and mechanical strength. The gold-plated female contacts enhance signal transmission performance by reducing contact resistance and ensuring consistent conductivity.
The solder termination type enables reliable and robust connections on printed circuit boards, supporting lead-free soldering processes with a maximum operating temperature of 260°C. Recommended PCB thickness for proper installation is 3.20 mm, which assists in securing and stabilizing the connector.
This product complies with RoHS directives and maintains a low halogen content, aligning with modern environmental requirements for electronic components. The right-angle configuration improves PCB layout and space efficiency.
The 50 Ω impedance is engineered to support signal integrity in RF applications. Nickel plating on the brass body offers long-lasting protection against wear and corrosion. Gold-plated contacts significantly improve electrical performance and reliability.
Capable of use in RF and microwave circuits, ensuring versatile industrial applicability. Solder termination facilitates easy and secure PCB mounting. Supports telecommunications, data transmission systems, and automated testing environments.
Compatible with various electronic devices that require PCB-mounted Coaxial Connectors. This Molex SMA Series Connector is an excellent choice for applications demanding high performance, durability, and compact form factor.
Explore more connectors and accessories in the Electronics Components section on EnvMart for precise and reliable electronic interconnections.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports operation at frequencies up to 12.4 GHz, making it suitable for RF and microwave circuits.
It features a solder termination type, allowing for reliable connections on printed circuit boards.
The connector has an impedance of 50 Ω, which is essential for maintaining signal integrity in RF applications.
It is constructed with a brass body and nickel plating, while the contacts are gold-plated to enhance signal transmission efficiency.
The recommended PCB thickness for this connector is 3.20 mm, which aids in securing and stabilizing the connector during installation.
This product is RoHS compliant and has low halogen content, meeting modern environmental standards for electronic components.
The connector features a right-angle orientation, which simplifies PCB layout and optimizes space management.
It can operate with lead-free soldering processes at a maximum temperature of 260°C.
It is suitable for use in telecommunications, data transmission systems, and automated testing environments.
This connector has a female contact gender, making it compatible with male connectors in various applications.
The body of this connector is plated with nickel, providing corrosion resistance and mechanical strength.
This connector is part of the Molex SMA Series, designed specifically for coaxial applications.
