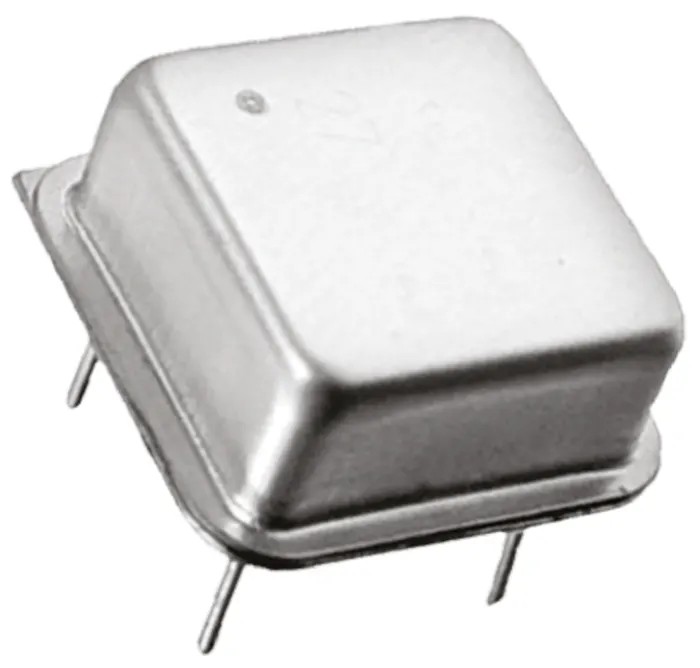

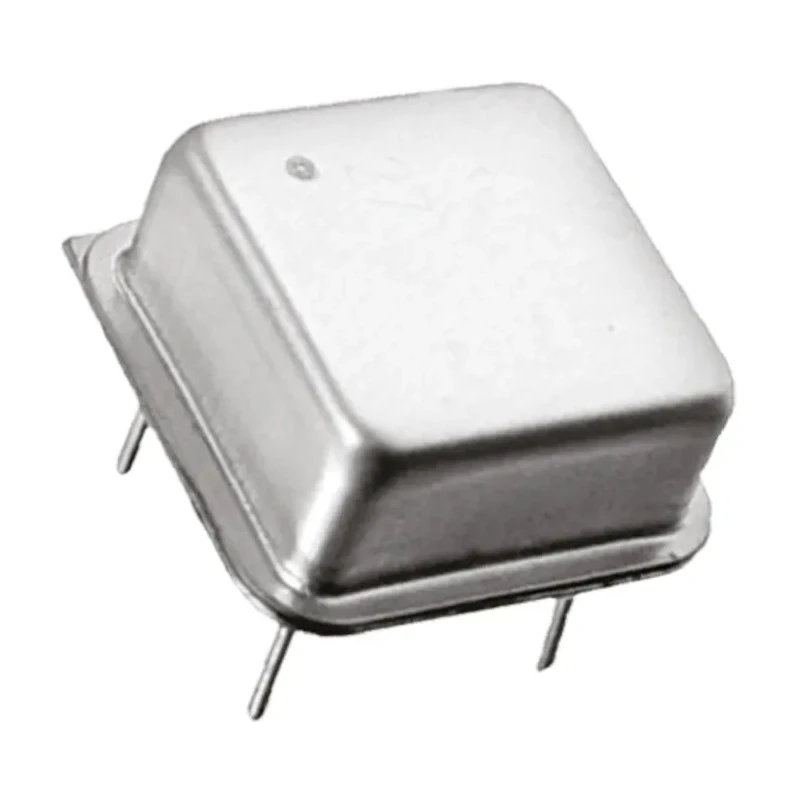

QANTEK 16MHz Clock Oscillator ±50 ppm HCMOS 8-Pin PDIP QX8T50B16.00000B50TT
Specifications
| Country of Origin | China |
|---|---|
| Brand | QANTEK |
| Height | 5.08mm |
| Length | 13.21mm |
| Model | QX8T50B16.00000B50TT |
| Packaging | Tube |
| Width | 13.21mm |
| Mount Type | Through Hole |
| Series | QX8 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 16MHz |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5V |
| Load Capacitance | 50pF |
| Oscillator Type | Clock |
| Output Level | HCMOS |
| IQD, 16MHz Crystal Oscillator, ±100ppm HCMOS, TTL, 8-Pin PDIP LFSPXO003182Brand | IQD |
Key Features
- Operates at a precise 16MHz frequency with a stability of ±50 ppm.
- Industry-standard 8-pin Dual In-Line Package (PDIP) enabling through-hole mounting.
- HCMOS output level ensures high-speed digital compatibility.
- Supports a maximum supply voltage of 5V with a load capacitance of 50pF.
- Wide operating temperature range from -40°C to 85°C suitable for various industrial applications.
- Hermetically sealed package ensuring reliability and reduced aging over time.
- Tristate enable/disable function offers control flexibility in circuit designs.
- Compact dimensions of 13.21mm length, 13.21mm width, and 5.08mm height.
Product Description
QANTEK QX8T50B16.00000B50TT is a precision 16MHz clock oscillator designed for electronic circuit applications requiring highly stable timing signals. Featuring ±50 ppm frequency stability, this oscillator delivers consistent clock pulses essential for reliable digital system performance.
Housed in a standard 8-pin PDIP package, this device supports through-hole mounting with a load capacitance of 50pF, making it compatible with a wide range of PCB designs. Its HCMOS output level enables interfacing with high-speed digital electronics.
The oscillator operates within a voltage supply up to 5V and tolerates a broad temperature spectrum from -40°C to 85°C, suitable for industrial, laboratory, and manufacturing environments.
The hermetically sealed packaging ensures enhanced reliability by protecting the internal crystal from environmental factors, reducing aging effects and prolonging operational lifespan.
A convenient tristate function allows enable/disable control of the output, enhancing design flexibility in complex timing systems. Operates at 16MHz frequency with ±50 ppm stability. Standard 8-pin PDIP package suitable for through-hole mounting.
HCMOS output ensures compatibility with high-speed digital circuits. Maximum supply voltage rating of 5V with 50pF load capacitance. Operating temperature range from -40°C to 85°C supports industrial use. Hermetically sealed for increased durability and reduced aging.
Includes tristate function for output control. Compact size of 13.21mm x 13.21mm x 5.08mm. RoHS compliant for environmental safety. Manufactured in China ensuring quality standards.
This clock oscillator is ideal for use in industrial electronics, laboratory instrumentation, manufacturing equipment, and other applications demanding precision timing. Its robust construction and stable performance make it a reliable component choice for embedded system designs and digital circuit boards.
Explore more Oscillators and electronic components in the Electronics Components category at EnvMart for your technical and industrial project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this oscillator is 16MHz.
It has a frequency stability rating of ±50 ppm.
The maximum supply voltage rating is 5V.
This oscillator supports a load capacitance of 50pF.
The operating temperature range is from -40°C to 85°C.
It comes in an 8-pin Dual In-Line Package (PDIP) suitable for through-hole mounting.
The output level of this oscillator is HCMOS, ensuring compatibility with high-speed digital electronics.
Yes, it includes a tristate enable/disable function for output control.
The dimensions are 13.21mm in length, 13.21mm in width, and 5.08mm in height.
Yes, it is RoHS compliant, ensuring environmental safety.
This oscillator is suitable for industrial electronics, laboratory instrumentation, and manufacturing equipment requiring precise timing.
It is manufactured in China.
