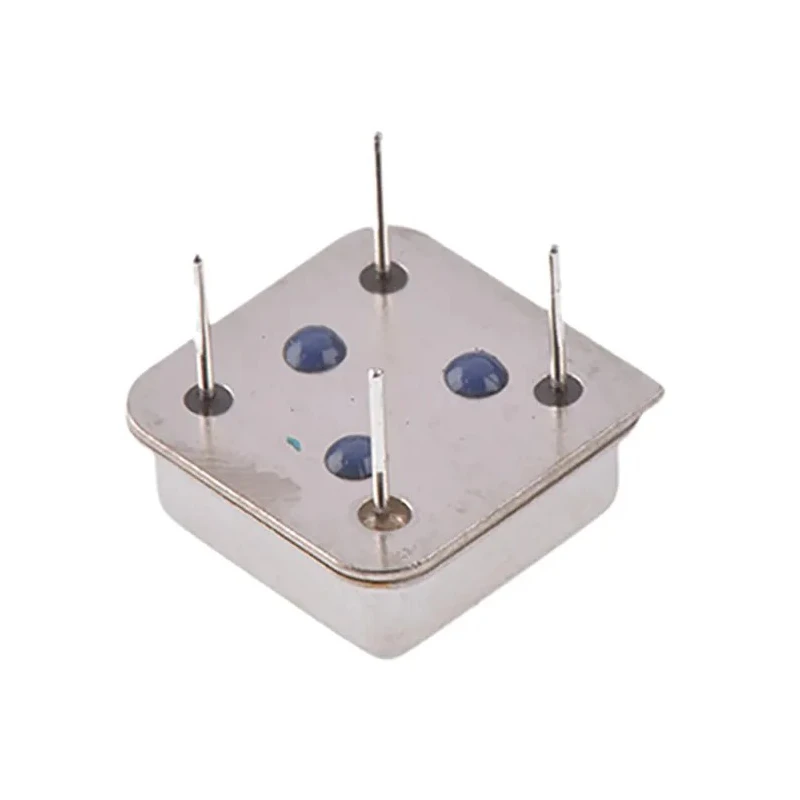

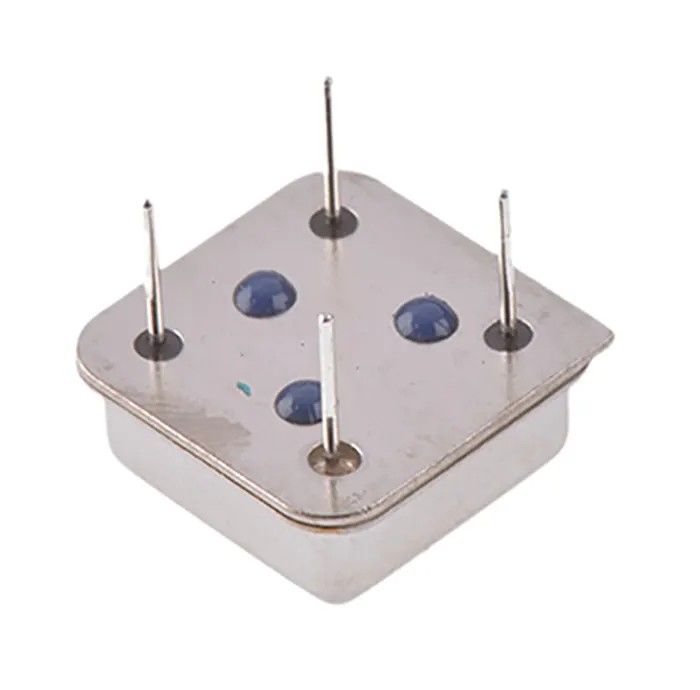

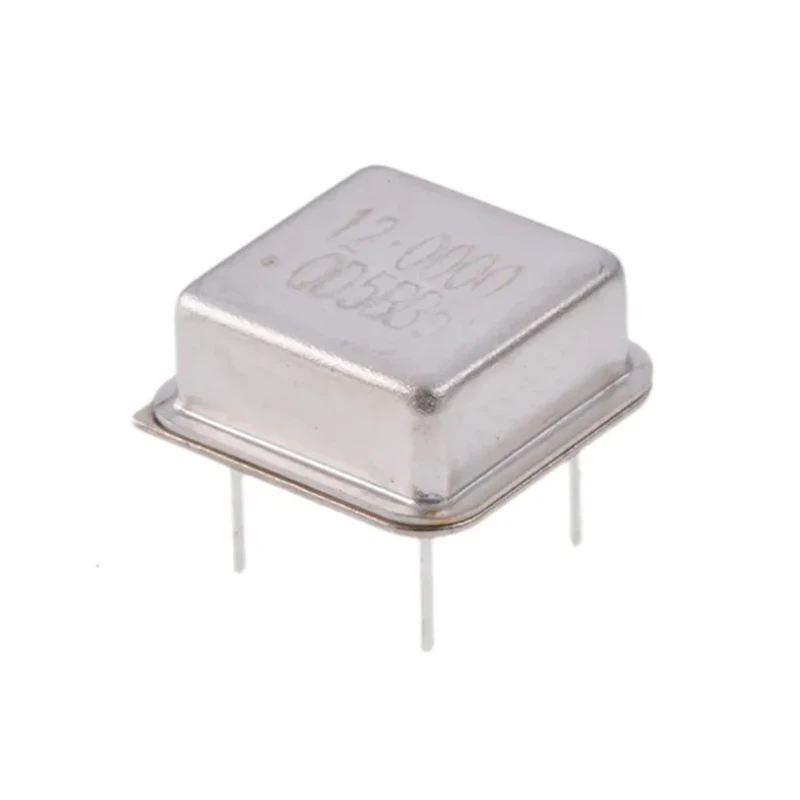

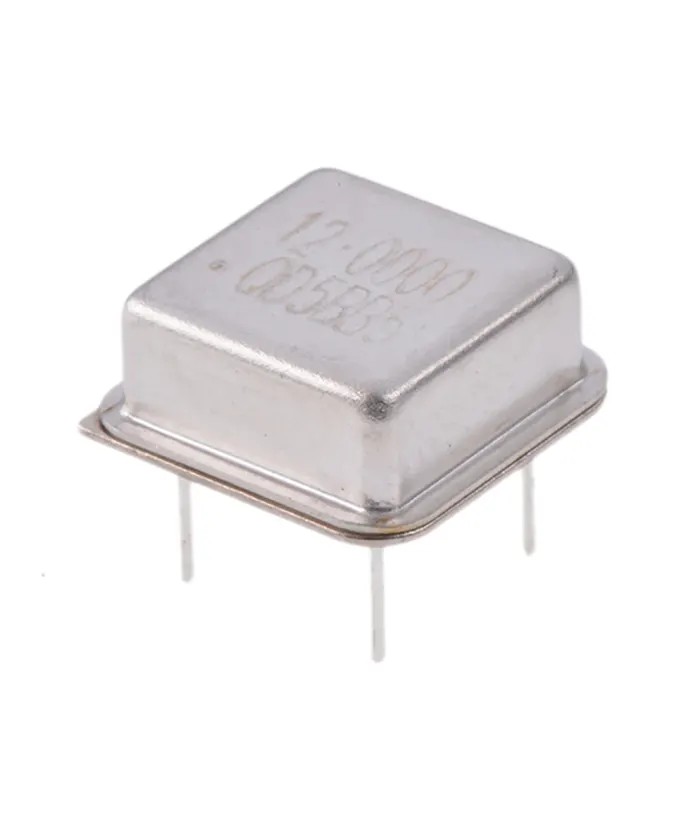

QANTEK 12MHz XO Oscillator ±50 ppm HCMOS 8-Pin PDIP QX8T50B12.00000B50TT

The QANTEK QX8T50B12.00000B50TT is a high-performance 12MHz crystal oscillator designed for electronic applications requiring accurate timing signals. It features an XO oscillator type with an output frequency of 12MHz and a frequency stability of ±50 ppm, ensuring consistent and reliable operation in various industrial and commercial electronics.

This oscillator utilizes HCMOS output technology, suitable for interfacing with modern digital circuits and microcontrollers. It is housed in an 8-pin PDIP (Plastic Dual In-Line Package) with industry-standard dimensions (13.21 mm length and width, 5.08 mm height) for compatibility with through-hole PCB mounting.

Engineered with a hermetically sealed package, this oscillator offers low aging characteristics and enhanced environmental protection to maintain accuracy over long durations. Its operating temperature range from -40°C to 85°C supports applications in harsh industrial and automotive environments. The device supports a maximum supply voltage of 5V, making it compatible with standard logic power rails.

Additional features include a tristate function to enable or disable the oscillator output as required, and a load capacitance of 50pF to match various circuit designs. The product complies with RoHS standards, confirming it is manufactured with environmentally conscious processes.

Typical use cases for this oscillator include embedded systems, communication equipment, timing circuits in industrial automation, laboratory test instruments, and other commercial electronics requiring precise clock signals.

Industry-standard 8-pin DIL package for easy mounting. Stable frequency output of 12MHz with ±50 ppm accuracy. Wide operating temperature range from -40°C to 85°C. Hermetically sealed construction ensuring durability and low aging.

5V maximum supply voltage compatible with common digital circuits. Tristate enable/disable output functionality for flexible control. Load capacitance of 50pF for circuit adaptability. HCMOS output level suited for modern logic devices.

RoHS compliant for environmentally safe manufacturing.

This QANTEK oscillator represents a reliable component choice for precision timing needs in electronic design and manufacturing. Shop EnvMart’s extensive catalog for quality electronic components and Oscillators to support your PCB assembly and product development requirements.
