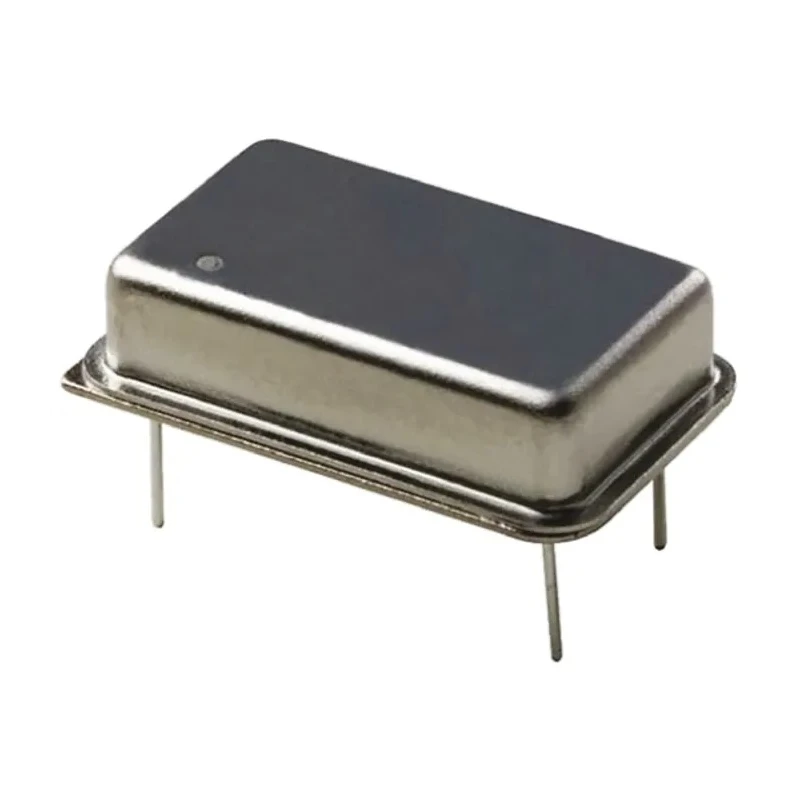

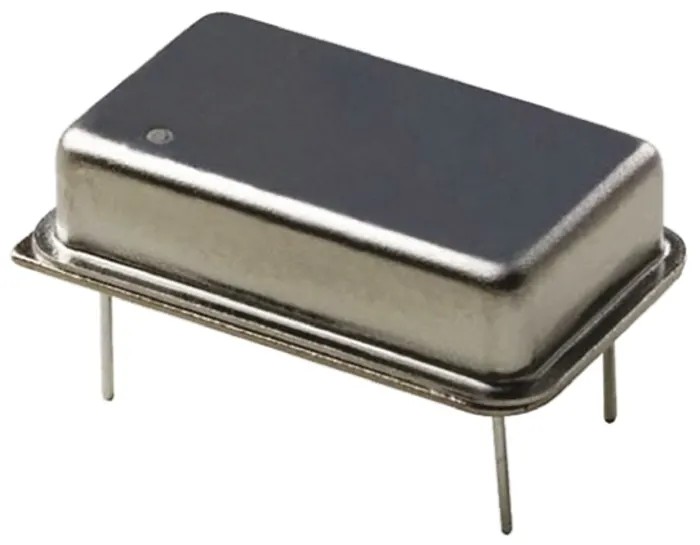

QANTEK 40MHz Clock Oscillator ±50 ppm HCMOS 14-Pin DIP-14 QX14T50B40.00000B50TT
Specifications
| Country of Origin | China |
|---|---|
| Brand | QANTEK |
| Height | 5.08mm |
| Length | 20.8mm |
| Model | QX14T50B40.00000B50TT |
| Packaging | Tube |
| Width | 13.2mm |
| Mount Type | Through Hole |
| Series | QX14 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 40MHz |
| Package Type | DIP-14 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5V |
| Load Capacitance | 50pF |
| Oscillator Type | Clock |
| Output Level | HCMOS |
| QANTEK, 40MHz XO Oscillator, ±50 ppm HCMOS, 8-Pin PDIP QX8T50B40.00000B50TTBrand | QANTEK |
Key Features
- Offers a 40MHz output frequency for precise clocking needs.
- Features ±50 ppm frequency stability ensuring reliable performance.
- HCMOS output level compatible with diverse electronic circuits.
- Encased in an industry-standard 14-pin dual in-line package for easy integration.
- Supports a maximum supply voltage of 5V for compatible electronic devices.
- Has a load capacitance of 50pF to maintain signal integrity.
- Operates effectively within temperatures ranging from -40°C to 85°C.
- Provides through-hole mount type for stable PCB installation.
Product Description
The QANTEK QX14T50B40.00000B50TT is a high-quality 40MHz clock oscillator designed to deliver precision timing in electronic applications. It features a ±50 ppm frequency stability and HCMOS output level, making it suitable for a wide range of industrial and commercial electronics requiring accurate clock signals.
This oscillator comes in a 14-pin dual in-line (DIP) package that ensures compatibility with standard PCB layouts, making installation straightforward. Its hermetically sealed package provides enhanced reliability and long-term stability by minimizing aging effects and environmental influences.
Operating over a temperature range from -40°C to 85°C and supporting a maximum supply voltage of 5V, this oscillator is ideal for industrial environments and temperature-variable conditions. It utilizes a 50pF load capacitance ensuring clean signal output and minimizes distortion. The device is mounted through-hole to provide robust mechanical connection and reliability in demanding applications.
This QX14 series oscillator also includes a tristate function, enabling enable/disable operations for dynamic circuit control. Its rugged design and certified RoHS compliance highlight both quality and environmental consideration.
Offers a 40MHz output frequency for precise clocking needs. Features ±50 ppm frequency stability ensuring reliable performance. HCMOS output level compatible with diverse circuits. Industry-standard 14-pin DIP package for easy integration.
Maximum supply voltage of 5V for versatile usage. Load capacitance of 50pF for signal integrity. Wide operating temperature range from -40°C to 85°C. Through-hole mounting for secure PCB installation. Hermetically sealed package for enhanced reliability.
Compliant with RoHS standards ensuring environmental safety.
This oscillator suits applications in industrial electronics, telecommunications, computing devices, and other fields requiring consistent timing performance. It provides designers with a reliable and precise clock source that meets rigorous operational demands.
Explore a wide range of Oscillators and other electronic components available at EnvMart for advanced electronic system design and development.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The QANTEK QX14T50B40.00000B50TT clock oscillator has an output frequency of 40MHz.
This oscillator features a frequency stability of ±50 ppm, ensuring reliable performance in various applications.
The maximum supply voltage for this model is 5V, making it suitable for a range of electronic devices.
It has a load capacitance of 50pF, which helps maintain signal integrity during operation.
This model operates effectively within a temperature range of -40°C to 85°C.
The QX14T50B40.00000B50TT provides an HCMOS output level, compatible with various electronic circuits.
It features a through-hole mount type for secure installation on printed circuit boards (PCBs).
The oscillator is encased in a 14-pin dual in-line package (DIP-14), ensuring compatibility with standard PCB layouts.
The dimensions are 20.8mm in length, 13.2mm in width, and 5.08mm in height.
Yes, it is compliant with RoHS standards, ensuring environmental safety.
This oscillator is suitable for applications in industrial electronics, telecommunications, and computing devices requiring consistent timing performance.
This model belongs to the QX14 series of clock oscillators.
