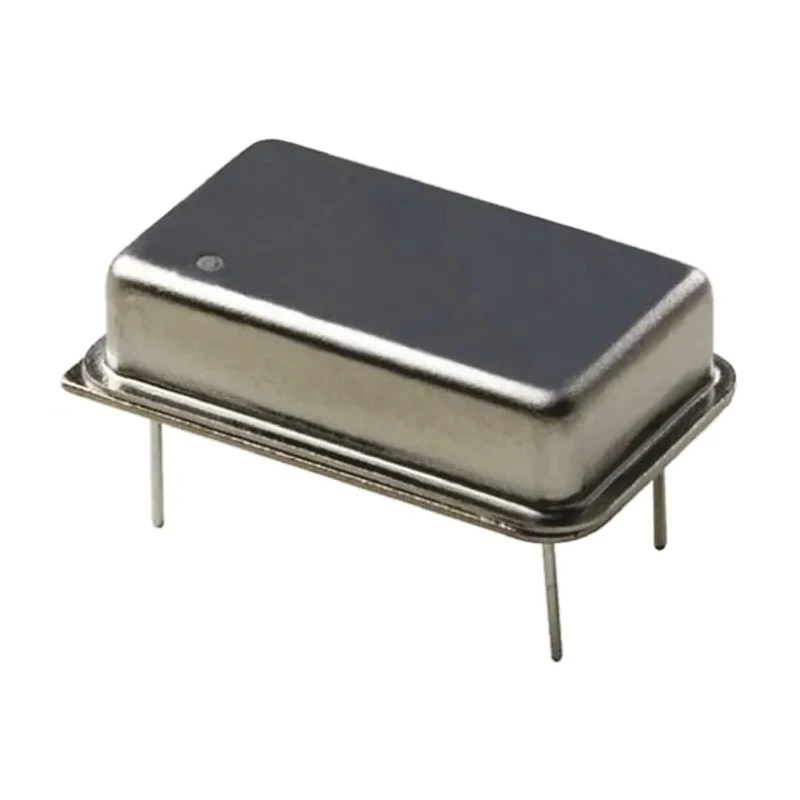

QANTEK 25MHz XO Oscillator ±50 ppm HCMOS 14-Pin DIP QX14T50B25.00000B50TT

QANTEK QX14T50B25.00000B50TT is a high-precision 25MHz XO Oscillator featuring ±50 ppm frequency stability and an HCMOS output level, making it ideal for electronic timing and clock generation in various applications.

This oscillator is housed in an industry-standard 14-pin Dual-In-Line (DIP) package, allowing straightforward installation via through-hole mounting on PCBs. The hermetically sealed package ensures enhanced reliability and low aging effects, ensuring long-term stable performance in industrial and commercial electronic equipment.

Operating temperature ranges from -40°C to 85°C, suitable for harsh environments and automotive-grade applications except that it does not meet automotive standards. The device has a maximum supply voltage of 5V and a load capacitance of 50pF, providing compatibility with logic circuits and microcontrollers requiring precise clock signals.

Dimensions of 5.08mm height, 20.8mm length, and 13.2mm width facilitate compact PCB layouts while maintaining mechanical stability. The oscillator features a tristate enable/disable function, enabling power saving and signal control options in electronic designs.

Compliance with RoHS standards confirms its environmental suitability, eliminating harmful substances. Applications include industrial timing circuits, communication devices, measurement instruments, laboratory equipment, and embedded system clocks.

Its country of origin is China, and it is supplied in tubes ready for efficient machine insertion, enhancing production throughput. For engineers and designers seeking reliable crystal oscillators, the QANTEK QX14T50B25.00000B50TT combines precision, reliability, and compatibility in a compact form factor.

Explore more components in the Crystal Oscillator category at EnvMart for comprehensive electronic solutions. This oscillator operates with a maximum supply voltage of 5V. It features a hermetically sealed DIP-14 package ensuring reliability and low aging.

The device supports through-hole mount type and includes a tristate enable/disable function. It is designed to operate within a temperature range of -40°C to 85°C. The load capacitance is rated at 50pF for optimal performance.

The Oscillator outputs a stable 25MHz frequency suitable for timing applications. The package dimensions are height 5.08mm, length 20.8mm, and width 13.2mm. It complies with RoHS standards for environmental safety. Pin count totals 14 for easy integration with standard 14-pin DIP sockets.
