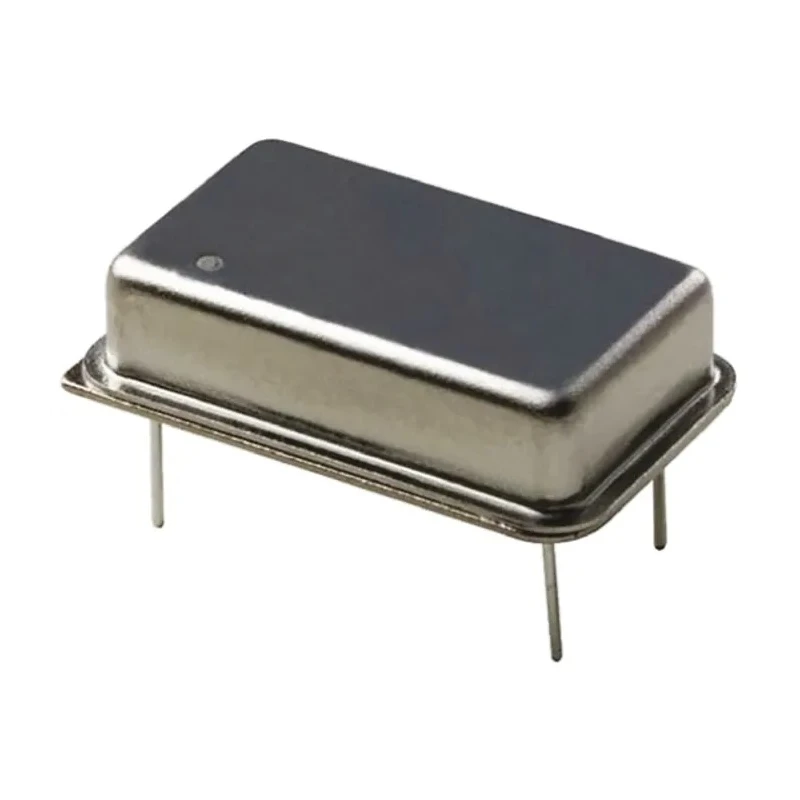

QANTEK 16.384MHz XO Oscillator ±50 ppm HCMOS 14-Pin DIP-14 QX14T50B16.38400B50TT
Specifications
| Country of Origin | China |
|---|---|
| Brand | QANTEK |
| Height | 5.08mm |
| Length | 20.8mm |
| Model | QX14T50B16.38400B50TT |
| Packaging | Tube |
| Width | 13.2mm |
| Mount Type | Through Hole |
| Series | QX14 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 16.384MHz |
| Package Type | DIP-14 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5V |
| Load Capacitance | 50pF |
| Oscillator Type | XO |
| Output Level | HCMOS |
Key Features
- Industry-standard 14-pin Dual In-Line Package ensures compatibility.
- Oscillator type is XO with HCMOS output level suitable for digital circuits.
- Operating temperature range from -40°C to 85°C for robust performance.
- Maximum supply voltage is 5V with through hole mounting type.
- Load capacitance is 50 pF for optimal frequency accuracy.
- Hermetically sealed package for high reliability and low aging.
- Tristate function available for enable/disable control.
- Package dimensions approximately 20.8mm length, 13.2mm width, and 5.08mm height.
Product Description
QANTEK QX14T50B16.38400B50TT is a high-precision crystal oscillator designed for electronic applications requiring a stable 16.384MHz frequency output. This XO-type oscillator provides excellent frequency stability of ±50 ppm, operating with a HCMOS output level, which makes it ideal for digital circuit integration.
The device comes in an industry-standard 14-pin Dual In-Line Package (DIP-14), facilitating easy installation via through-hole mounting techniques. It operates reliably within a wide temperature range from -40°C to 85°C, ensuring functionality in various industrial and commercial environments.
The oscillator features a load capacitance of 50pF and a maximum supply voltage of 5 volts. Its hermetically sealed package enhances durability and minimizes aging effects, critical for long-term stable performance. Additionally, the tristate enable/disable function allows controlled operation suitable for complex circuit designs.
Measuring approximately 20.8mm in length, 13.2mm in width, and 5.08mm in height, the oscillator meets stringent RoHS standards, underpinning eco-friendly manufacturing practices.
This oscillator is vital in electronics, instrumentation, telecommunications, and other fields that demand precise frequency references. It is suitable for industrial, laboratory, manufacturing, and commercial electronic equipment where timing accuracy is paramount.
Industry-standard 14-pin Dual In-Line Package ensures compatibility. Oscillator type is XO with HCMOS output level suitable for digital circuits. Operating temperature range from -40°C to 85°C for robust performance. Maximum supply voltage is 5V with through hole mounting type.
Load capacitance is 50 pF for optimal frequency accuracy. Hermetically sealed package for high reliability and low aging. Tristate function available for enable/disable control. Package dimensions approximately 20.8mm length, 13.2mm width, and 5.08mm height.
RoHS compliant ensuring environmental safety. Explore more electronic components and precision Oscillators through EnvMart to meet your technical and industrial application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 16.384MHz, providing a stable frequency reference for various applications.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for diverse environments.
The maximum supply voltage for this oscillator is 5V, which is essential for its operation in digital circuits.
This unit provides an HCMOS output level, which is compatible with digital circuit requirements.
The load capacitance for this oscillator is 50 pF, which helps ensure optimal frequency accuracy.
The package dimensions are approximately 20.8mm in length, 13.2mm in width, and 5.08mm in height.
It features a through-hole mounting type, facilitating easy installation on circuit boards.
Yes, it includes a tristate function that allows for enable/disable control, suitable for complex circuit designs.
This oscillator is packaged in a tube, which is standard for electronic components.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
This oscillator has a pin count of 14, conforming to the industry-standard DIP-14 package.
It is an XO (crystal oscillator) type, designed for high precision and stability in frequency output.
