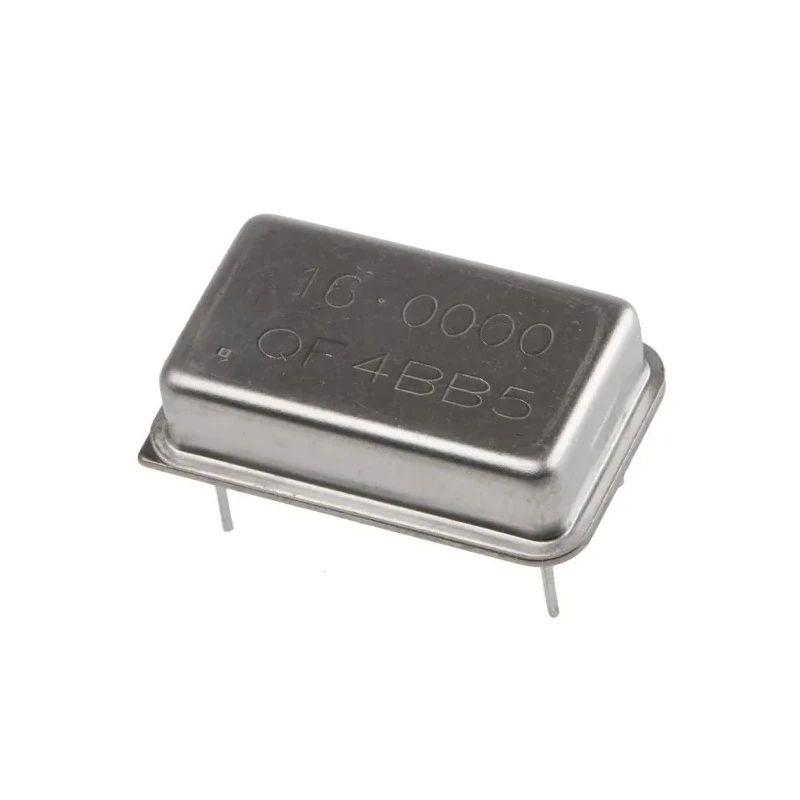

QANTEK 16MHz XO Oscillator ±50 ppm HCMOS 14-Pin DIP-14 QX14T50B16.00000B50TT
Specifications
| Country of Origin | China |
|---|---|
| Brand | QANTEK |
| Height | 5.08mm |
| Length | 20.8mm |
| Model | QX14T50B16.00000B50TT |
| Packaging | Tube |
| Width | 13.2mm |
| Mount Type | Through Hole |
| Series | QX14 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 16MHz |
| Package Type | DIP-14 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5V |
| Load Capacitance | 50pF |
| Oscillator Type | XO |
| Output Level | HCMOS |
Key Features
- This oscillator features XO type for improved frequency accuracy.
- Output level is HCMOS suitable for digital circuits.
- Operates at a maximum supply voltage of 5V through a through-hole mount.
- Designed to function reliably between -40°C and 85°C operating temperature.
- Load capacitance is specified at 50pF for stable oscillation.
- Package dimensions are compact with a width of 13.2mm and length of 20.8mm.
- Compliant with RoHS standard ensuring environmental safety.
- The hermetically sealed package ensures low aging and enhanced reliability.
Product Description
QANTEK QX14T50B16.00000B50TT XO Oscillator operates at 16MHz frequency with ±50 ppm frequency stability, featuring an HCMOS output level in a 14-pin DIP package.
Specifically designed for reliable performance in industrial and electronic applications, this oscillator supports a maximum supply voltage of 5V and is mounted through holes on PCBs using an industry-standard 14-pin Dual-In-Line (DIL) configuration.
The hermetically sealed package enhances reliability by reducing aging effects and protecting the device from environmental factors. The oscillator includes a tristate function allowing enable/disable control, beneficial for power management and signal integrity control within various electronic circuits.
This component is ideal for use in electronic devices requiring precise clock generation such as digital circuits, embedded systems, telecommunications equipment, and industrial control systems operating within a temperature range of -40°C to 85°C.
Its compact dimensions of 13.2mm width, 20.8mm length, and 5.08mm height facilitate easy integration into space-constrained designs. This oscillator features XO type for improved frequency accuracy. Output level is HCMOS suitable for digital circuits.
Operates at a maximum supply voltage of 5V through a through-hole mount. Designed to function reliably between -40°C and 85°C operating temperature. Load capacitance is specified at 50pF for stable oscillation. Package dimensions are compact with a width of 13.2mm and length of 20.8mm.
Compliant with RoHS standard ensuring environmental safety. The hermetically sealed package ensures low aging and enhanced reliability. Includes a tristate enable/disable function for flexible control. Country of origin is China.
This product aligns with industrial, manufacturing, electronics assembly, laboratory, and commercial electronic development applications. Buyers interested in reliable crystal oscillators for enhanced timing accuracy in their devices will find this model a suitable choice.
Explore additional QANTEK components and related crystal Oscillators on EnvMart for complementary electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The QX14T50B16.00000B50TT oscillator operates at an output frequency of 16MHz.
This oscillator has a maximum supply voltage of 5V.
The load capacitance for stable oscillation is specified at 50pF.
It is designed to operate reliably between -40°C and 85°C.
The output level of this oscillator is HCMOS, which is suitable for digital circuits.
The dimensions of this oscillator are 13.2mm in width, 20.8mm in length, and 5.08mm in height.
This model comes in a hermetically sealed DIP-14 package.
Yes, it is compliant with the RoHS standard, ensuring environmental safety.
It is designed for through-hole mounting on PCBs.
This oscillator belongs to the QX14 series.
Yes, it includes a tristate enable/disable function for flexible control.
The country of origin for this oscillator is China.
