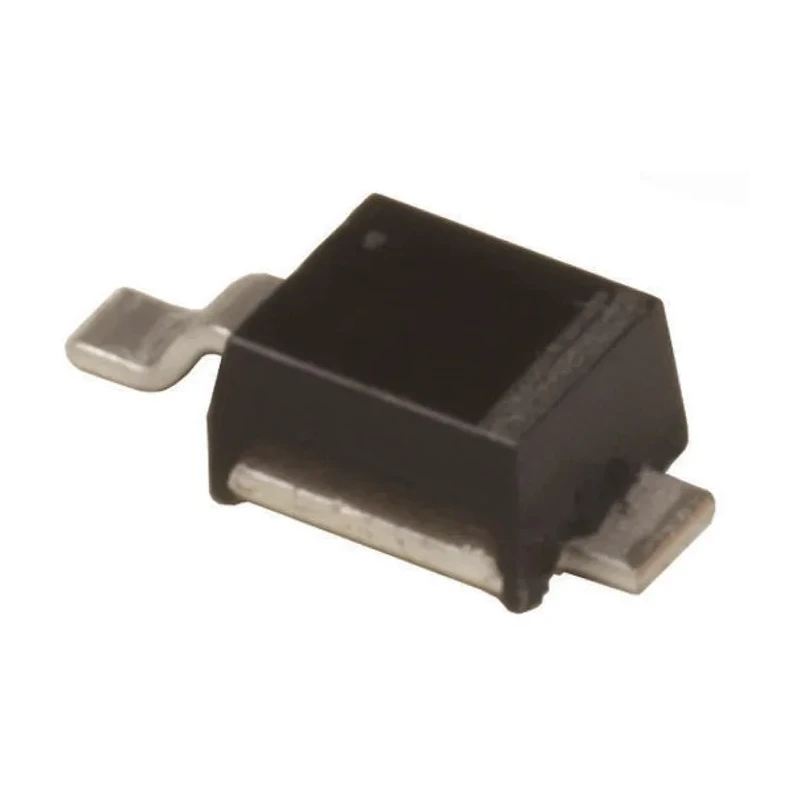

onsemi 20 V 1 A Surface Mount Schottky Diode 2-Pin POWEMITE MBRM120ET1G
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | onsemi |
| Height | 1.15mm |
| Length | 2.05mm |
| Model | MBRM120ET1G |
| Width | 2.18mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | POWERMITE |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1.6mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 540mV |
Key Features
- Features a 2-pin configuration for surface mount applications.
- Maximum continuous forward current of 1 ampere for reliable operation.
- Peak reverse repetitive voltage of 20 volts for circuit protection.
- Compact POWERMITE package measuring 2.05 mm length and 2.18 mm width.
- Operating temperature range from -65°C to 150°C for durability.
- Maximum forward voltage drop of 540 millivolts ensuring efficiency.
- Peak non-repetitive forward surge current capability of 50 amperes.
- Automotive-grade AEC-Q101 standard compliance for quality assurance.
Product Description
onsemi MBRM120ET1G is a Surface Mount Schottky Diode designed for efficient low voltage, high-frequency rectification, freewheeling, and polarity protection applications. It uses a Schottky barrier principle to optimize forward voltage drop and minimize reverse current, making it ideal for compact and lightweight electronic circuits.
This diode is housed in a POWERMITE package, which enhances automatic board assembly and provides stress protection with an epoxy moulded case. It operates reliably within a temperature range from -65°C up to 150°C and offers a maximum continuous forward current of 1 A, with a peak reverse voltage rating of 20 V.
The MBRM120ET1G diode features a 2-pin configuration and a low forward voltage drop of 540 mV, ensuring minimal power loss and efficient circuit operation. It can handle high transient current surges up to 50 A, suitable for demanding industrial and automotive electronics.
Specifically designed to meet AEC-Q101 automotive standards, this diode is optimized for quality and reliability in automotive and industrial systems. The lightweight 11.7 mg package allows for compact circuit designs where size and weight are critical factors.
Applications include power management in consumer electronics, automotive circuits, and industrial equipment requiring fast switching and robust diode performance. Features a 2-pin configuration for surface mount applications.
Maximum continuous forward current of 1 ampere for reliable operation. Peak reverse repetitive voltage of 20 volts for circuit protection. Compact POWERMITE package measuring 2.05 mm length and 2.18 mm width. Operating temperature range from -65°C to 150°C for durability.
Maximum forward voltage drop of 540 millivolts ensuring efficiency. Peak non-repetitive forward surge current capability of 50 amperes. Automotive-grade AEC-Q101 standard compliance for quality assurance. Lightweight epoxy moulded case with a 1.15 mm height profile.
Manufactured in Malaysia with high-quality standards. Discover more electronic components in the Schottky Diodes & Rectifiers category on EnvMart for your industrial, automotive, and electronic design needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the MBRM120ET1G Schottky diode is 1 ampere.
This model has a peak reverse repetitive voltage rating of 20 volts.
The operating temperature range for the MBRM120ET1G is from -65°C to 150°C.
The maximum forward voltage drop of this Schottky diode is 540 millivolts.
It comes in a POWERMITE package with dimensions of 2.05 mm length, 2.18 mm width, and 1.15 mm height.
This diode can handle a peak non-repetitive forward surge current of 50 amperes.
The MBRM120ET1G complies with the AEC-Q101 automotive standard.
It features a 2-pin configuration for surface mount applications.
The peak reverse current for the MBRM120ET1G is 1.6 milliamperes.
This diode is manufactured in Malaysia.
It is suitable for low voltage, high-frequency rectification, freewheeling, and polarity protection applications in automotive and industrial systems.
The Schottky barrier principle optimizes the forward voltage drop and minimizes reverse current, enhancing efficiency in electronic circuits.
