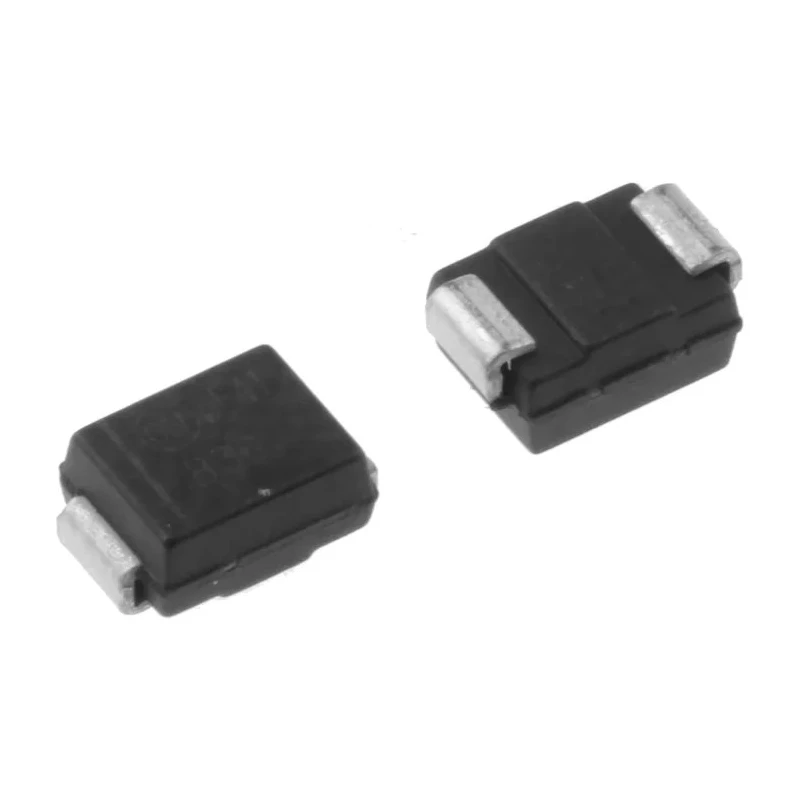

onsemi 60 V 4 A Schottky Diode Surface Mount DO-214AA MBRS360BT3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.27mm |
| Length | 4.6mm |
| Model | MBRS360BT3G |
| Width | 3.95mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 4A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 125A |
| Maximum Forward Voltage Vf | 740mV |
Key Features
- Employs Schottky barrier principle for low forward voltage drop and minimal reverse current.
- Maximum continuous forward current of 4 A with peak reverse repetitive voltage of 60 V.
- Compact DO-214AA epoxy moulded case with dimensions 4.6 mm length, 3.95 mm width, and 2.27 mm height.
- Peak forward surge current rating of 125 A and maximum forward voltage of 740 mV.
- Operating temperature range from -65°C to 175°C with automotive AEC-Q101 qualification.
- Resistant to stress with lightweight 11.7 mg package optimized for automated assembly.
- Suitable for use as freewheeling and polarity protection diode in surface mount applications.
Product Description
onsemi MBRS360BT3G Schottky diode is a surface mount discrete semiconductor designed for efficient low voltage and high frequency rectification in industrial, automotive, and electronic manufacturing applications. It uses the Schottky barrier principle to achieve an optimal trade-off between forward voltage drop and reverse leakage current.
This diode has a maximum continuous forward current of 4 A and can withstand a peak reverse repetitive voltage of 60 V. It is housed in a compact and epoxy moulded DO-214AA package with dimensions of 4.6 mm length, 3.95 mm width, and 2.27 mm height. The lightweight 11.7 mg package is designed for optimal automated board assembly processes.
The device supports a peak non-repetitive forward surge current of 125 A and a maximum forward voltage of 740 mV, operating reliably between -65°C and 175°C. Additionally, it meets the AEC-Q101 automotive standard, making it suitable for vehicular electronics requiring high reliability.
onsemi Schottky diodes such as the MBRS360BT3G are ideal for use as freewheeling diodes, polarity protection, and in high-frequency switching power supplies where compact size and efficient thermal management are critical. The lead-free, RoHS compliant construction ensures environmental safety and manufacturing compliance.
Employs Schottky barrier principle for low forward voltage drop and minimal reverse current. Maximum continuous forward current of 4 A with peak reverse repetitive voltage of 60 V. Compact DO-214AA epoxy moulded case with dimensions 4.6 mm length, 3.95 mm width, and 2.27 mm height.
Peak forward surge current rating of 125 A and maximum forward voltage of 740 mV. Operating temperature range from -65°C to 175°C with automotive AEC-Q101 qualification. Resistant to stress with lightweight 11.7 mg package optimized for automated assembly.
Suitable for use as freewheeling and polarity protection diode in surface mount applications.
This Schottky diode is a key component for electronic engineers designing power supplies and automotive circuits. Explore further products in Schottky Diodes & Rectifiers at EnvMart for compatible, high-performance semiconductor solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the MBRS360BT3G Schottky diode is 4 A.
This diode can withstand a peak reverse repetitive voltage of 60 V.
The dimensions of the DO-214AA package are 4.6 mm in length, 3.95 mm in width, and 2.27 mm in height.
The operating temperature range for the MBRS360BT3G is from -65°C to 175°C.
The peak forward surge current rating for this diode is 125 A.
The maximum forward voltage for the MBRS360BT3G is 740 mV.
This model meets the AEC-Q101 automotive standard, ensuring it is suitable for automotive applications.
The MBRS360BT3G has a single diode configuration.
The weight of the MBRS360BT3G is 11.7 mg.
This Schottky diode is suitable for use as freewheeling and polarity protection in surface mount applications.
The MBRS360BT3G is RoHS compliant, ensuring it meets environmental safety standards.
This Schottky diode has a pin count of 2.
