| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.65mm |
| Length | 1.25mm |
| Model | PESD5Z6.0,115 |
| Width | 0.85mm |
| Mount Type | Surface |
| Series | PESD |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 13V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.8V |
| Maximum Reverse Stand-off Voltage Vwm | 6V |
| Peak Pulse Power Dissipation Pppm | 180W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 10A |
| Maximum Reverse Leakage Current | 10nA |
| DiodesZetex D1213A-01T-7 1-Element Uni-Directional TVS Diode, 2-Pin SOD-523Brand | DiodesZetex |

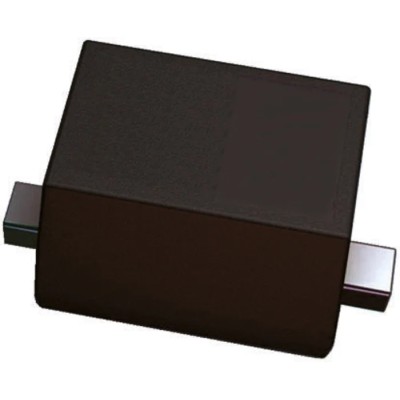

Nexperia PESD5Z6.0,115 is a 1-element uni-directional ESD Protection Diode designed to deliver 180 W peak pulse power dissipation. This diode is housed in a compact 2-pin SOD-523 surface mount package measuring 1.25 mm length, 0.85 mm width, and 0.65 mm height, making it ideal for space-constrained electronic circuit boards.
Engineered primarily for protection against electrostatic discharge and transient voltage spikes, the PESD5Z6.0,115 efficiently safeguards sensitive semiconductor devices in industrial, automotive, and consumer electronics applications.
Featuring a minimum breakdown voltage of 6.8 V and a maximum reverse stand-off voltage of 6 V, it maintains circuit integrity by clamping voltages at 13 V during transient events. The diode supports a peak pulse current of 10 A and a test current of 10 mA, assuring reliable performance under stress.
Designed for surface mount technology, this diode withstands operating temperatures from -55°C to 150°C, fulfilling rigorous automotive AEC-Q101 standards for quality and reliability.
With a very low maximum reverse leakage current of 10 nA, this device optimizes overall device efficiency and power consumption. Its single-element configuration simplifies implementation in circuit designs requiring unidirectional ESD protection.
This diode is designed specifically for ESD protection in discrete semiconductor applications. The SOD-523 package facilitates automatic PCB assembly and compact installation. It is suitable for industrial, automotive, and telecommunications equipment protection.
The device meets stringent automotive standards for temperature and electrical performance. It protects sensitive electronics from damage caused by ESD and voltage transients.
This Nexperia diode is a reliable component for engineers requiring compact, high-performance ESD protection in demanding electrical environments. Explore more products in the Electronics & Electricals category at EnvMart for your semiconductor and circuit protection needs.
