| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.65mm |
| Length | 1.25mm |
| Model | PESD5Z6.0,115 |
| Width | 0.85mm |
| Mount Type | Surface |
| Series | PESD |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 13V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.8V |
| Maximum Reverse Stand-off Voltage Vwm | 6V |
| Peak Pulse Power Dissipation Pppm | 180W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 10A |
| Maximum Reverse Leakage Current | 10nA |

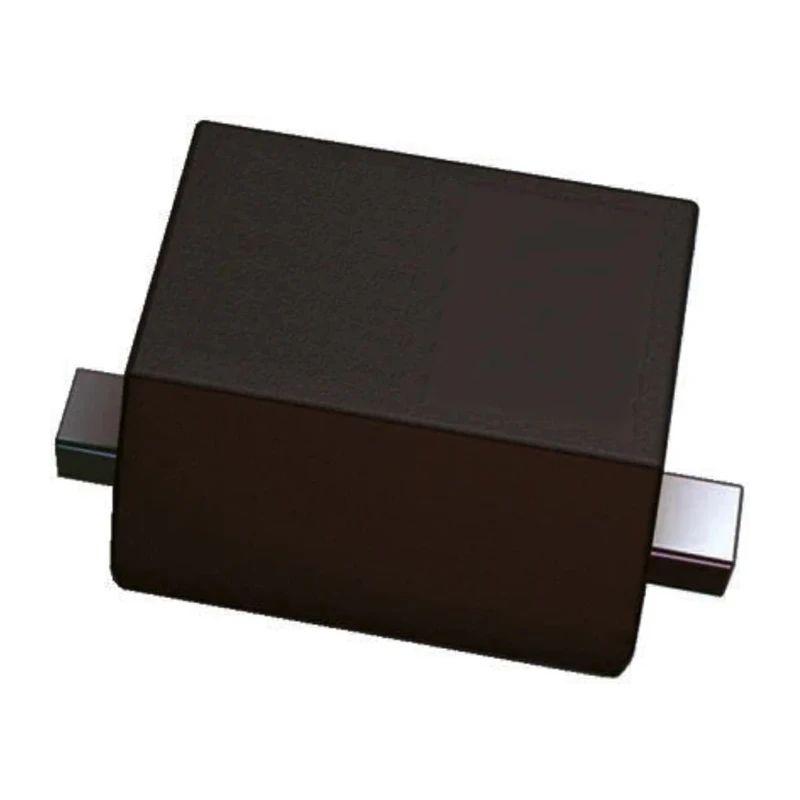

Nexperia PESD5Z6.0,115 Uni-Directional 1-Element ESD Protection Diode delivers 180 W peak pulse power dissipation and is housed in a compact 2-pin SOD-523 surface-mount package. It is designed to protect sensitive electronics from electrostatic discharge and transient voltage events by clamping voltage spikes to safe levels.
This diode features a minimum breakdown voltage of 6.8 V and a maximum reverse stand-off voltage of 6 V, making it suitable for protecting single signal lines in various electronic circuits. The device maintains low reverse leakage current of 10 nA, ensuring minimal impact on circuit performance.
The diode operates reliably across a broad temperature range from -55°C to 150°C and complies with the automotive AEC-Q101 standard, ensuring suitability for demanding automotive and industrial environments. It offers a maximum clamping voltage of 13 V and can handle peak pulse currents of up to 10 A.
The compact SOD-523 package, with dimensions of 1.25 mm length, 0.85 mm width, and 0.65 mm height, supports high-density PCB layouts and efficient surface mounting, ideal for modern electronic manufacturing.
This product is part of the PESD5Zx series by Nexperia, known for low capacitance and high reliability in ESD protection. It finds applications in semiconductor devices, electronic components, automotive electronics, and industrial electronic systems requiring robust ESD protection.
Offers unidirectional ESD protection with low capacitance. Compact SOD-523 surface-mount package for space-constrained designs. Conforms to automotive AEC-Q101 standard for quality assurance. Wide operating temperature range supports diverse environmental conditions.
High peak pulse power dissipation suitable for transient voltage suppression. Low leakage current enhances power efficiency. Designed for single signal line protection in electronic circuits. Reliable transient voltage clamp prevents device damage.
Ideal for industrial, automotive, and electronic component protection. Explore Nexperia products and other semiconductor solutions in the ESD Protection Diode category at EnvMart for reliable and high-quality electronic component sourcing.
