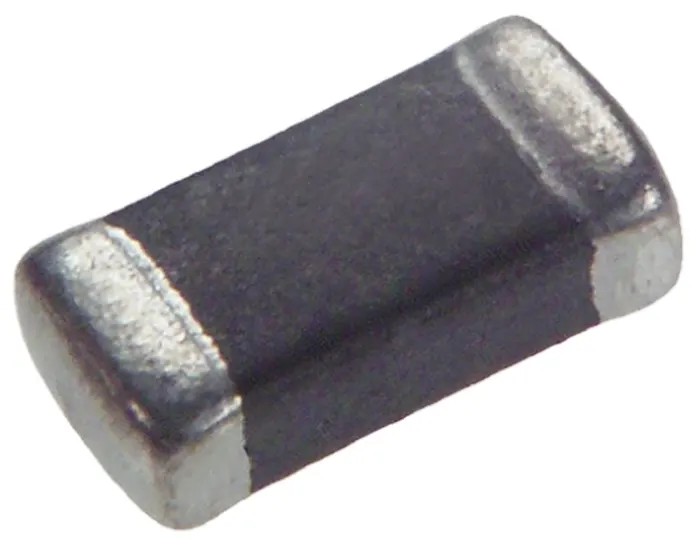

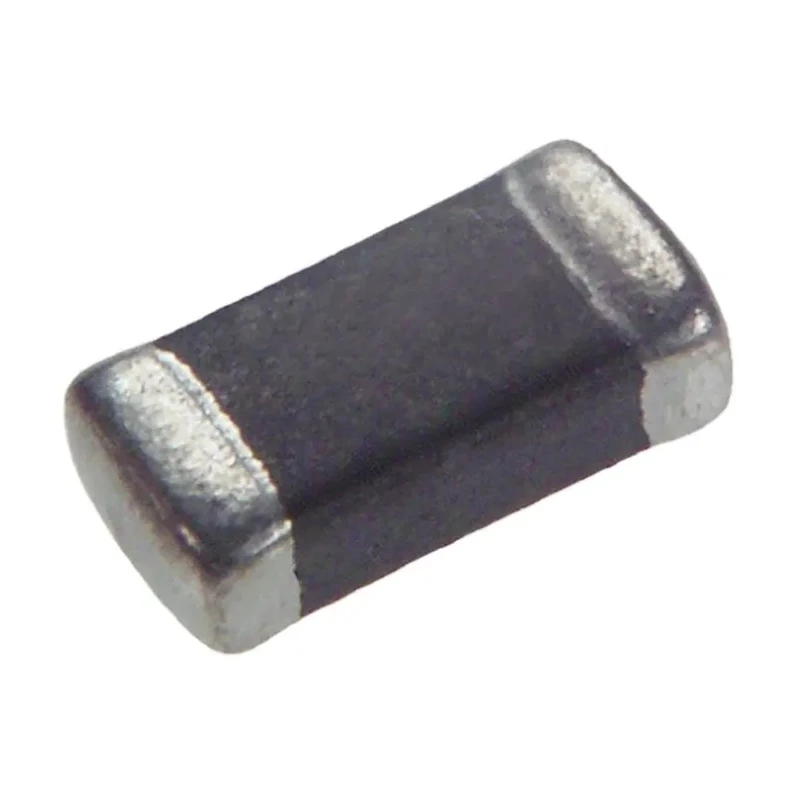

TDK Multilayer Ferrite Bead 0.6 mm Surface Mount 0603 Chip Bead 600 Ω Impedance at 100 MHz MMZ1608B601CTAH0

TDK MMZ1608B601CTAH0 is a multilayer ferrite bead designed for effective interference suppression in electronic signal lines. It features a compact 0603 surface mount chip bead package with a height of 0.6 mm, length of 1.6 mm, and depth of 0.8 mm, enabling high-density mounting on printed circuit boards.

The internal conductor design minimizes floating capacitance, leading to improved high-frequency characteristics to the GHz range. This ferrite bead offers an impedance of 600 Ω at 100 MHz and supports a maximum DC current rating of 500 mA, making it well-suited for EMI filtering in sensitive signal circuits.

With an operating temperature range from -55°C to 125°C, this component suits demanding industrial and commercial environments. The maximum DC resistance is limited to 0.4 Ω to reduce power losses during operation.

It is compatible with lead-free solder processes and designed for signal noise removal in applications such as cellular phones, portable audio players, digital cameras, and portable game machines.

Multilayer chip bead for EMI suppression. Compact 0603 surface mount package. 600 Ω impedance at 100 MHz. 500 mA current rating. Operating temperature range -55°C to 125°C. Low DC resistance of 0.4 Ω. RoHS compliant and halogen-free.

Manufactured in Japan.
