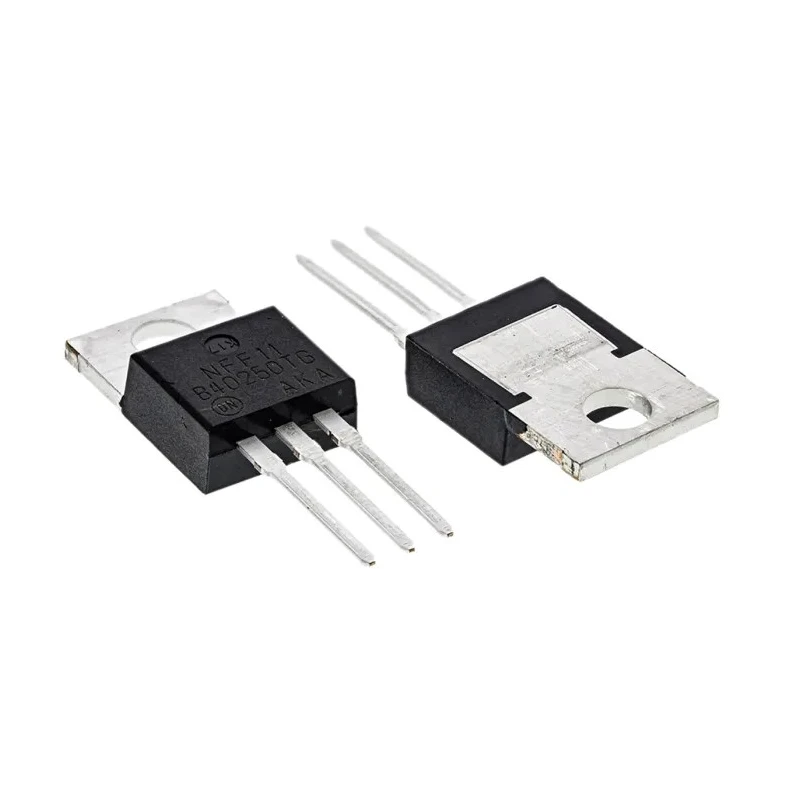

onsemi 250 V 40 A Switching Diode Single Rectifier 3-Pin TO-220 MBR40250TG

onsemi MBR40250TG Switching Diode 3-Pin TO-220 is a robust Schottky barrier diode designed for optimal switching applications with a maximum continuous forward current of 40 amperes and a peak reverse voltage of 250 volts. This semiconductor device employs Schottky barrier principles to offer excellent forward voltage drop and reverse current exchange characteristics, making it ideal for use in high-frequency, low-voltage rectification, freewheeling, and polarity protection circuits.

The device is mounted using through-hole technology in a TO-220 package, measuring 15.75 mm in height, 10.28 mm in length, and 4.82 mm in width, facilitating easy integration onto printed circuit boards. It maintains stable operation across a wide temperature range from -65°C minimum to a maximum operating temperature of 150°C, withstanding transient surges up to 150 amperes. Its 3-pin configuration simplifies electrical connections in various assembly setups.

Engineered with an epoxy moulded case, this diode offers a lightweight package weighing approximately 11.7 mg, ensuring compactness without compromising durability. It is suitable for industrial and commercial electronics requiring efficient switching components such as power supplies, automotive applications compliant with AEC-Q101 standards, and telecommunications equipment.

Mounted through hole with a TO-220 package for easy PCB integration. Maximum continuous forward current of 40 amperes supports high power loads. Peak reverse voltage of 250 volts ensures reliable switching performance. Maximum forward voltage drop of 970 millivolts improves efficiency.

Operates reliably across a temperature range from -65°C to 150°C. Designed with a 3-pin configuration facilitating straightforward connection. Peak non-repetitive forward surge current capacity of 150 amperes for transient loads.

Epoxy moulded lightweight package enhances durability and handling. Suitable for use in freewheeling, polarity protection, and surface mount applications. Conforms to automotive standards with no specific approvals required for this model.

This onsemi Schottky diode represents a reliable solution for electronic component needs in semiconductor, power management, and industrial equipment markets. Explore further semiconductor and diode components in the Electronics & Electricals category on EnvMart for compatible products and accessories.
