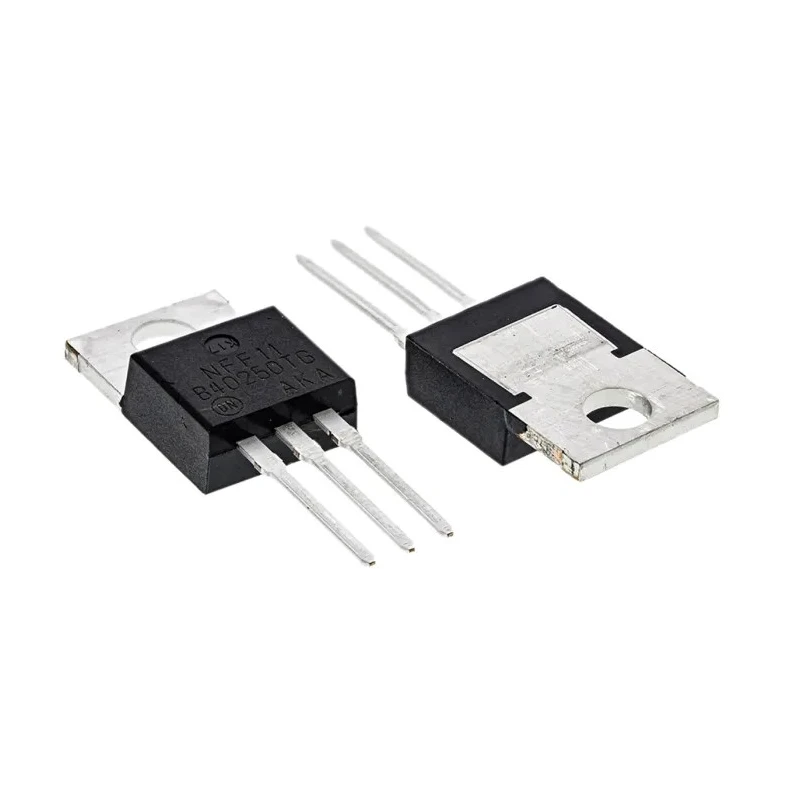

onsemi 250 V 40 A Switching Single Diode Through Hole TO-220 Package MBR40250TG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 15.75mm |
| Length | 10.28mm |
| Model | MBR40250TG |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 40A |
| Peak Reverse Repetitive Voltage Vrrm | 250V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 30mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 970mV |
Key Features
- The diode features a through-hole mount type for easy PCB integration.
- Maximum continuous forward current is rated at 40 amperes for high current applications.
- It has a peak reverse repetitive voltage of 250 volts ensuring robust reverse blocking capability.
- Low maximum forward voltage of 970 mV reduces power loss and increases efficiency.
- It supports a peak non-repetitive forward surge current of 150 amperes for transient conditions.
- Designed for operation in temperatures ranging from -65°C up to 150°C.
- The diode uses a single diode configuration with three pins arranged in a TO-220 package.
- Epoxy moulded case provides stress resistance and protection for industrial use.
Product Description
onsemi MBR40250TG is a switching diode housed in a TO-220 package designed for through-hole mounting. It delivers a maximum continuous forward current of 40 A and a peak reverse repetitive voltage of 250 V, making it suitable for high current and voltage applications in industrial electronic assemblies.
This diode employs a Schottky barrier principle using a barrier metal to minimize the forward voltage drop, ensuring improved efficiency in switching and rectification applications. Its maximum forward voltage of 970 mV and surge current capability up to 150 A make it reliable for transient conditions and power electronics.
The robust epoxy moulded case provides protection and stress resistance while maintaining a compact footprint with dimensions of 15.75 mm height, 10.28 mm length, and 4.82 mm width. Operable from -65°C to 150°C, it withstands demanding thermal environments.
It is optimized for low voltage, high-frequency rectification, freewheeling, and polarity protection in various power management systems. The lightweight TO-220 package also supports automated assembly for manufacturing efficiency.
The diode features a through-hole mount type for reliable PCB mechanical support. Maximum continuous forward current is 40 amperes suitable for power electronics. Peak reverse repetitive voltage is 250 volts offering solid reverse voltage blocking.
Low forward voltage drop enhances power efficiency in switching circuits. High surge current rating ensures reliability under transient conditions. Wide temperature range supports diverse industrial environments.
This Schottky diode from onsemi is ideal for use in industrial, power supply, automotive electronics, and consumer electronics applications requiring efficient switching and rectification.
Explore more Schottky diodes and rectifiers in the Semiconductor category at EnvMart for your high-performance circuit design needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the MBR40250TG is rated at 40 amperes.
This diode has a peak reverse repetitive voltage of 250 volts.
The maximum forward voltage drop for this diode is 970 mV.
It supports a peak non-repetitive forward surge current of 150 amperes.
The MBR40250TG operates in temperatures ranging from -65°C to 150°C.
This diode is housed in a TO-220 package.
This model features a total of 3 pins.
It utilizes a through-hole mount type for easy PCB integration.
The height of this diode is 15.75 mm.
The width is 4.82 mm and the length is 10.28 mm.
It uses a single diode configuration.
This Schottky diode is suitable for industrial, power supply, automotive electronics, and consumer electronics applications requiring efficient switching and rectification.
