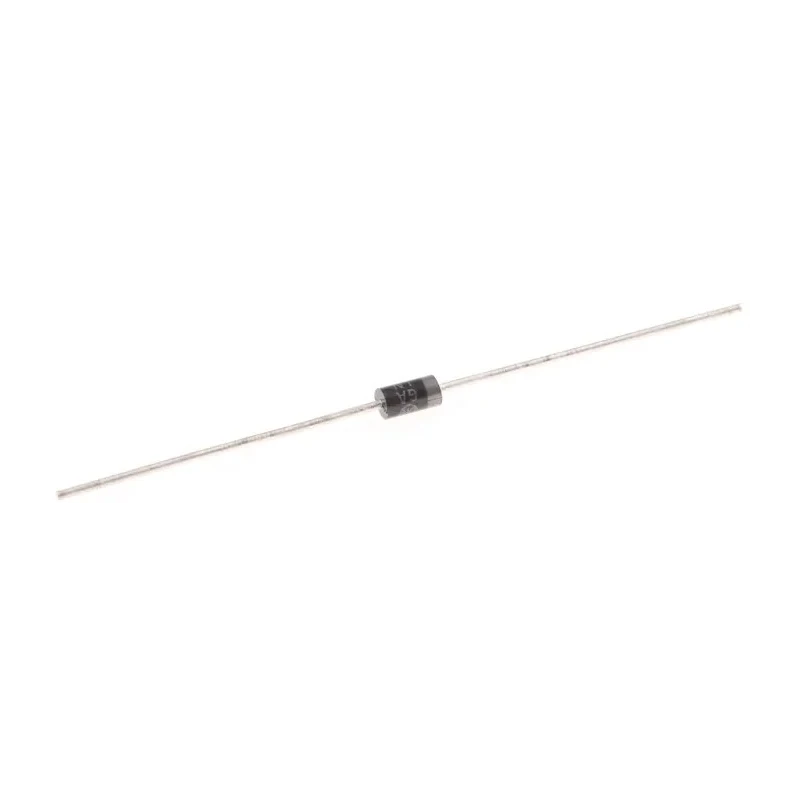

onsemi 30 V 1 A Diode Rectifier Diode 2-Pin DO-41 1N5818G
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | onsemi |
| Height | 5.2mm |
| Length | 5.2mm |
| Model | 1N5818G |
| Finish | All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable |
| Gross Weight | 0.4 Gram |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | 1N5818 |
| Maximum Operating Temperature | 125°C |
| Case | Epoxy, Molded |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Polarity | Cathode Indicated by Polarity Band |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Rectifier Diode |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 550mV |
| Lead Temperature for Soldering Purposes | 260°C Max for 10 Seconds |
Key Features
- The diode supports a maximum continuous forward current of 1A.
- It features a peak reverse repetitive voltage of 30V.
- Package type is DO-41 with through hole mounting.
- Maximum forward voltage is 550mV ensuring low power loss.
- Operating temperature ranges from -65°C to 125°C.
- The diode is constructed with epoxy molding and corrosion-resistant surfaces.
- Cathode polarity is indicated by the polarity band for correct orientation.
- Peak non-repetitive forward surge current is rated at 25A.
Product Description
onsemi 1N5818G Diode Rectifier Diode 2-Pin DO-41 is a highly efficient Schottky diode with a maximum continuous forward current of 1 A and peak reverse voltage of 30 V, ideal for semiconductor applications requiring reliable rectification under moderate current and voltage conditions.
This diode features a through-hole mount design in a DO-41 epoxy molded package, providing robustness and ease of circuit integration. Its construction includes a chrome barrier metal with oxide passivation and metal overlap contact for enhanced performance and longevity.
Designed for use in high-frequency inverters, free wheeling diodes, and polarity protection, the 1N5818G delivers low forward voltage and low stored charge, enabling high efficiency and reduced power loss in electronic circuits.
The diode operates effectively across a temperature range of -65°C to 125°C, with external corrosion-resistant finishes and solderable terminal leads that tolerate lead temperatures up to 260°C for short durations, facilitating durable solder joints.
Physical dimensions are compact with a length and height of 5.2 mm and diameter/width of 2.7 mm, weighing approximately 0.4 grams. The cathode is clearly marked by a polarity band to ensure correct installation in electronic assemblies.
The diode supports a maximum continuous forward current of 1A. Peak reverse repetitive voltage is rated at 30V. DO-41 package type with through-hole mount. Maximum forward voltage drop is 550mV. Operating temperature range: -65°C to 125°C.
Epoxy molded case with corrosion-resistant finish. Cathode marked by polarity band for easy identification. Peak forward surge current up to 25A. Compact dimensions with length 5.2 mm and diameter 2.7 mm. Lead temperature for soldering up to 260°C max for 10 seconds.
This product is ideal for use in industrial, commercial, electronics manufacturing, and laboratory applications involving power rectification and control. It offers durable performance in semiconductor circuitry requiring Schottky diode capabilities.
Explore more semiconductor and diode products from EnvMart to meet your electronic component needs with quality assurance and detailed technical data.
Explore more products in our Schottky Diodes & Rectifiers category.
