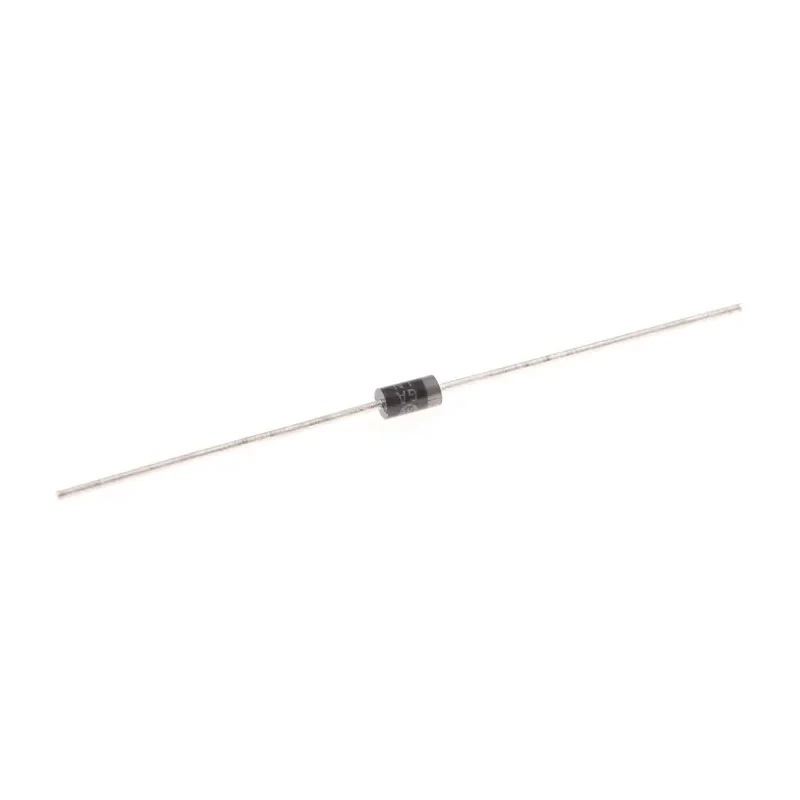

onsemi 30 V 1 A Schottky Diode Rectifier 2-Pin DO-41 1N5818G
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | onsemi |
| Height | 5.2mm |
| Length | 5.2mm |
| Model | 1N5818G |
| Finish | All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable |
| Gross Weight | 0.4 Gram |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | 1N5818 |
| Maximum Operating Temperature | 125°C |
| Case | Epoxy, Molded |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Polarity | Cathode Indicated by Polarity Band |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Rectifier Diode |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 550mV |
| Lead Temperature for Soldering Purposes | 260°C Max for 10 Seconds |
Key Features
- This diode features a maximum continuous forward current of 1 ampere.
- It supports a peak reverse repetitive voltage of 30 volts.
- Designed with a molded epoxy DO-41 package offering corrosion resistance.
- The device has a low forward voltage drop of 550 mV enhancing efficiency.
- It operates reliably in temperatures from -65°C to 125°C.
- The diode's pin count is 2 with cathode marked by polarity band.
- Ideal for use in high frequency inverters and polarity protection circuits.
- Lead temperature for soldering purposes is rated up to 260°C for 10 seconds.
Product Description
onsemi 1N5818G Schottky Diode Rectifier with 30 V maximum repetitive peak reverse voltage and 1 A maximum continuous forward current in a 2-pin DO-41 molded epoxy package offers excellent performance in power applications.
This diode series utilizes metal-to-silicon technology with chrome barrier metal and oxide passivation to ensure high reliability and efficiency. Its low forward voltage drop and low stored charge contribute to reduced power losses and increased system efficiency.
The 1N5818G is designed for use in high frequency inverter circuits, free wheeling diodes, and polarity protection configurations due to its fast switching speed and robust thermal characteristics.
The epoxy molded casing is corrosion resistant, and terminal leads are designed for easy soldering with a maximum lead temperature of 260°C for 10 seconds. Its operating temperature range spans from -65°C to 125°C, making it suitable for a variety of industrial and commercial electronic applications.
This diode supports a peak reverse repetitive voltage of 30 V and continuous forward current of 1 A. The device’s maximum forward voltage is 550 mV, enabling efficient conduction. It features a peak surge current capacity of 25 A for transient conditions.
Designed as a single diode configuration with two terminals labeled for polarity by a cathode band. Its compact dimensions and lightweight design at 0.4 grams make it ideal for space-sensitive electronic assemblies. Typical applications include power supplies, switching power regulators, and low voltage rectification in consumer and industrial electronics.
Explore more Schottky Diode Rectifiers and other semiconductor components suitable for advanced electronics manufacturing and repair at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the 1N5818G diode is 1 ampere.
This Schottky diode has a peak reverse repetitive voltage rating of 30 volts.
The operating temperature range for the 1N5818G diode is from -65°C to 125°C.
The maximum forward voltage drop of the 1N5818G diode is 550 mV.
The peak surge current capacity of the 1N5818G is 25 A for transient conditions.
The 1N5818G diode is packaged in a DO-41 molded epoxy case.
The dimensions of the 1N5818G diode are 5.2 mm in length, 5.2 mm in height, and 2.7 mm in diameter.
The cathode of the 1N5818G diode is indicated by a polarity band.
The weight of the 1N5818G diode is 0.4 grams.
The 1N5818G diode supports through-hole mounting.
The lead temperature for soldering the 1N5818G is rated up to 260°C for 10 seconds.
The 1N5818G diode is suitable for use in high frequency inverter circuits, free wheeling diodes, and polarity protection configurations.
