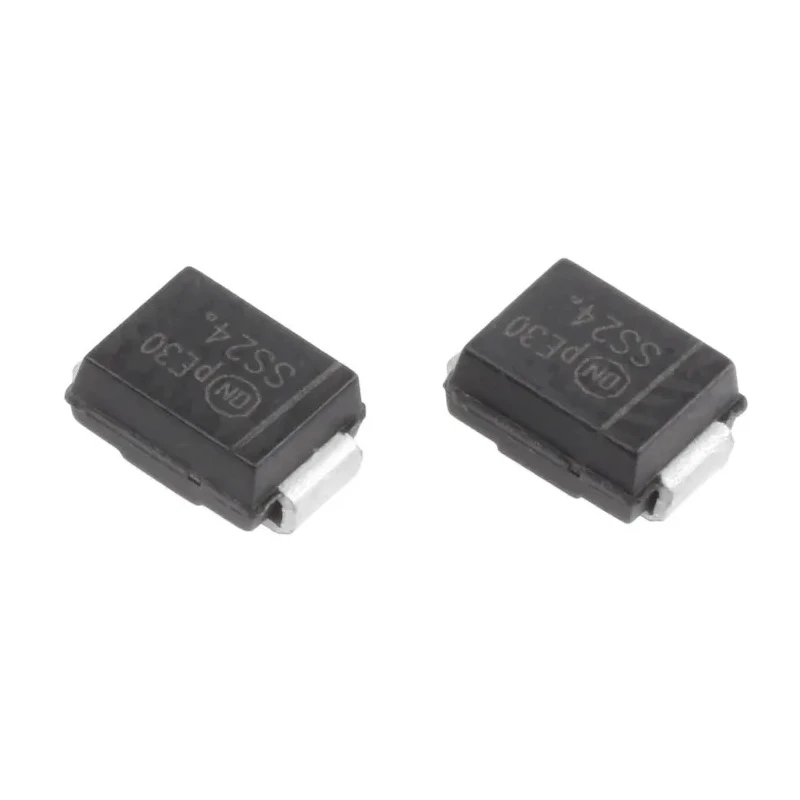

onsemi 40 V 2 A Schottky Diode 2-Pin DO-214AA SS24T3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.26mm |
| Length | 4.57mm |
| Model | SS24T3G |
| Width | 3.81mm |
| Mount Type | Surface |
| Series | SS24 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 5.7mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 500mV |
Key Features
- This surface mount Schottky diode has a maximum continuous forward current of 2 A.
- Maximum reverse repetitive voltage rating is 40 V suitable for various electronic circuits.
- Features a low maximum forward voltage drop of 500 mV for efficient performance.
- Operates reliably between temperature ranges of -55°C to 150°C ensuring durability.
- Compact DO-214AA package with dimensions of 4.57 mm length, 3.81 mm width, and 2.26 mm height.
- Peak non-repetitive forward surge current capability of 75 A to handle transient loads.
- Offers lightweight epoxy moulded case weighing approximately 11.7 mg for efficient automated assembly.
- Schottky barrier principle provides excellent forward voltage drop and reverse current exchange.
Product Description
The onsemi SS24T3G Schottky Diode in a 2-Pin DO-214AA package is a reliable surface mount rectifier optimized for low voltage, high frequency applications such as power supplies, polarity protection, and freewheeling circuits.
It supports a continuous forward current of 2 A and peak reverse repetitive voltage of 40 V, making it suitable for efficient rectification and switching within electronic equipment.
Utilizing the Schottky barrier principle, this device offers a low forward voltage drop of 500 mV and very low reverse leakage current, maximizing power efficiency and thermal management.
The diode operates over a wide temperature range from -55°C to 150°C, ensuring reliability in demanding environmental conditions typically found in industrial and consumer electronics.
Its compact DO-214AA epoxy moulded case provides lightweight construction and excellent protection while being conducive to automated board assembly, increasing manufacturing efficiency.
Additional industrial and commercial applications include use in telecommunications, automotive electronics, power management, and other semiconductor circuits requiring fast switching and low voltage drops.
This Schottky diode’s surface mount design facilitates integration in compact, high-density PCBs. Robust peak surge current handling safeguards the device against transient spikes. The product complies with standard semiconductor quality and manufacturing protocols but does not carry specific automotive certification.
Its compact size and weight support designs with strict space and weight constraints. Package dimensions are length 4.57 mm, width 3.81 mm, and height 2.26 mm.
Explore the full range of semiconductor discrete components and Schottky diodes offered by onsemi and other leading brands on EnvMart for industrial, laboratory, and commercial electronics applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky diode is 2 A.
The peak reverse repetitive voltage rating for this model is 40 V.
It features a low maximum forward voltage drop of 500 mV.
The dimensions of the DO-214AA package are 4.57 mm in length, 3.81 mm in width, and 2.26 mm in height.
This diode operates reliably between temperatures of -55°C to 150°C.
The peak non-repetitive forward surge current capability is 75 A.
This model supports surface mounting.
The weight of this diode is approximately 11.7 mg.
It is suitable for various applications including power supplies, polarity protection, and freewheeling circuits.
The peak reverse current for this model is 5.7 mA.
This diode has a pin count of 2.
The SS24T3G is a Schottky rectifier.
