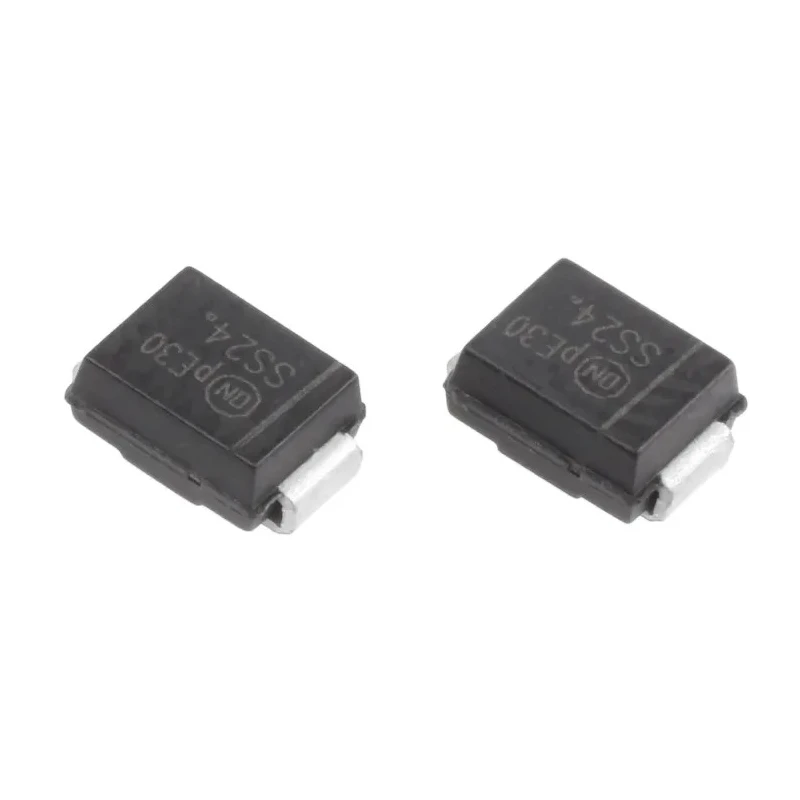

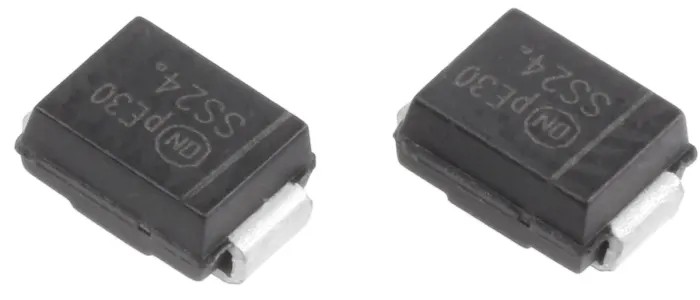

onsemi 40 V 2 A Surface Mount Schottky Diode DO-214AA Package SS24T3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.26mm |
| Length | 4.57mm |
| Model | SS24T3G |
| Width | 3.81mm |
| Mount Type | Surface |
| Series | SS24 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 5.7mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 75A |
| Maximum Forward Voltage Vf | 500mV |
Key Features
- This diode features a maximum continuous forward current of 2 amperes.
- It supports a peak reverse repetitive voltage of 40 volts for robust operation.
- The Schottky configuration provides efficient high-frequency rectification.
- Operates safely from -55°C to 150°C, suitable for diverse environments.
- Compact surface mount DO-214AA package with dimensions 4.57 mm length, 3.81 mm width, and 2.26 mm height.
- Maximum forward voltage drop is 500 millivolts ensuring minimal power loss.
- Peak non-repetitive forward surge current rating is 75 amperes for transient robustness.
- The device is epoxy moulded, lightweight (11.7 mg), and Pb-free for environmentally friendly applications.
Product Description
onsemi SS24T3G Schottky Diode is a reliable 40 V 2 A surface mount diode using the Schottky barrier principle to offer low forward voltage drop and reduced reverse current.
This diode, in the compact DO-214AA package, is optimized for high-frequency rectification, freewheeling, and polarity protection in various surface mount electronic circuits where size and weight are critical.
Its continuous forward current of 2 A and peak reversible voltage of 40 V suit low voltage power applications. The device supports a broad operating temperature range from -55°C to 150°C, ensuring durability in demanding conditions.
The maximum forward voltage of 500 mV minimizes power dissipation, and the 75 A peak surge current rating offers robustness against transient spikes. The epoxy moulded case contributes to mechanical strength and toughness.
Lightweight at just 11.7 mg, this Pb-free diode supports green manufacturing standards. Although it is not automotive certified, it is designed for optimized automated board assembly and stress protection guarding.
Maximum continuous forward current: 2 A. Peak reverse repetitive voltage: 40 V. Operating temperature range: -55°C to 150°C. Peak forward surge current: 75 A. Package type: DO-214AA surface mount. Maximum forward voltage: 500 mV.
Epoxy moulded case for durability. Lightweight design of 11.7 mg. Pb-Free and RoHS compliant. Suitable for power supplies, polarity protection, and high-frequency rectification.
This Schottky diode is commonly used across industrial, electronic manufacturing, power supply design, and telecommunications applications requiring efficient, compact power rectification.
Explore a wide range of semiconductor and Schottky diode solutions in the Electronics & Electricals category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 2 amperes.
It supports a peak reverse repetitive voltage of 40 volts.
This model operates safely within a temperature range of -55°C to 150°C.
The dimensions of the DO-214AA package are 4.57 mm in length, 3.81 mm in width, and 2.26 mm in height.
The maximum forward voltage drop is 500 millivolts, ensuring minimal power loss.
The peak non-repetitive forward surge current rating is 75 amperes.
This diode uses a surface mount configuration.
This model weighs 11.7 mg, making it lightweight for various applications.
It is a Schottky rectifier, optimized for high-frequency rectification.
The peak reverse current is rated at 5.7 mA.
Yes, it is Pb-free and compliant with RoHS standards, supporting environmentally friendly applications.
This Schottky diode is commonly used in power supplies, polarity protection, and high-frequency rectification applications.
