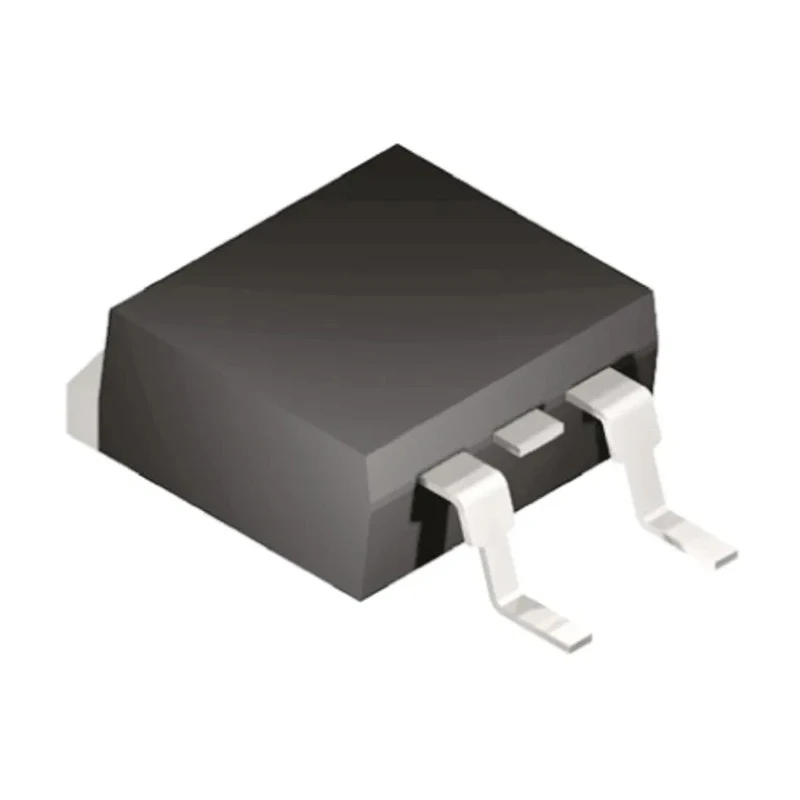

onsemi 45 V 30 A Schottky Diode Surface Mount TO-263 3-Pin D2PAK MBRB2545CTT4G

onsemi MBRB2545CTT4G is a high-performance Schottky diode designed for surface mount applications where compact size and efficient low voltage drop are crucial. Encapsulated in a TO-263 (D2PAK) 3-pin package, this diode is ideal for low voltage and high-frequency rectification tasks.

This diode features a maximum continuous forward current rating of 30 A and a peak reverse repetitive voltage rating of 45 V, making it suitable for robust protection in electronic circuits. The common cathode configuration and Schottky barrier construction ensure fast switching speed and low forward voltage drop, measured at a maximum of 720 mV.

Designed to operate over a wide temperature range from -65°C to 175°C, this device meets demanding automotive standards with an AEC-Q101 qualification, underscoring its reliability and quality. Its lightweight epoxy moulded case provides stress protection, ensuring resilience in harsh industrial environments.

Typical uses include freewheeling, polarity protection, and general rectification in industrial, automotive, and power management electronics. The compact dimensions of 10.29 mm length, 9.65 mm width, and 4.83 mm height make it excellent for automated board assembly and space-constrained designs.

This diode provides efficient low voltage drop and fast switching capability. It supports a maximum continuous forward current of 30 amperes. The peak reverse repetitive voltage rating is 45 volts for reliable protection.

Features common cathode diode configuration with a Schottky rectifier type. Designed for automotive use with AEC-Q101 qualification and operating temperature up to 175°C. The compact TO-263 package measures 10.29 mm in length, 9.65 mm in width, and 4.83 mm in height.

Maximum forward voltage drop is approximately 720 millivolts ensuring energy efficiency. Offers a peak non-repetitive forward surge current of 150 amperes for transient conditions. Suitable for surface mount applications requiring compact size and high frequency rectification.

Lightweight epoxy moulded case with stress protection for enhanced durability. Lead-free construction supports environmentally friendly manufacturing.

These technical attributes make the onsemi MBRB2545CTT4G an excellent choice for electronic manufacturing industries requiring high-reliability Schottky Diodes. Explore more semiconductor and discrete components on EnvMart to enhance your design and production capabilities.
