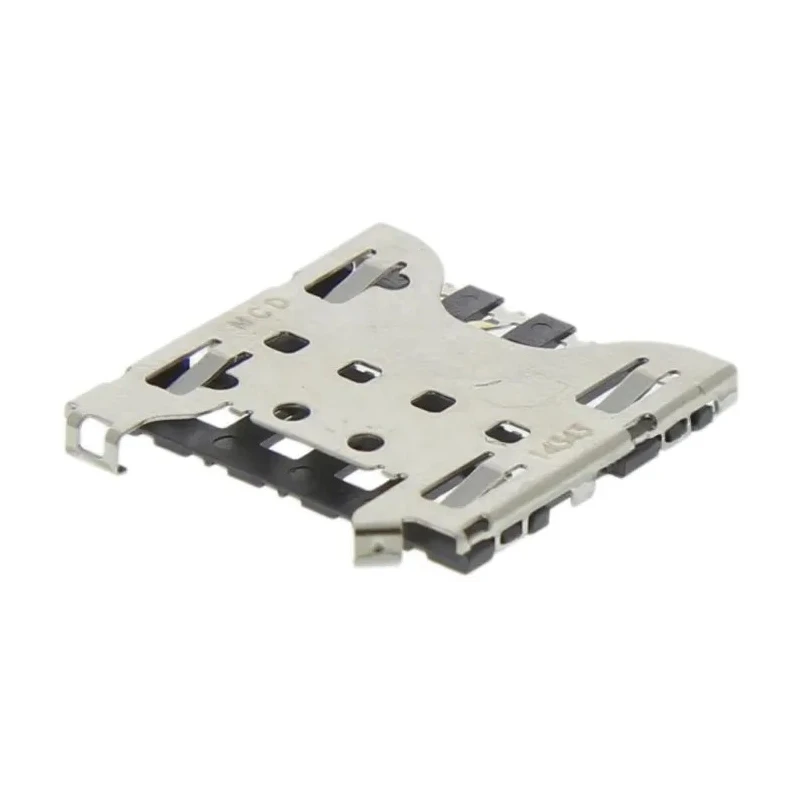

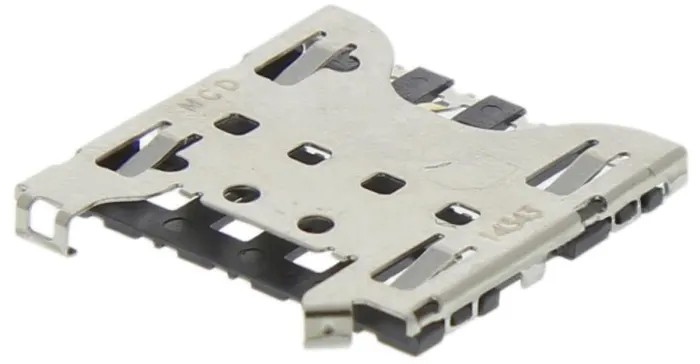

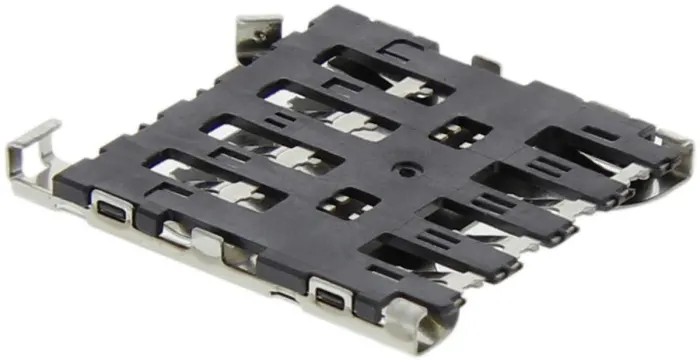

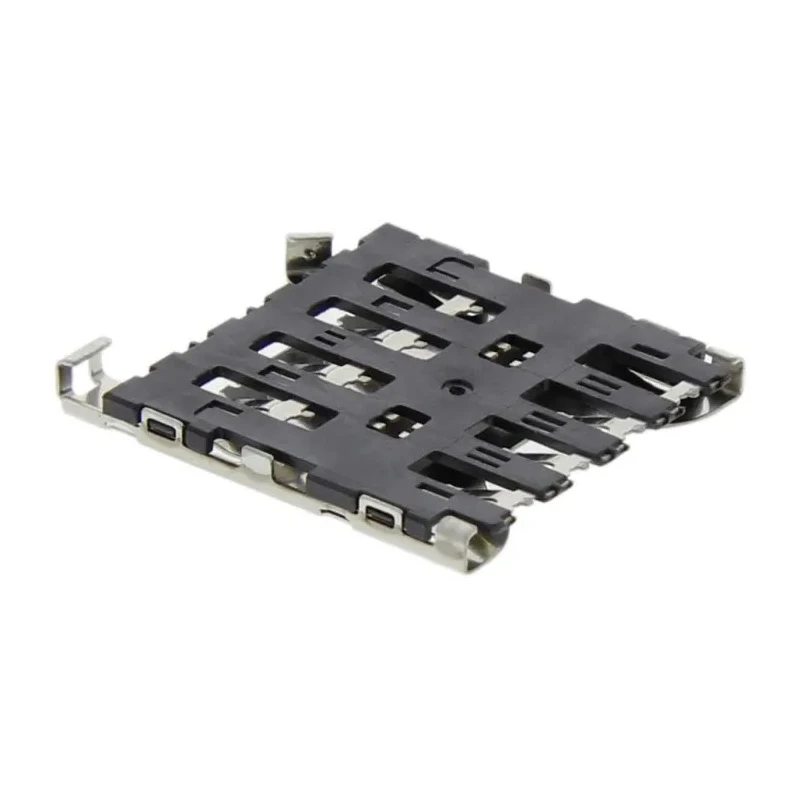

Molex 6 Way Right Angle Push Pull Micro SIM Memory Card Connector, Solder, Surface Mount, Gold Plated Contacts 78723-1001

Molex 78723-1001 is a 6 Way Right Angle Push Pull Micro SIM Memory Card Connector designed with an ultra-low profile height of just 1.35 mm to save significant vertical space on PCBs. This surface mount connector features a push-pull insertion and removal mechanism that includes a wide finger area for simple and secure handling of the micro SIM card. The connector shell has an integral shell spring tab that provides a high normal contact force of 0.30N when the SIM card is inserted, ensuring a reliable electrical connection.

To enhance reliability, the connector incorporates dual angular card polarization features that prevent card misinsertion and raised housing walls to protect against shorting between the SIM card contact pads and metal shell. The copper alloy contacts are plated with gold over nickel for excellent conductivity and durability. Additionally, the rounded terminal profile facilitates smooth card insertion, and the internal lead design prevents contact stubbing.

The housing is molded from high temperature liquid crystal polymer with an EMI shielded stainless steel cover that offers robust protection against electromagnetic interference, making it suitable for various industrial, commercial, and communication devices. The connector supports a wide operating temperature range from -40°C to 85°C, suitable for handheld devices used in diverse environments.

This connector is ideally suited for ultra-slim smartphones, mobile phones, tablet PCs, PC Cards, GSM and UMTS modems, and wireless LAN cards where compact, reliable memory card interfacing is required.

Ultra-low profile height of 1.35 mm for compact PCB space savings. Push-pull mechanism with wide finger area for ease of use. Integral shell spring tab provides 0.30N contact force. Dual card polarization prevents misinsertion.

Raised housing walls prevent shorting of contact pads. Gold over nickel plated copper alloy contacts for high conductivity. High temperature liquid crystal polymer housing with EMI shield. Surface mount solder termination for reliable assembly.

Operating temperature range: -40°C to 85°C. Suitable for ultra-slim smartphones, tablets, PC Cards, and wireless devices. Explore our comprehensive range of Memory Card Connectors and related components at EnvMart for your electronics manufacturing needs.
