Panasonic PCB Power Relay 9V dc Coil 22A Switching Current SPST ALFG1PF09

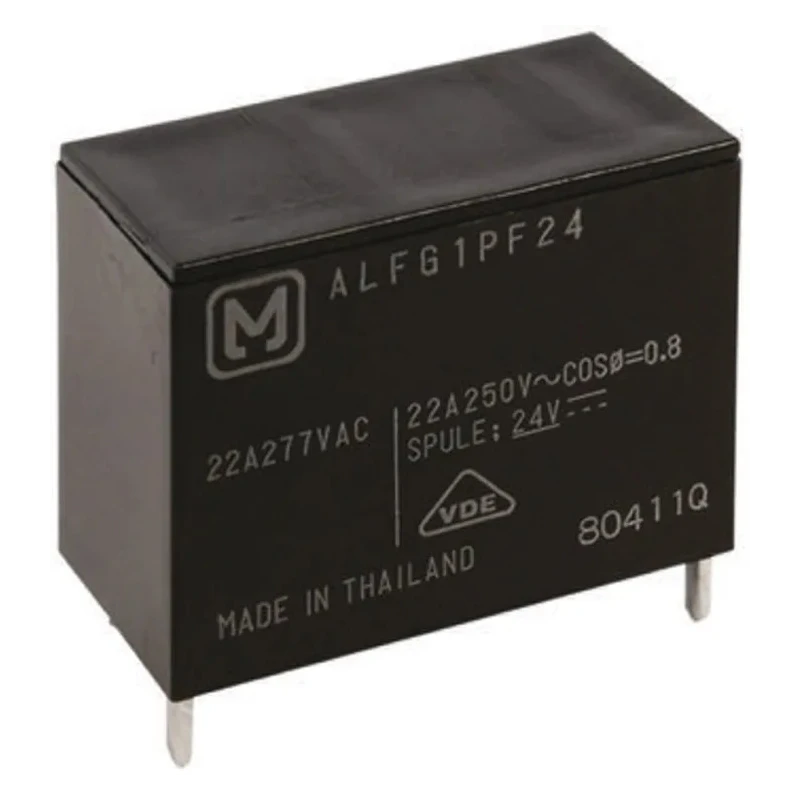

Panasonic ALFG1PF09 PCB power relay is engineered for high-performance electrical switching with a 9V dc coil voltage and a robust 22A switching current capacity. This power relay utilizes a single-pole single-throw (SPST) contact configuration, making it ideal for various industrial and commercial applications including solar inverters, uninterruptible power supplies, office machines, and household appliances.

The relay is designed for printed circuit board (PCB) mounting using through hole terminals, ensuring secure and reliable mechanical and electrical connections. Its compact size, measuring 30.1mm in length, 15.7mm in width, and 23.3mm in height, allows integration into space-constrained electronic assemblies.

The device supports a maximum switching AC voltage of 250V and a switching power of 5.5 kVA. It operates efficiently within a temperature range of -40°C to 60°C, providing versatility for outdoor and indoor environments. Coil resistance is 58 ohms with a power consumption of 1.4W, featuring a coil holding voltage reduction technology that contributes to energy savings in equipment operations.

The contact material is silver alloy, which guarantees low contact resistance of 100 milliohms and enhances contact durability under high load conditions. Moreover, the relay withstands surge breakdown voltages up to 6 kV, ensuring electrical protection and longevity.

Certified to VDE, RoHS, and UL standards, the ALFG1PF09 ensures compliance with international quality and safety regulations. Typical application examples include renewable energy systems such as photovoltaic solar inverters, as well as industrial uninterruptible power supplies and various office equipment devices requiring reliable power control.

The SPST contact design provides straightforward on/off switching suitable for a wide range of electrical circuits. Compact dimensions facilitate use in compact electronic devices. High switching current rating supports robust load control.

Durable silver alloy contacts minimize wear and increase reliability. Energy-efficient coil operation reduces overall power consumption. High surge breakdown voltage protects sensitive components from electrical spikes. Wide operating temperature range for varied environmental conditions.

PCB mountable with through hole terminals for stable connections. Approved by major certifications including UL, VDE, and RoHS for assured quality.

This Panasonic power relay ALFG1PF09 is essential for industrial automation, renewable energy solutions, and commercial electrical systems. Explore more power relay products and related electrical components at EnvMart for diverse industrial applications.
