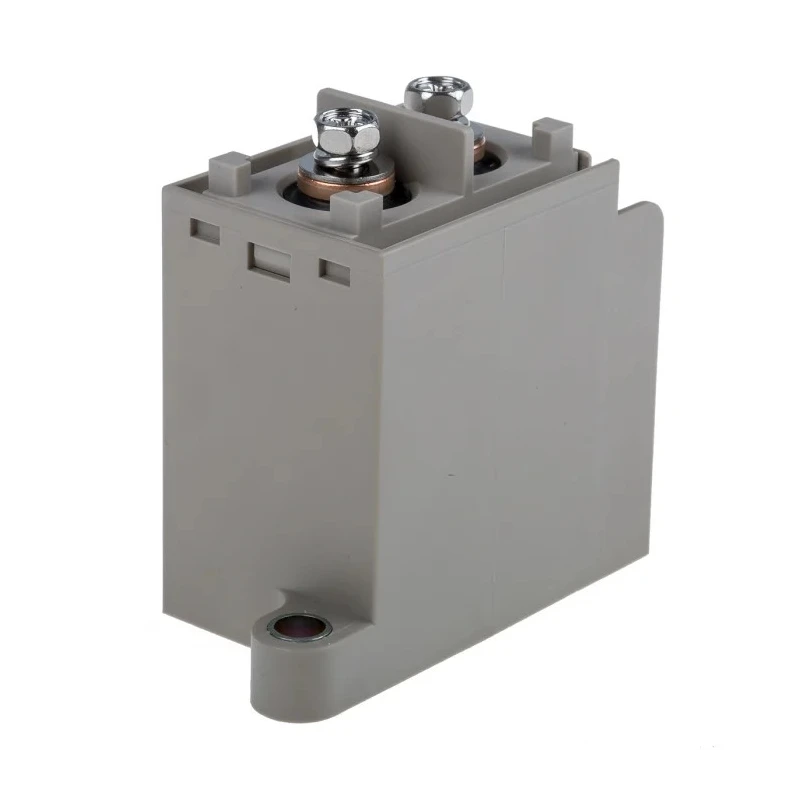

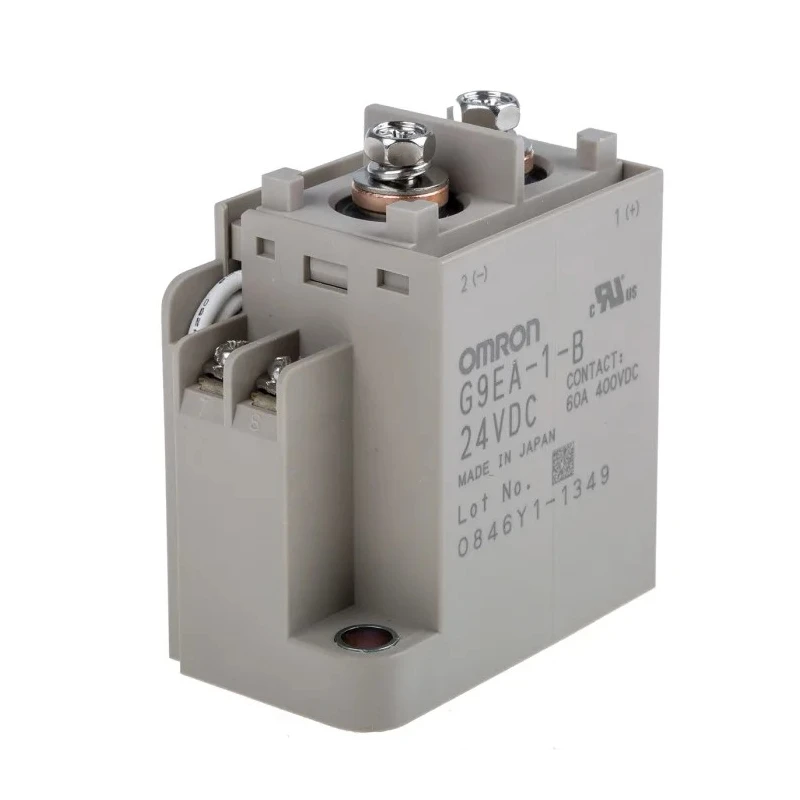

Omron Surface Power Relay 24V dc Coil 100A Switching Current SPST G9EA-1-B DC24

Omron G9EA-1-B DC24 Surface Power Relay is a high-performance non-latching relay designed for industrial and automation applications requiring reliable switching of high current DC loads. The relay features a 24V direct current coil and an SPST contact configuration capable of handling switching currents up to 100A. Its surface mount design with screw terminal connections ensures ease of installation and stable performance.

The relay supports switching voltages of up to 400V for both AC and DC circuits, making it versatile for a wide range of power relay applications. With coil resistance at 115.2 ohms and a coil power rating of 5 watts, it provides precise and efficient actuation. Its compact dimensions (73mm length, 36mm width, and 67.2mm height) allow integration into equipment with space constraints.

Environmental operational parameters include a minimum operating temperature of -40°C and maximum of 70°C, which suits harsh industrial environments. The relay's gas-injected and hermetically sealed contact and driving sections enable interruption of high capacity DC loads safely and with minimal noise. These features make it suitable for use in industrial automation, power distribution systems, and other heavy-duty electrical control environments.

Omron has designed this relay with certifications from UL and CSA, confirming its compliance with international safety and performance standards. Its low contact resistance of 30 milliohms further minimizes energy losses during switching operations.

Constructed for surface mounting with screw terminals for secure connections. Capable of switching DC and AC voltages up to 400V. Compact dimensions of 73mm length, 36mm width, and 67.2mm height. Features a coil resistance of 115.2 ohms and power consumption of 5 watts.

Designed to operate within a temperature range of -40°C to 70°C. Hermetically sealed, gas-injected contact and driving sections ensure safe high-capacity load interruption. Certified to UL and CSA standards for reliability and safety.

This power relay is ideal for applications in industrial manufacturing, electrical automation systems, power supply switching, and controlling DC motor loads requiring robust performance and compact form factor. The Omron G9EA-1-B DC24 relay enhances system reliability by enabling efficient high-current load switching within rigorous operational environments.
