Panasonic PCB Power Relay, 5V DC Coil, 10A Switching Current, SPST ALQ305

Free Delivery in India | Lowest Global Shipping Charges

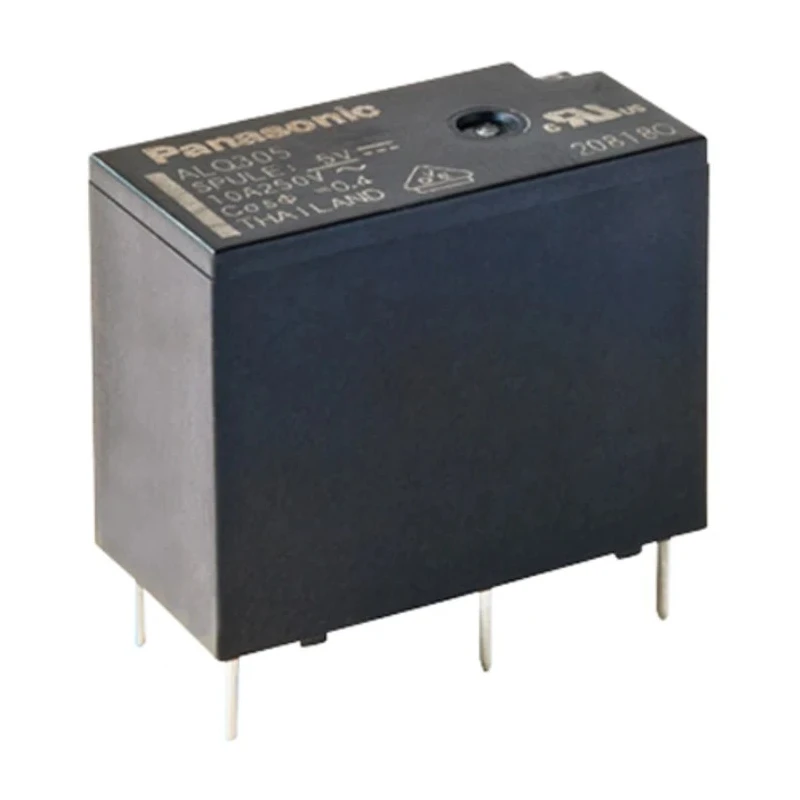

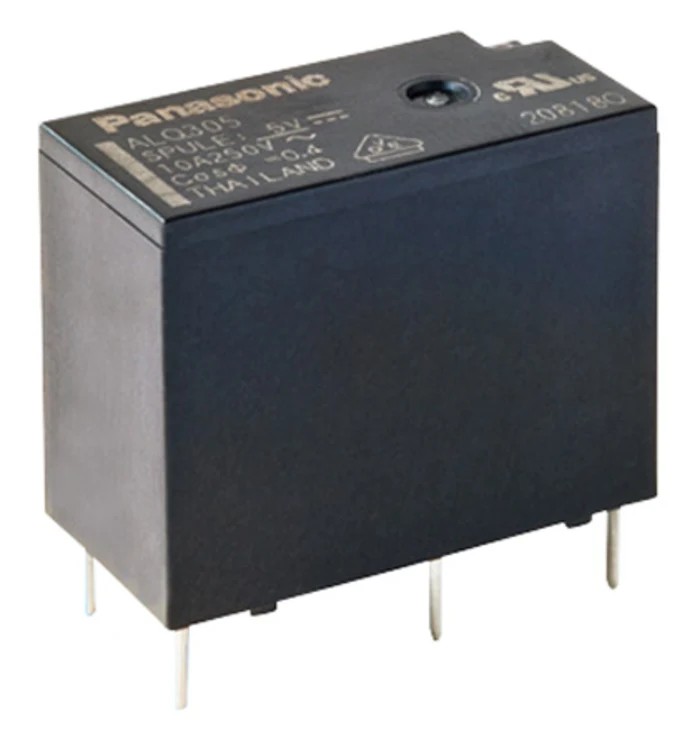

Panasonic PCB Power Relay, 5V DC Coil, 10A Switching Current, SPST ALQ305

Name: Panasonic PCB Power Relay, 5V DC Coil, 10A Switching Current, SPST ALQ305
Brand: Panasonic
SKU: 397696
Price: 2.8 USD
Availability: InStock



Category Power Relay Brand Panasonic Condition New

Specifications

Country of Origin	Thailand
Brand	Panasonic
Height	15.6mm
Length	20mm
Model	ALQ305
Width	10mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	ALQ
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Switching Current	10A
Terminal type	PCB Pin
Ambient Temperature	- 40°C to +85°C
Contact Resistance	100mΩ
Standards/Approvals	RoHS, VDE
Coil Resistance	125Ω
Coil Voltage	5V dc
Switching DC Voltage	30V dc
Switching AC Voltage	250V
Coil Power	200mW
Switching Power	150W
High surge voltage	8000 V
High breakdown voltage	4000 V

Key Features

Compact design suitable for PCB mounting applications.
Coil voltage rating of 5 volts DC ensures low power consumption.
Supports high switching power of 150W for robust performance.
Operating temperature range from -40°C to +85°C for reliable operation under varying conditions.
Silver alloy contact material provides high conductivity and durability.
Features high insulation resistance and breakdown voltage for safety.
Low contact resistance of 100 milliohms ensures efficient switching.
Compliant with RoHS and VDE standards for environmental and safety requirements.

Product Description

Panasonic ALQ305 PCB Power Relay is a compact, high-performance relay designed for printed circuit board applications. This SPST power relay operates with a 5V DC coil voltage and supports a switching current of up to 10A, making it suitable for controlling moderate power loads with reliability and precision.

The relay features a low coil power consumption of 200mW and a coil resistance of 125Ω, making it energy efficient. Its contact configuration is single-pole single-throw (SPST) with a silver alloy contact material, delivering a high switching power of 150 watts. The contact resistance is extremely low at 100 milliohms, which ensures minimal power loss during switching operations.

Designed to operate reliably in harsh environments, the ALQ305 relay supports an ambient temperature range from -40°C to +85°C. It has a high surge voltage capability of 8000 V and a breakdown voltage rating of 4000 V, providing excellent electrical durability and protection against voltage spikes.

This relay is compact with dimensions of 20mm length, 15.6mm height, and 10mm width, allowing integration into densely packed PCB layouts. It features a PCB pin terminal type for secure and easy soldering onto printed circuit boards.

Panasonic's ALQ series relays are widely used across various industries including home appliances like refrigerators, cooking ovens, and washing machines, as well as HVAC systems, industrial equipment, motor control systems, and robotics. The relay’s robust construction and compliance with standards such as RoHS and VDE ensure environmental safety and operational reliability.

Compact size with high switching capacity. Energy-efficient coil with 200mW power consumption. Wide ambient temperature tolerance from -40°C up to +85°C. High surge and breakdown voltages for electrical safety. Durable silver alloy contacts with low resistance.

PCB mounting with secure PCB pin terminals. Compliance with RoHS and VDE standards. Suitable for industrial, appliance, HVAC, and robotics applications. Manufactured in Thailand to high-quality standards. Explore the full range of Panasonic Power Relays on EnvMart to find reliable components for your electrical and automation needs.
