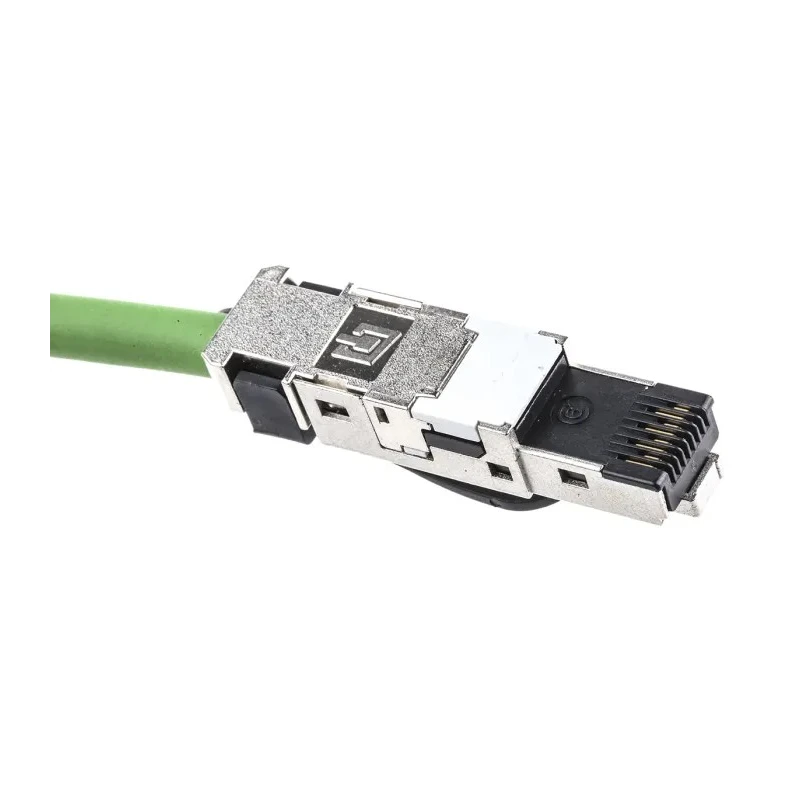

Weidmüller Cat5 Ethernet Cable 4 Core, Green, 1 m Length, SF/UTP Screened, Polyurethane Jacket 1044470010
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 600V |
| Brand | Weidmüller |
| CROSS SECTIONAL AREA | 22AWG |
| Cable Length | 1m |
| Series | IE-C5DD4UG0010MCSA20-E |
| Outside diameter | 6.7mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 4 |
| Conductor Material | Tin Copper Wire |
| Wire Material | DIN EN 13602 Cu-ETP-A |
| Minimum Operating Temperature | -50°C |
| Jacket Material | Polyurethane |
| Shield Type | SF/UTP |
| Standards/Approvals | UL |
| Jacket Colour | Green |
| Fire Behaviour | Halogen Free |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| LAN Category | Cat5 |
| Insulating Material | DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3) |
| Terminated/Unterminated | Terminated |
| Shielding Material | DIN EN 13602 Cu-ETP-A..B |
| Halogen | to IEC 60754-2 |
| Resistance to spread of flame | to IEC 60332-1 |
| Resistance to oils | acc. to IEC 60811-2-1 |
Key Features
- Constructed with stranded tin copper wire for enhanced conductivity.
- Polyurethane green jacket ensures durability and flexibility.
- Screened with SF/UTP for superior electromagnetic interference protection.
- Suitable for operating temperatures from -50°C to 70°C.
- Halogen-free fire behaviour for enhanced safety.
- Compliant with UL and relevant IEC standards.
- Connector system features IP67 M12 plug to IP20 RJ45 plug.
- Outside diameter of cable is 6.7 mm, ideal for industrial environments.
Product Description
Weidmüller 1044470010 Cat5 Ethernet Cable is a high-quality, 4-core Green networking cable designed for industrial and automation applications. Featuring SF/UTP screened shielding and a durable polyurethane jacket, this cable ensures reliable data transmission and protection against electromagnetic interference.
The cable integrates a Cat5 PROFINET Type C M12 plug on one end and a standard IP20 RJ45 plug on the other, facilitating secure connections in demanding environments. Its stranded tin copper conductors offer excellent electrical performance with a voltage rating of 600V.
This Ethernet cable operates efficiently across a wide temperature range from -50°C to +70°C. It complies with essential industry standards including UL, IEC 60754-2 for halogen-free behaviour, IEC 60332-1 resistance to flame spread, IEC 60811-2-1 oil resistance, and IEC 61076-2-101 connector standards, assuring safety and longevity.
With an outside diameter of 6.7 mm and halogen-free polyurethane jacket in green (RAL 6018), it is both robust and flexible for diverse industrial applications such as automation wiring, control cabinets, and network installations.

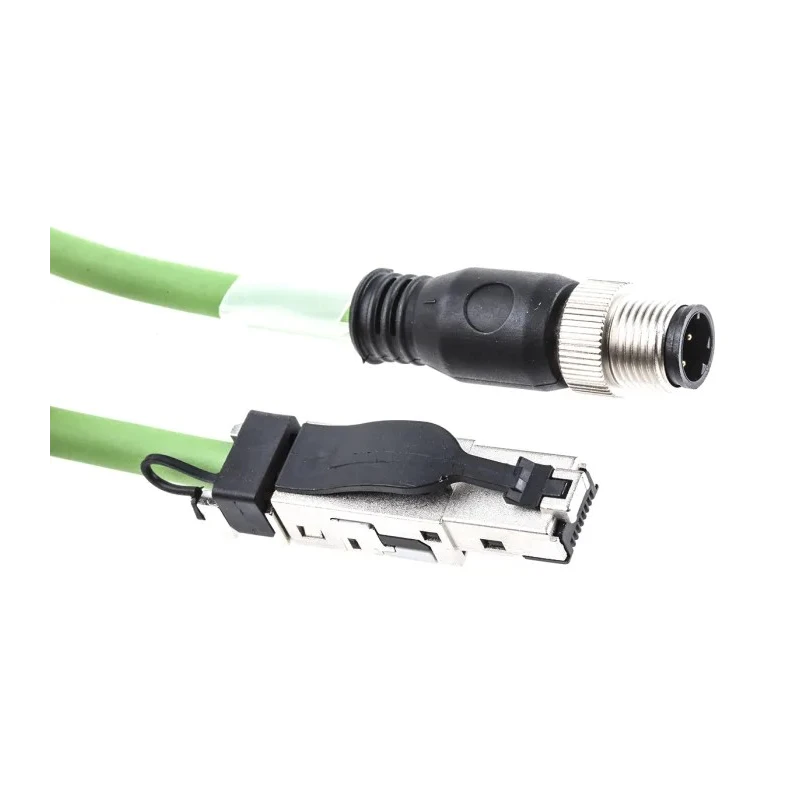

The cable assembly consists of a Type C M12 straight through male plug to RJ45 connector, making it ideal for dragline patch cable requirements. Its shielding material is DIN EN 13602 Cu-ETP-A..B and wire material standard follows DIN EN 13602 Cu-ETP-A, ensuring durability against mechanical and electrical stresses.
Constructed with stranded tin copper wire for enhanced conductivity. Polyurethane green jacket ensures durability and flexibility. Screened with SF/UTP for superior electromagnetic interference protection. Suitable for operating temperatures from -50°C to 70°C.
Halogen-free fire behaviour for enhanced safety. Compliant with UL and relevant IEC standards. Rated voltage is 600V, supporting robust electrical performance. Connector system features IP67 M12 plug to IP20 RJ45 plug. Outside diameter of cable is 6.7 mm, ideal for industrial environments.
This Weidmüller Ethernet cable is optimized for industrial, automation, electrical, and networking use cases, promising top-tier reliability and compliance. Browse EnvMart's extensive Ethernet Cable selection for more industrial-grade networking solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 70°C.
It features SF/UTP shielding for superior electromagnetic interference protection.
The voltage rating is 600V, ensuring robust electrical performance.
The outside diameter of this Ethernet cable is 6.7 mm.
It is constructed with stranded tin copper wire and has a polyurethane jacket.
This cable can operate efficiently in temperatures ranging from -50°C to +70°C.
It features a Type C M12 plug on one end and a standard IP20 RJ45 plug on the other.
Yes, it has halogen-free fire behaviour, complying with IEC 60754-2 standards.
This model is rated as a Cat5 Ethernet cable.
It complies with UL and various IEC standards, including IEC 60332-1 for flame spread resistance.
The conductors are stranded, made from tin copper wire.
It is optimized for industrial, automation, electrical, and networking applications.
