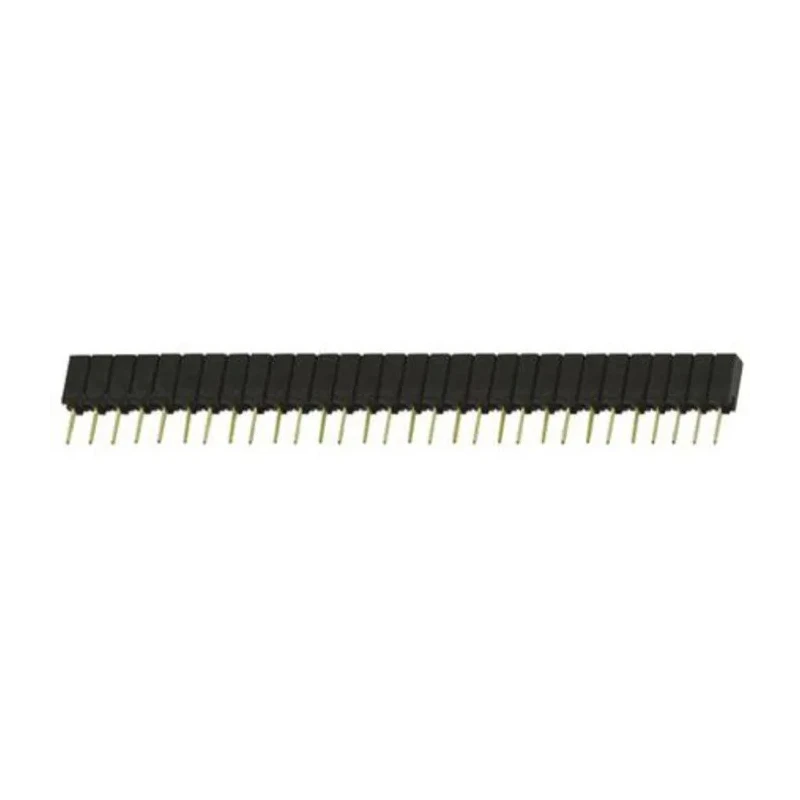

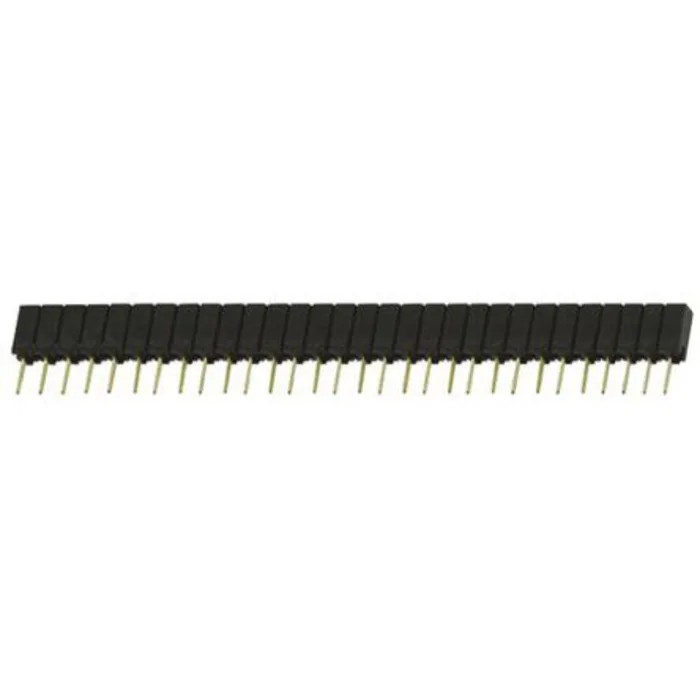

Samtec SSA Series Straight Through Hole PCB Socket 30-Contact 1 Row 2.54 mm Pitch Solder SSA-130-S-G
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | SSA-130-S-G |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Bronze |
| Series | SSA |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Constructed with a high temperature black PET polyester housing rated UL 94 V-0.
- Phosphor bronze double side-swipe contacts plated with 0.25μm gold for reliable conductivity.
- Operating temperature range from -55°C up to 125°C ensuring durability in harsh environments.
- Rated for 12A current with 1 kV voltage withstand capability.
- Designed for through-hole mounting and straight orientation for easy PCB assembly.
- Compatible with multiple Samtec machine board stacking strips and terminal strips.
- Single row, female contact type suitable for board-to-board connector systems.
- Low cost socket with snap strip feature and integrated standoffs.
Product Description
Samtec SSA-130-S-G SSA Series Straight Through Hole PCB Socket is a high-quality 30-contact single-row socket designed for board-to-board connections with a 2.54 mm pitch. It features a black UL 94 V-0 rated PET polyester housing, making it suitable for demanding industrial and electronic applications.
The contacts are made from phosphor bronze with a 0.25μm gold plating, ensuring excellent conductivity and corrosion resistance. This PCB socket supports a continuous current of 12A and withstands operating voltages up to 1 kV. It is rated for an operating temperature range of -55°C to 125°C, allowing reliable performance in extreme conditions.
The straight orientation and through-hole mount type simplify assembly on printed circuit boards. The socket is a female contact type and designed as a single row connector system specifically for board-to-board interfacing, making it ideal for electronics, manufacturing, industrial systems, and power connector setups.
This SSA series socket includes a snap strip feature and standoffs to facilitate installation and mechanical stability during production. It mates with Samtec's TS series screw machine terminal strip, BBS, and BBL machine board stacking strips, enhancing its versatility in modular PCB assembly configurations.
High temperature UL 94 V-0 rated PET polyester housing. Phosphor bronze contacts with gold plating for longevity and performance. Operates reliably from -55°C to 125°C. Rated for 12A current and 1 kV voltage. Through hole and straight orientation mounting.
Single row, 30-contact female contacts for board-to-board connections. Compatible with Samtec TS, BBS, and BBL terminal and stacking strips.
This PCB socket series is widely applicable in electronics manufacturing, power distribution systems, and industrial automation requiring durable and reliable board-to-board connectors. Explore more high-quality PCB connectors and sockets at EnvMart.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 12A.
This PCB socket has a voltage withstand capability of 1 kV.
It operates reliably within a temperature range of -55°C to 125°C.
The socket is designed for through-hole mounting.
The pitch size of the contacts is 2.54 mm.
The housing is made of high temperature black PET polyester, and the contacts are made of phosphor bronze with gold plating.
This model features 30 contacts in a single row.
Yes, it is designed specifically for board-to-board connections.
The contact gender of this socket is female.
Yes, it includes a snap strip feature and integrated standoffs for mechanical stability during installation.
It is compatible with Samtec's TS series screw machine terminal strips, as well as BBS and BBL machine board stacking strips.
The country of origin for this model is India.
