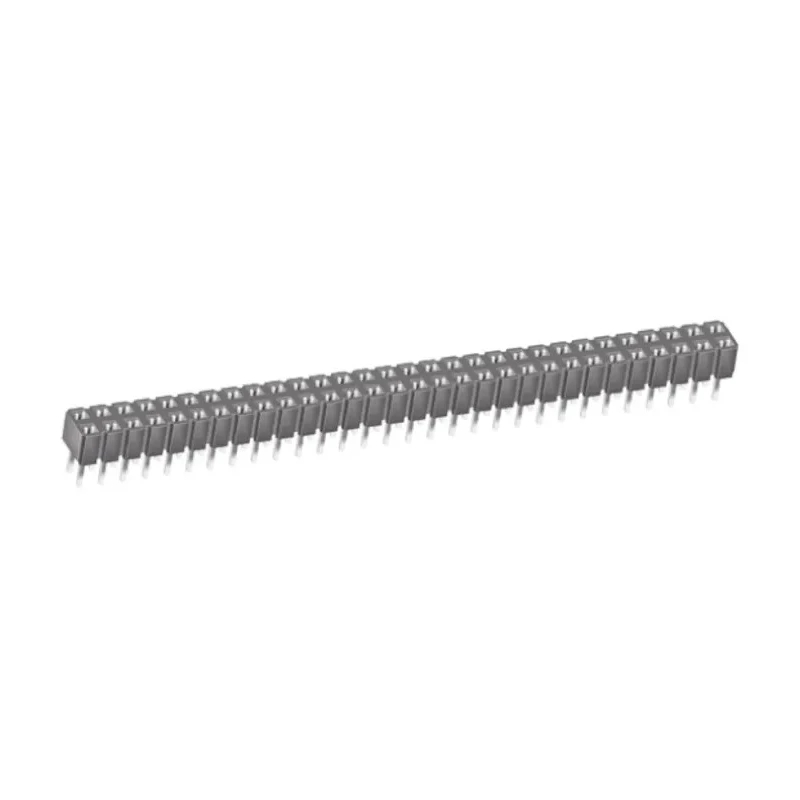

Samtec CES Series Straight Through Hole PCB Socket 60-Contact 2 Row 2.54mm Pitch Through Hole CES-130-01-T-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 333V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | CES-130-01-T-D |
| Mount Type | Through Hole |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Bronze |
| Series | CES |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 60 |
| Connector System | Board-to-Board |
| TLW series low profile square post headers | see stock number 765-6168 typically |
| TSM series square post headers | see stock number 765-6613 typically |
| TSW series square post headers | see stock number 767-1044 typically |
Key Features
- The socket features black glass filled polyester housing for durability.
- Contacts are made of bronze and plated with tin for reliable conductivity.
- Designed for a maximum operating temperature of 105°C and a minimum of -55°C.
- It supports a current rating up to 12A and a voltage of 333V.
- Termination and mount type is through hole ensuring strong mechanical bonding.
- Its low profile design with 3.25 mm solder tail aids compact PCB layouts.
- Compatible with various Samtec square post header series for versatile mating options.
Product Description
Samtec CES-130-01-T-D is a high-quality board-to-board PCB socket featuring 60 contacts arranged in 2 rows with a 2.54 mm pitch. The straight through hole design facilitates robust electrical connections suitable for demanding industrial and electronic applications.
This socket utilizes a black glass filled polyester housing material that ensures mechanical strength and heat resistance. Contacts are manufactured from phosphor bronze and plated with matte tin to offer excellent conductivity and corrosion resistance. It operates reliably within a temperature range of -55°C to +105°C and supports current up to 12A and voltage up to 333V.
The through hole termination and mounting provide secure and durable solder joints necessary for industrial environments. Its compact design with a low profile and 3.25 mm solder tail supports space-saving PCB configurations for electronics manufacturing.
The CES series is compatible with multiple Samtec header families including TLW, TSM, and TSW series square post headers, expanding its connectivity options.
This product is fully RoHS compliant and ideal for use in electronics manufacturing, industrial automation, power connectors, and PCB assembly applications where reliable board-to-board connection is critical.
The socket features black glass filled polyester housing for durability. Contacts are made of bronze and plated with tin for reliable conductivity. Designed for a maximum operating temperature of 105°C and a minimum of -55°C.
It supports a current rating up to 12A and a voltage of 333V. Termination and mount type is through hole ensuring strong mechanical bonding. Its low profile design with 3.25 mm solder tail aids compact PCB layouts. Compatible with various Samtec square post header series for versatile mating options.
Explore the Samtec CES series on EnvMart to find compatible connectors and support your PCB assembly and electronic design requirements.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a maximum current rating of 12A.
The voltage rating for this model is 333V.
It operates reliably within a temperature range of -55°C to 105°C.
The housing is made of black glass filled polyester, while the contacts are made of bronze and plated with tin.
This socket features 60 contacts arranged in 2 rows.
It uses a through hole termination type, ensuring strong mechanical bonding.
It is compatible with Samtec TLW, TSM, and TSW series square post headers.
The pitch size for this model is 2.54 mm.
The orientation of this socket is straight.
Yes, this PCB socket is fully RoHS compliant.
The solder tail has a low profile design with a length of 3.25 mm.
The country of origin for this product is India.
