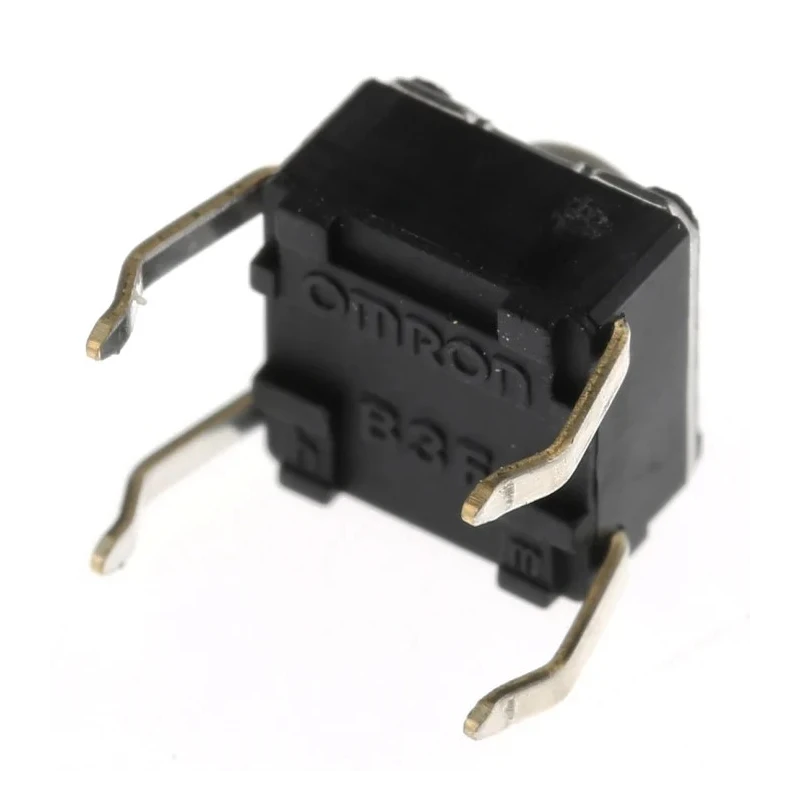

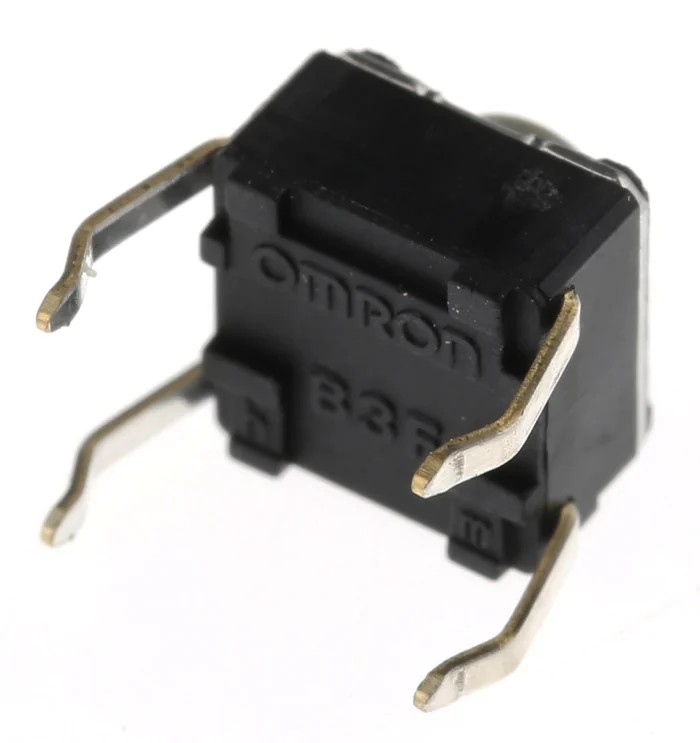

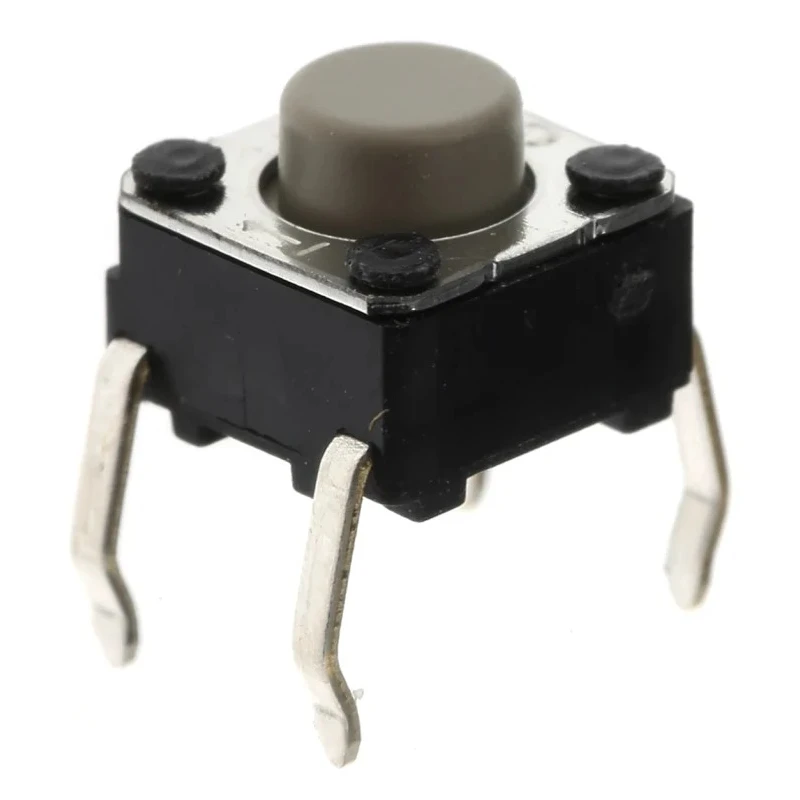

Omron Grey Tactile Switch Plunger 0.7 mm SPST 50mA 24 V dc Through Hole B3F-1022
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 5mm |
| Length | 6mm |
| Model | B3F-1022 |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | B3F |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Switch Configuration | (On)-Off |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Grey |
| Actuator Length | 0.7mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Plunger |
| Actuator Orientation | Straight |
| Switch Contact Current | 50mA |
| Operating Force | 1.47N |
| Mechanical Life | 300000Operations |
Key Features
- The switch features a grey plunger actuator with a straight orientation.
- Its compact dimensions measure 6 mm length, 6 mm width, and 5 mm height.
- Operates at 24 V dc voltage with a maximum current of 50 mA for reliable low-power switching.
- Designed for through-hole mounting with solder terminals for secure connections.
- Offers mechanical durability with a life expectancy of 300,000 operations.
- The operating force is 1.47 Newtons, providing a positive tactile feedback click.
- This switch functions within a temperature range of -25°C to 70°C, meeting RoHS compliance.
- Ideal for use in audio, office, communication equipment, measuring instruments, and household electronics.
Product Description
The Omron B3F-1022 is a high-quality grey tactile switch plunger with a compact form factor of 6 x 6 x 5 mm and a 0.7 mm actuator length. It employs a single pole single throw (SPST) momentary switch configuration, suitable for precise on-off control.
Operating at 24 V dc and a maximum current rating of 50 mA, this switch is designed for through-hole solder mounting ensuring robust electrical connectivity. The actuator features a straight plunger style in grey color, enabling clear tactile feedback with an operating force of 1.47 N and a distinct positive click.
With a mechanical life rated at 300,000 actuations, the B3F-1022 provides long-lasting reliability under moderate operating conditions. It functions efficiently across a wide temperature range of -25°C to 70°C and complies with RoHS standards, affirming its environmental safety.
This Tactile Switch is widely applicable in industrial, laboratory, and consumer electronics such as audio devices, communications, office instruments, televisions, and measuring equipment.
The grey actuator provides durable and responsive tactile feedback. The 6 mm square footprint suits compact PCB designs. Through-hole solder terminals enhance mounting durability and stability. High cycle life supports extended product longevity.
Versatile usage in electronic control panels and user interface devices.
Manufactured in Japan by Omron, this switch represents quality and precision engineered for demanding applications. Explore more tactile and keyboard switches at EnvMart for diverse industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this tactile switch is 50 mA.
This model operates at a contact DC voltage of 24 V dc.
The dimensions of this tactile switch are 6 mm in length, 6 mm in width, and 5 mm in height.
The mechanical life expectancy of this switch is rated at 300,000 operations.
It is designed for through-hole mounting with solder terminals for secure connections.
The operating force required for this switch is 1.47 Newtons.
This model functions efficiently within a temperature range of -25°C to 70°C.
The contact configuration of this switch is SPST (Single Pole Single Throw).
The actuator style of this model is a plunger with a straight orientation.
Yes, this switch complies with RoHS standards, affirming its environmental safety.
This tactile switch is suitable for use in audio devices, communication equipment, office instruments, televisions, and measuring equipment.
The B3F-1022 is manufactured in Japan.
