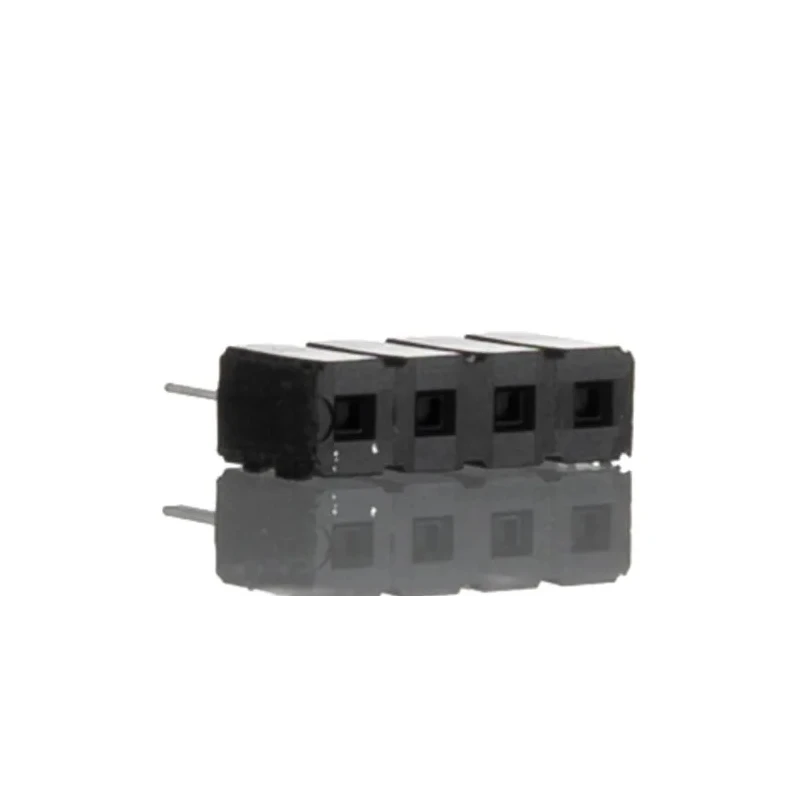

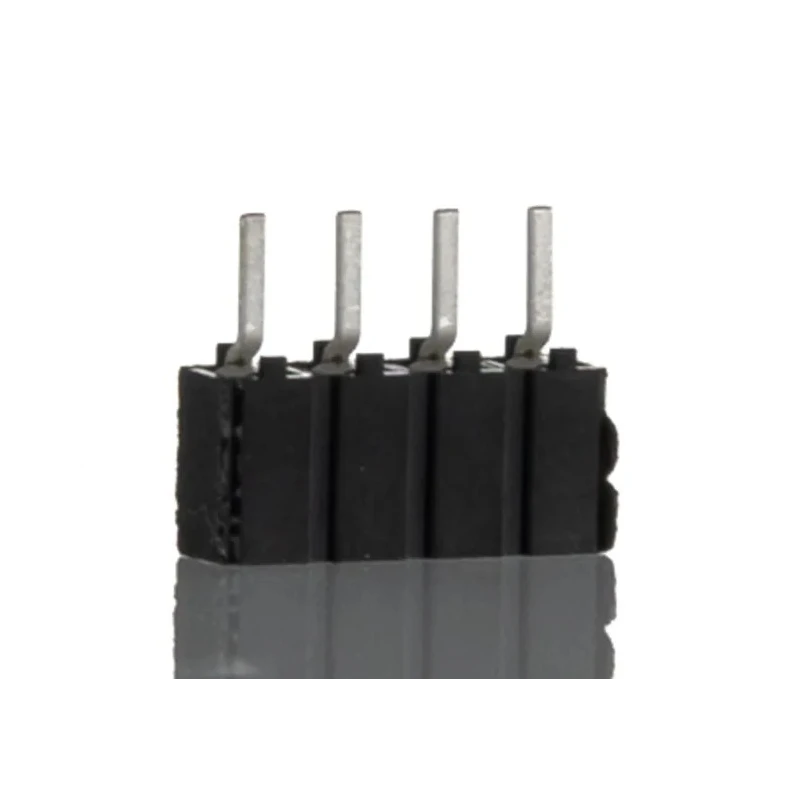

Samtec CES Series 4-Contact Straight Through Hole PCB Socket 2.54 mm Pitch, 5.5A Current CES-104-01-T-S

Samtec CES-104-01-T-S is a precision-engineered 4-contact straight through hole PCB socket from the CES series, offering a 2.54 mm pitch designed for board-to-board electrical connections. The socket provides a compact, low-profile design suitable for diverse electronic applications requiring dependable connectors.

Its housing material is black glass filled polyester, which provides mechanical strength and insulation. The contacts are made of bronze with a matte tin plating that enhances conductivity and corrosion resistance, ensuring stable and efficient electrical signal transmission in demanding environments.

The device is rated to carry currents up to 5.5 amperes and voltages of 400 volts AC, making it suitable for high current and high voltage board assemblies. With through-hole mounting type and straight orientation, this socket allows straightforward PCB soldering and secure attachment, reducing assembly complexity and improving production efficiency.

Operating temperature range from -55°C to 105°C ensures performance stability across industrial and commercial settings. The product complies with RoHS standards, underscoring its environmental safety and suitability for global manufacturing requirements.

Commonly used in automation systems, control equipment, consumer electronics, and electrical assemblies, the Samtec CES Series PCB socket is a versatile connector solution for demanding industrial and commercial electronic applications.

The socket features a single row with four contacts for a compact connection solution. Constructed from black glass filled polyester housing with bronze contacts plated in matte tin for reliable conductivity. Supports a current rating of 5.5A and voltage rating of 400V AC suitable for demanding electronic applications.

Through-hole mounting ensures secure and stable soldered connections on PCBs. Operates reliably in temperatures ranging from -55°C to 105°C for enhanced durability. RoHS compliant, ensuring environmentally friendly manufacturing standards.

Straight body orientation simplifies installation and reduces assembly time. Compatible with various board-to-board connector systems and widely used in automation equipment and consumer electronics.
