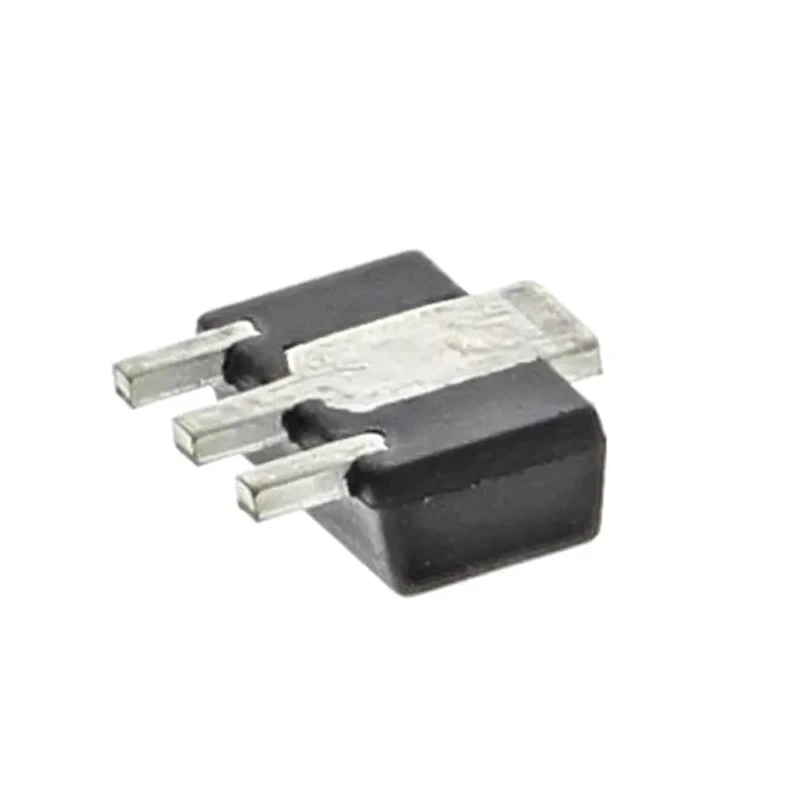

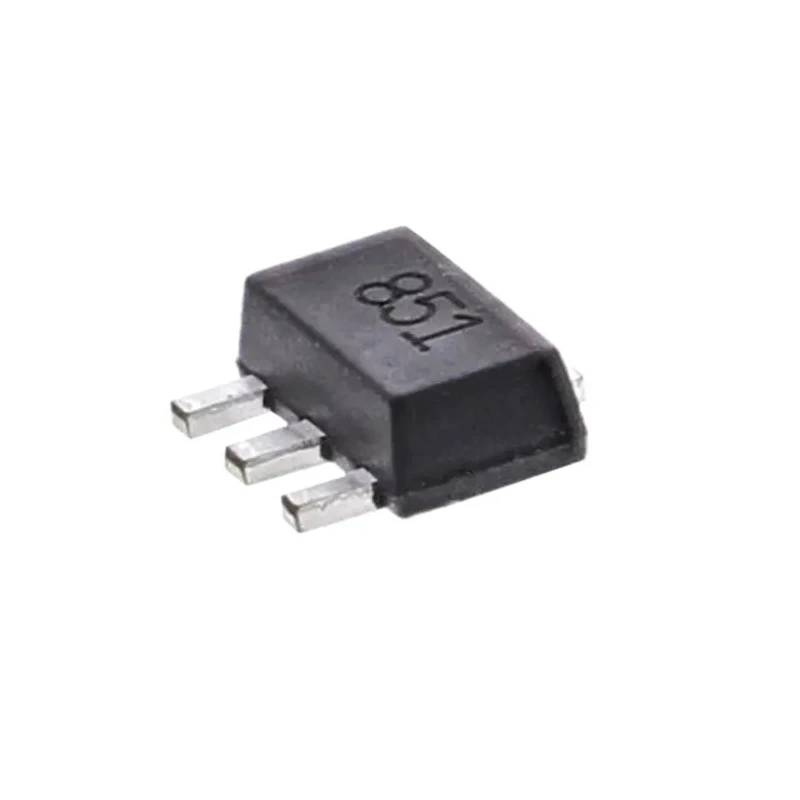

DiodesZetex General Purpose NPN Transistor 5 A, 60 V, 3-Pin SOT-89, Surface Mount ZXTN2010ZTA

DiodesZetex ZXTN2010ZTA is a high-performance general purpose NPN bipolar transistor designed for switching and amplification applications. It features a maximum DC collector current of 5 A and can withstand collector-emitter voltages up to 60 V, making it suitable for medium power applications in industrial, automotive, and consumer electronics sectors.

The transistor is housed in a compact 3-pin SOT-89 surface mount package, providing excellent thermal performance with a maximum power dissipation rating of 2.1 W. This package style facilitates efficient soldering and space-saving PCB layouts.

Key electrical characteristics include a minimum current gain (hFE) of 20 and a high transition frequency (ft) of 130 MHz, enabling it to perform well in high-speed switching circuits. Voltage ratings include a maximum collector-base voltage of 150 V and emitter-base voltage of 7 V, ensuring safe operation within design limits.

The device complies with automotive standard AEC-Q101, signifying its ruggedness and suitability for use in demanding automotive environments. It supports an operating temperature range from -55°C to 150°C, allowing deployment in extreme ambient conditions.

Physical dimensions are compact, with a length of 4.6 mm, width of 4.25 mm, and height of 1.6 mm, making it a versatile choice for space-constrained PCB designs. The transistor is ideal for use in industrial electronic circuits, automotive control systems, telecommunications, and power management applications.

It is excellent for PCB mount manufacturing processes requiring surface-mount devices with reliable performance and consistent gain. Specifications are crafted to support general-purpose switching and amplification with robust electrical endurance.

Particularly suited for use in discrete transistor arrays and as a replacement or upgrade in legacy designs. The SOT-89 package ensures standardized footprint compatibility for widespread manufacturing accessibility. Explore additional DiodesZetex Bipolar Transistors and related semiconductor components on EnvMart for varied electronic design and industrial needs.
