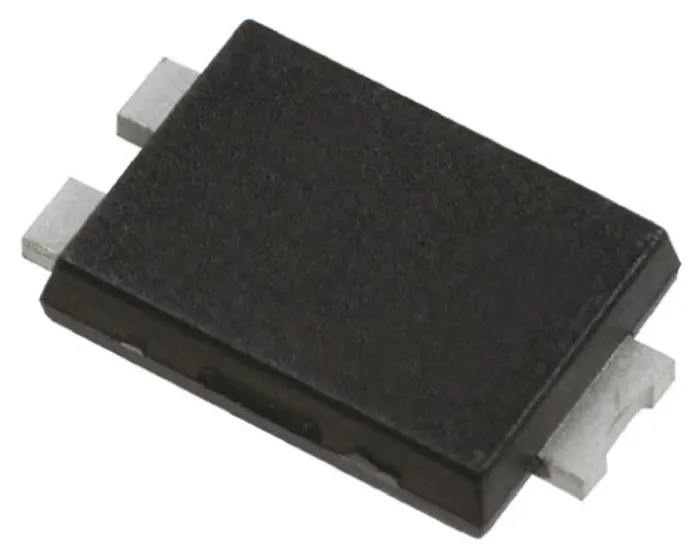

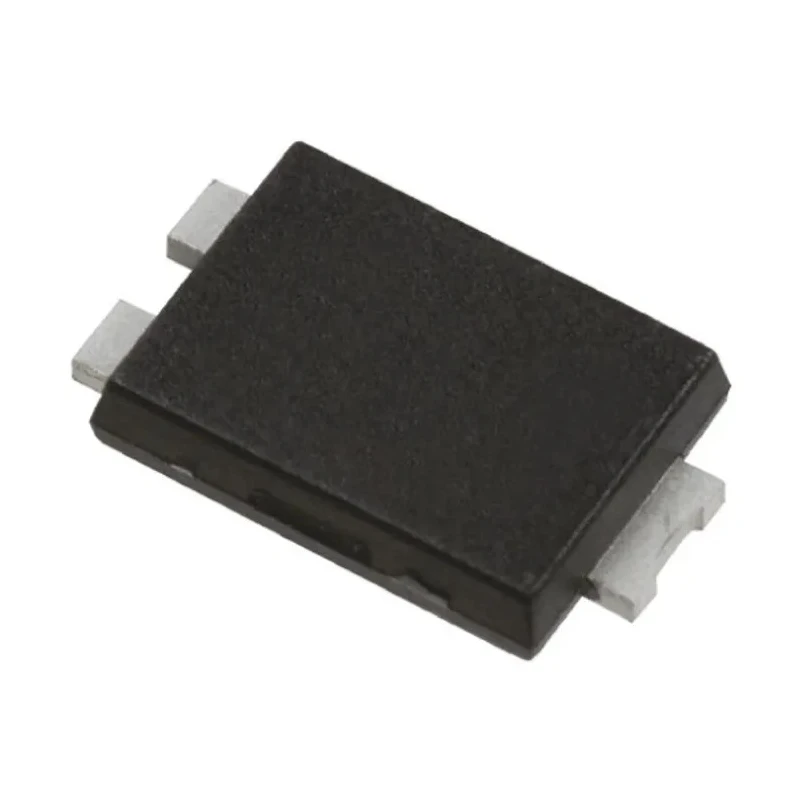

DiodesZetex Surface Mount 60 V 7 A Schottky Diode PowerDI5 3-Pin PDS760-13
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.15mm |
| Length | 4.05mm |
| Model | PDS760-13 |
| Width | 5.45mm |
| Mount Type | Surface |
| Series | PDS760 |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerDI5 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | FBI |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 7A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 275A |
| Maximum Forward Voltage Vf | 620mV |
Key Features
- Surface mount diode with a PowerDI5 package for easy PCB integration.
- Maximum continuous forward current of 7 amperes ensuring robust current handling capability.
- Peak reverse repetitive voltage rating of 60 volts suitable for various electronic applications.
- Features a low maximum forward voltage of 620 millivolts to improve efficiency.
- Operates over a wide temperature range from -65°C to 150°C for demanding environments.
- Single diode configuration with three pins for stable connectivity.
- Peak non-repetitive forward surge current of 275 amperes to withstand transient conditions.
- Certified to the automotive standard AEC-Q101 ensuring automotive-grade quality.
Product Description
DiodesZetex PDS760-13 Schottky Diode is a surface mount device designed for power applications requiring efficient rectification with low forward voltage drop. Housed in a compact PowerDI5 3-pin package, it offers a maximum continuous forward current of 7 A and a peak reverse repetitive voltage of 60 V, enabling reliable operation in industrial, automotive, and consumer electronics.
This diode features an exceptionally low maximum forward voltage of 620 mV which enhances circuit efficiency by minimizing power loss. It operates reliably within a temperature range spanning from -65°C to a maximum of 150°C, accommodating demanding environments and automotive-grade requirements confirmed by AEC-Q101 certification.
The device has a peak non-repetitive forward surge current rating of 275 A, providing robustness against transient surges. Its compact dimensions (4.05mm length, 5.45mm width, and 1.15mm height) allow for space-efficient PCB layouts. The single diode configuration with three pins facilitates straightforward circuit design.
Ideal for industrial, automotive, manufacturing, and electronic power supply use cases, the PDS760-13 diode ensures high reliability and stable performance. Manufactured in China, it adheres to rigorous standards suitable for modern electronics and automotive industry applications.
Surface mount PowerDI5 package for easy assembly. Maximum continuous forward current: 7 A for reliable power handling. Peak reverse voltage: 60 V supports broad voltage applications. Low forward voltage of 620 mV to reduce energy loss.
Wide operating temperature range from -65°C up to 150°C. Single diode with 3 pins for stable circuit integration. High surge current tolerance of 275 A for transient protection. Automotive-grade AEC-Q101 certified for vehicle electronics.
Compact size optimizes PCB space usage. Manufactured in compliance with industry standards in China.
Explore more in our Semiconductor and Schottky Diode categories at EnvMart for high-quality electronic components suitable for power electronics, automotive systems, and electronic design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the PDS760-13 Schottky diode is 7 amperes.
This model has a peak reverse repetitive voltage rating of 60 volts, making it suitable for various electronic applications.
The diode features a low maximum forward voltage of 620 millivolts, which helps to improve circuit efficiency.
It operates over a wide temperature range from -65°C to 150°C, accommodating demanding environments.
The PDS760-13 has a single diode configuration with three pins for stable connectivity.
The peak non-repetitive forward surge current rating of this diode is 275 amperes, providing robustness against transient conditions.
It is housed in a compact PowerDI5 package, which facilitates easy PCB integration.
Yes, it is certified to the automotive standard AEC-Q101, ensuring its suitability for automotive-grade quality.
The dimensions of this model are 4.05 mm in length, 5.45 mm in width, and 1.15 mm in height.
This model is a Schottky rectifier, designed for efficient rectification with low forward voltage drop.
This diode is manufactured in China, adhering to rigorous industry standards.
The peak reverse current for the PDS760-13 is rated at 20 milliamperes.
