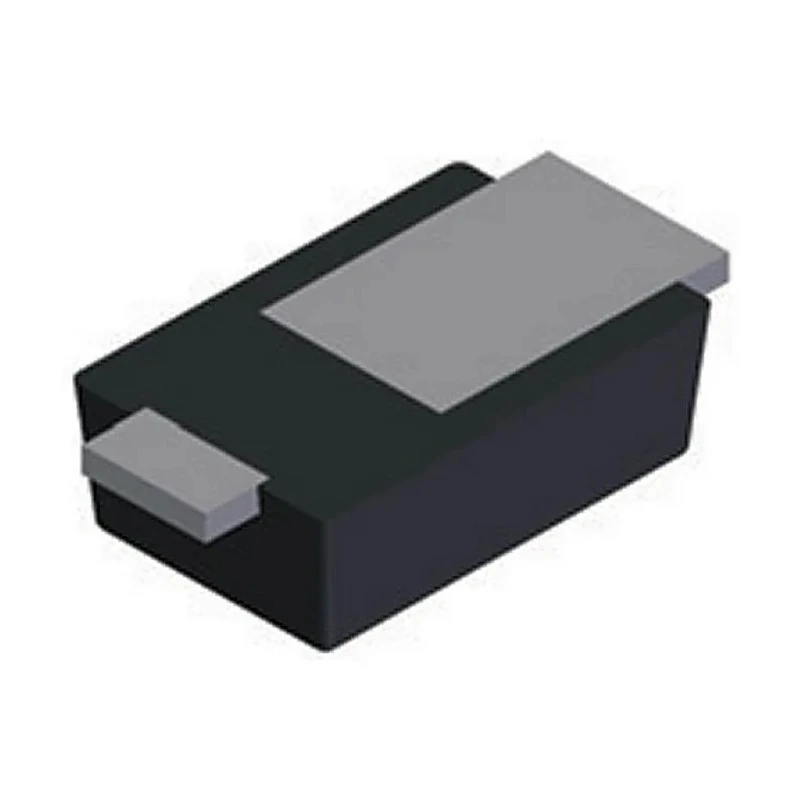

DiodesZetex Schottky Diode 30 V 2 A Surface Mount PowerDI323 PD3S230L-7

DiodesZetex PD3S230L-7 Schottky Diode is specifically engineered for applications requiring efficient rectification with low forward voltage drop and high surge capability. Packaged in a compact PowerDI323 surface mount format, it supports a continuous forward current of 2 A and can withstand peak reverse voltages up to 30 V.

The device’s temperature tolerance ranges from -65°C to 125°C, making it suitable for harsh industrial and automotive environments. Its compliance with the AEC-Q101 automotive standard underscores its reliability for automotive system use.

Its 2-pin, single diode configuration simplifies integration into power circuits, offering minimal leakage current at 1.5 mA peak reverse current and robust surge current capacity of 30 A to handle transient events.

With dimensions measuring 1.95 mm in length, 1.3 mm in width, and 0.7 mm in height, the PD3S230L-7 facilitates compact PCB layout designs while maintaining excellent thermal and electrical characteristics.

This diode features a maximum continuous forward current of 2 A. It has a peak reverse repetitive voltage rating of 30 V suitable for power applications. The device exhibits a low forward voltage drop of 450 mV, enhancing efficiency.

Operating temperature ranges from -65°C to 125°C ensuring reliability in diverse environments. The diode supports a peak non-repetitive forward surge current of 30 A for transient conditions. Its compact dimensions are 1.95 mm length, 1.3 mm width, and 0.7 mm height.

This component meets Automotive Standard AEC-Q101 for high reliability in automotive systems. Peak reverse current specification is 1.5 mA minimizing leakage. It is a single diode configuration with 2 pins suitable for surface mounting.

Ideal for industrial, automotive, and power electronics applications, the PD3S230L-7 provides reliable and efficient performance. Explore the Electronics & Electricals category at EnvMart for more semiconductor and diode solutions.
