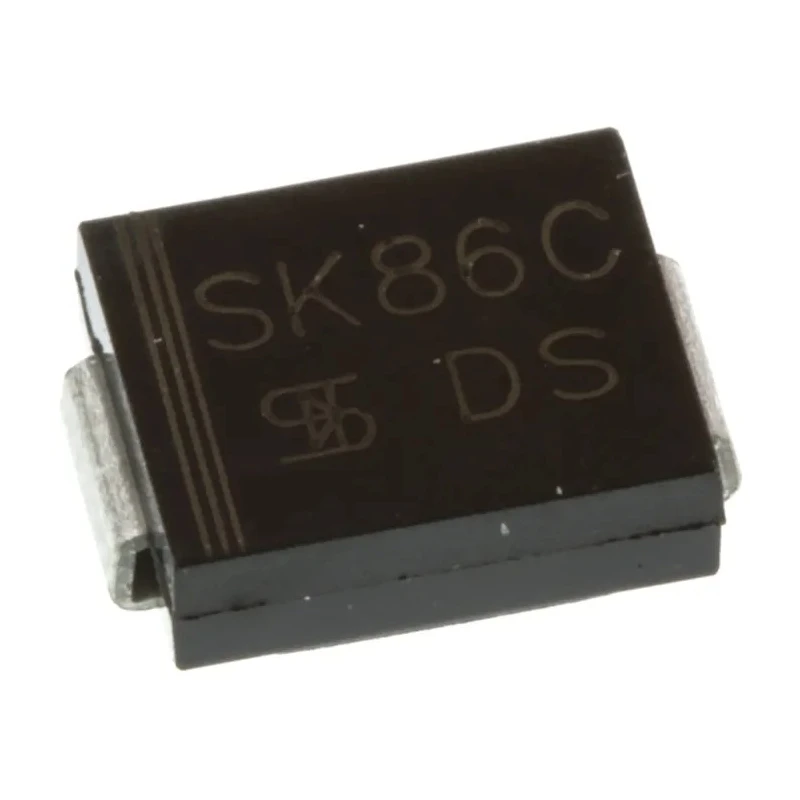

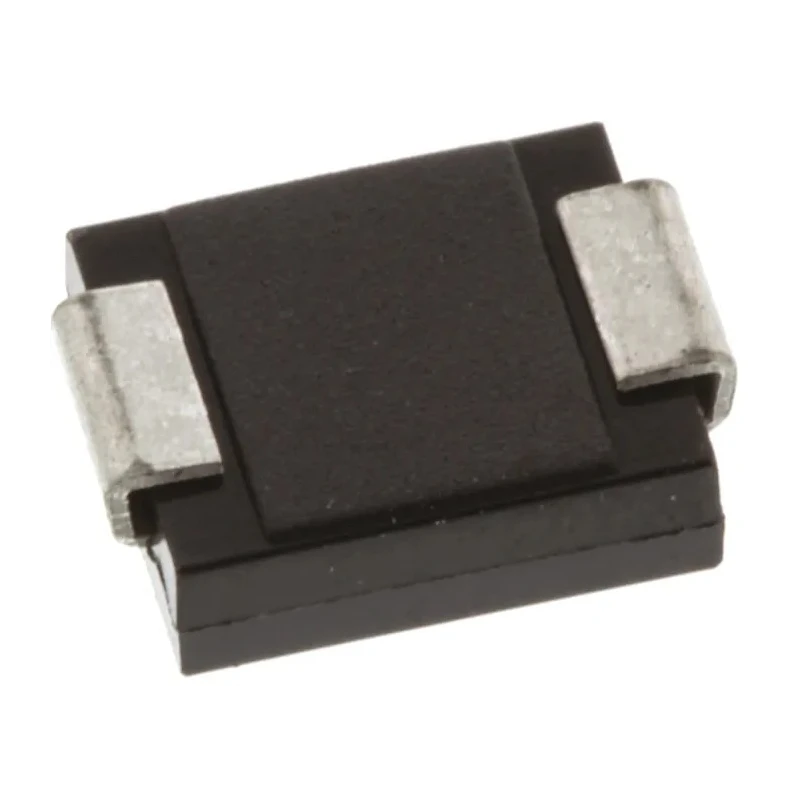

Taiwan Semiconductor 60 V 8 A Schottky Barrier Diode Surface Mount DO-214AB 2-Pin SK86C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SK86C |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | SK86C |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 750mV |
Key Features
- Compact surface mount design for easy PCB integration.
- Supports maximum continuous forward current of 8 Amps.
- Peak reverse repetitive voltage rating of 60 Volts ensures reliable blocking performance.
- Low forward voltage drop of 750 millivolts minimizes power loss.
- Operates within temperature range of -55°C to 150°C for robust thermal endurance.
- Handles peak non-repetitive forward surge current up to 150 Amps.
- Single diode configuration with 2 pins in DO-214AB package.
- Package dimensions approximately 7.11 mm length, 6.22 mm width, and 2.42 mm height.
Product Description
Taiwan Semiconductor SK86C is a high-performance Schottky barrier diode designed for efficient power conversion and rectification in electronics and industrial applications. This device features a 2-pin surface mount DO-214AB (SMC) package optimized for compact PCB layouts and high current carrying capability.
With a maximum continuous forward current of 8 amperes and peak reverse repetitive voltage of 60 volts, SK86C offers excellent blocking capability while maintaining low forward voltage drop of 750 millivolts to reduce power dissipation. It supports a wide operating temperature range from -55°C to 150°C, making it suitable for use in harsh environments.
Its robust peak non-repetitive forward surge current of 150 amperes ensures resilience against transient conditions commonly encountered in power circuits. The diode is single configured with 2 pins, and package dimensions measuring 7.11 mm length, 6.22 mm width, and 2.42 mm height supports easy surface mounting.
This Schottky diode, manufactured in China, is ideal for applications including power supply rectifiers, freewheeling diodes in inductive loads, and protection circuits in industrial, electronics manufacturing, and commercial environments.
Compact surface mount DO-214AB package facilitating efficient PCB integration. Maximum continuous forward current of 8A for high current applications. Peak reverse repetitive voltage of 60V for reliable voltage blocking.
Low forward voltage drop reduces power loss and heat generation. Wide operating temperature range (-55°C to 150°C) for rugged use. High surge current rating of 150A for transient protection. Single diode configuration with 2-pin design.
Precise package dimensions supporting standardized mounting. Manufactured in China with new product condition assurance. Suited for industrial, electronics, HVAC, and power management systems. Explore our full range of Schottky Diodes and rectifiers on EnvMart for your semiconductor and power component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 8 amperes.
It has a peak reverse repetitive voltage rating of 60 volts.
The forward voltage drop is 750 millivolts, which helps minimize power loss.
This unit operates within a temperature range of -55°C to 150°C.
The package dimensions are approximately 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
It can handle a peak non-repetitive forward surge current of up to 150 amperes.
The SK86C has a single diode configuration with 2 pins.
This model supports surface mounting, making it suitable for compact PCB layouts.
The peak reverse current is rated at 10 milliamperes.
It is suitable for applications such as power supply rectifiers, freewheeling diodes in inductive loads, and protection circuits.
This model is a Schottky barrier diode, designed for efficient power conversion and rectification.
This Schottky diode is manufactured in China.
