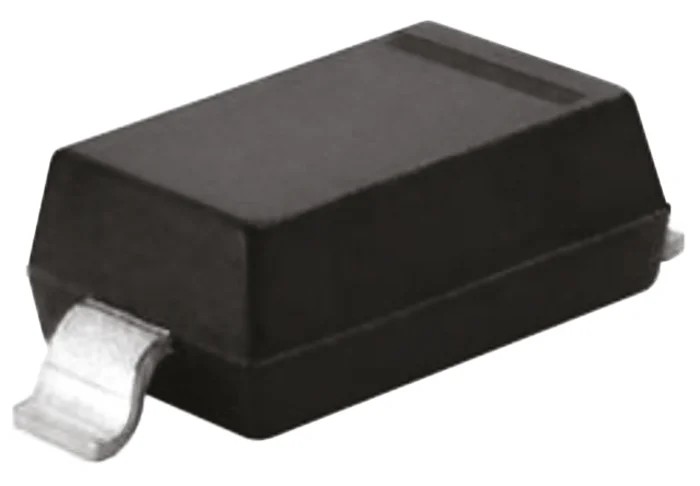

Taiwan Semiconductor 20 V 500 mA Surface Mount Schottky Diode 2-Pin SOD-123 B0520LW RHG

Free Delivery in India | Lowest Global Shipping Charges

Taiwan Semiconductor 20 V 500 mA Surface Mount Schottky Diode 2-Pin SOD-123 B0520LW RHG

Name: Taiwan Semiconductor 20 V 500 mA Surface Mount Schottky Diode 2-Pin SOD-123 B0520LW RHG
Brand: Taiwan Semiconductor
SKU: 362461
Price: 0.1 USD
Availability: InStock



Category Schottky Diode Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Brand	Taiwan Semiconductor
Height	1.25mm
Length	2.8mm
Model	B0520LW RHG
Width	1.7mm
Mount Type	Surface
Series	B0520LW
Maximum Operating Temperature	125°C
Package Type	SOD-123
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Continuous Forward Current If	500mA
Peak Reverse Repetitive Voltage Vrrm	20V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	250μA
Peak Non-Repetitive Forward Surge Current Ifsm	5.5A
Maximum Forward Voltage Vf	385mV

Key Features

This diode features a surface mount design for easy PCB integration.
It has a low forward voltage drop of 385 mV for efficient performance.
The device supports a peak non-repetitive surge current of 5.5 A.
Operating temperature range spans from -65°C to 125°C.
The diode has a 2-pin configuration optimized for Schottky barrier applications.
Compact dimensions of 2.8 mm length, 1.7 mm width, and 1.25 mm height facilitate space-saving PCB layouts.
Low peak reverse current of 250 μA reduces leakage in circuits.
Robust design suitable for industrial, automotive, and consumer electronic applications.

Product Description

Taiwan Semiconductor B0520LW RHG Schottky Diode is a low-power loss diode designed for surface mount applications in discrete semiconductor devices. It handles a maximum continuous forward current of 500 mA and offers a peak reverse repetitive voltage of 20 V, packaged in the industry-standard SOD-123 format.

This Schottky Diode provides low forward voltage drop of 385 mV, enhancing energy efficiency in power management systems. It withstands peak non-repetitive forward surge currents up to 5.5 A, which is useful in transient conditions common in industrial and electronic equipment.

The diode operates reliably across a broad temperature range from -65°C to 125°C, making it suitable for automotive, industrial, and consumer electronic applications. With a compact two-pin package measuring 2.8 mm by 1.7 mm by 1.25 mm, it integrates easily onto PCBs for space-constrained designs.

Key electrical parameters include a peak reverse current of 250 µA, ensuring minimal leakage and improved performance in rectifier circuits. Designed specifically with Schottky barrier technology, this diode delivers efficient switching and rectifying properties.

Common applications include power supplies, voltage clamping, reverse polarity protection, and fast switching circuits across electronics, semiconductor, and power management systems.

This diode features a surface mount design for easy PCB integration. It has a low forward voltage drop of 385 mV for efficient performance. The device supports a peak non-repetitive surge current of 5.5 A. Operating temperature range spans from -65°C to 125°C.

The diode has a 2-pin configuration optimized for Schottky barrier applications. Compact dimensions of 2.8 mm length, 1.7 mm width, and 1.25 mm height facilitate space-saving PCB layouts. Low peak reverse current of 250 μA reduces leakage in circuits.

Robust design suitable for industrial, automotive, and consumer electronic applications. Explore the comprehensive selection of semiconductor components and power management devices in the Electronics & Electricals category at EnvMart.
