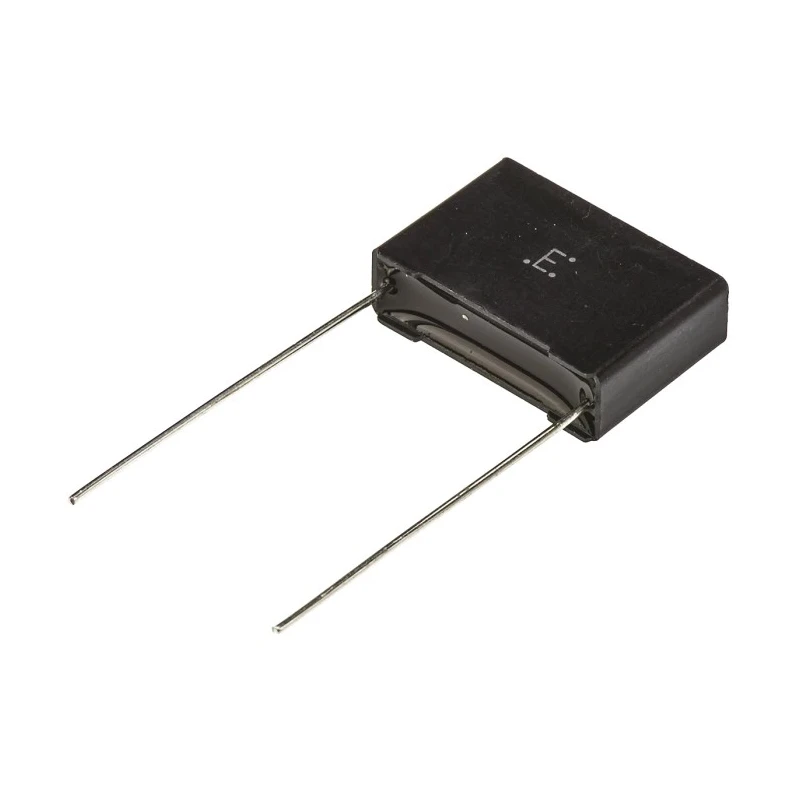

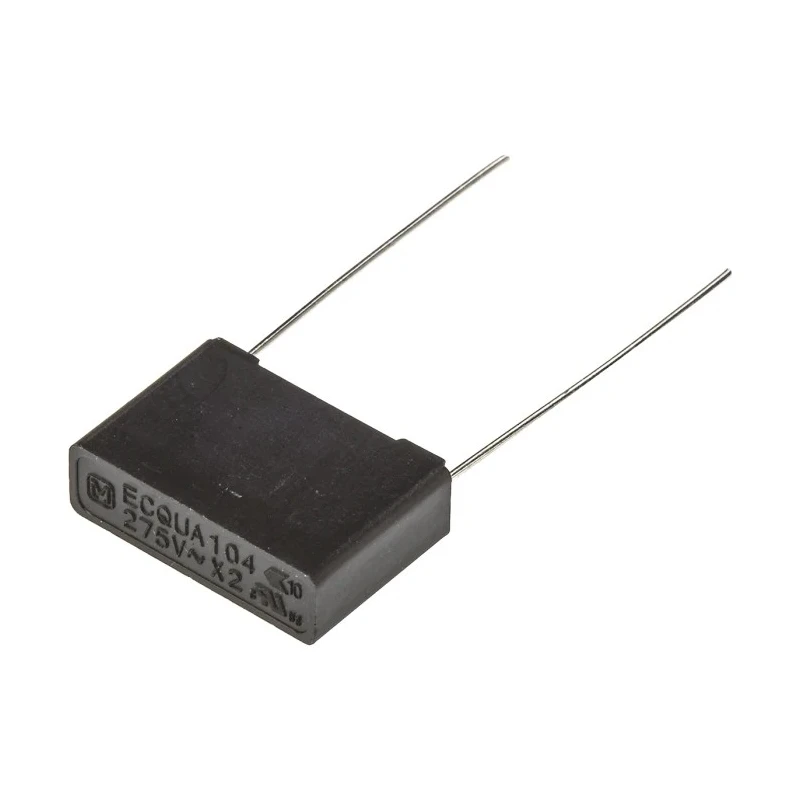

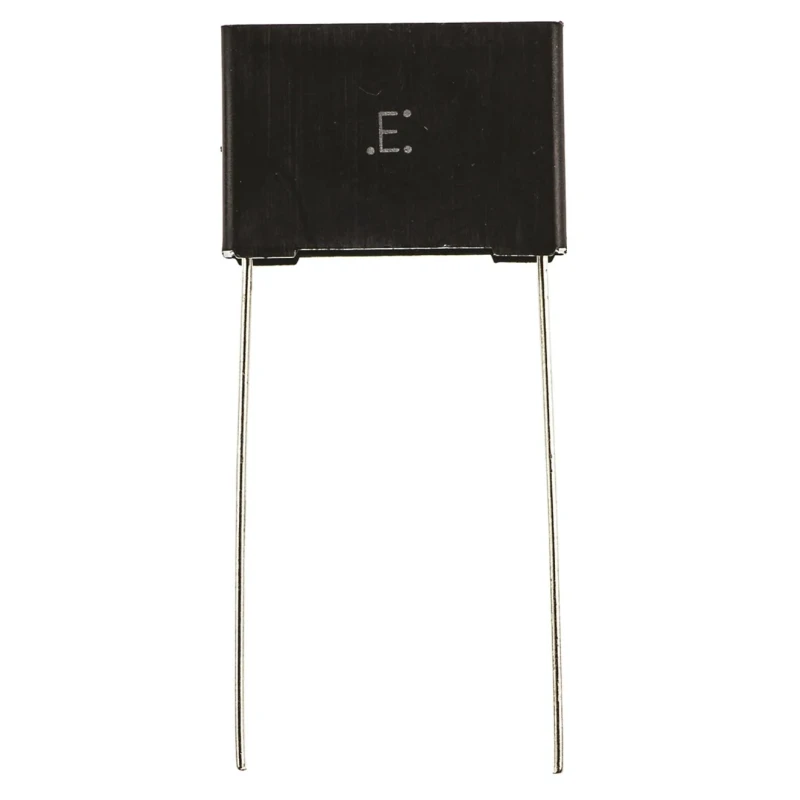

Panasonic ECQUA Film Capacitor X2, ±20 %, 100 nF, 275V AC, Through Hole, Lead Pitch 15mm ECQUAAF104M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 12mm |
| Length | 17.5mm |
| Model | ECQUAAF104M |
| Packaging | Bag |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | ECQUA |
| Maximum Operating Temperature | 110°C |
| Tolerance | ±20 % |
| Capacitance | 100nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Dissipation Factor | 0.2% |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 739-8629Brand: PanasonicManufacturers Part No.: ECQUAAF104MDistrelec Article No.: 304-45-721 |
| Rated AC Voltage | 275V ac |
| Lead Pitch | 15mm |
| Lead Diameter | 0.6mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | X2 |
Key Features
- Excellent interference suppression capacitor suitable for mains applications.
- Features flame retardant plastic housing and non-combustible resin for high safety.
- Operates reliably between -40°C and 110°C ambient temperatures.
- Complies with UL/CSA, IEC60384-14, EN 60384-14 standards ensuring safety and regulatory compliance.
- Compact through hole design with 20mm minimum lead length for easy PCB mounting.
- Automotive grade compliant to AEC-Q200 standard for automotive electronic applications.
Product Description
Panasonic ECQUAAF104M film capacitor is a high safety X2 class film capacitor rated for 275V AC with a capacitance of 100 nF and ±20 % tolerance designed for through hole mounting with a 15mm lead pitch.
Constructed with a flame retardant plastic housing combined with non-combustible resin, this capacitor provides reliable safety features that comply with international standards UL E60384-14, CSA E60384-14, and EN 60384-14.
The capacitor is designed to operate effectively in a wide temperature range from -40°C to 110°C, suitable for demanding industrial and automotive electronic circuits. It includes a safety mechanism to reduce risk in mains interference suppression applications.
Its compact form factor of 17.5mm length, 12mm height, 5mm width, and lead diameter of 0.6mm enables easy PCB through hole assembly. The lead pitch is precisely 15mm with minimum 20mm full length leads, ensuring secure mounting and reliable electrical connection.
Panasonic ECQUA series capacitors meet strict automotive AEC-Q200 testing and are recommended for interference suppression coil applications, protecting devices from voltage spikes and electrical noise in industrial, automotive, and consumer electronics.
Excellent interference suppression capacitor suitable for mains applications. Features flame retardant plastic housing and non-combustible resin for high safety. Operates reliably between -40°C and 110°C ambient temperatures.
Complies with UL/CSA, IEC60384-14, EN 60384-14 standards ensuring safety and regulatory compliance. Compact through hole design with 20mm minimum lead length for easy PCB mounting. Automotive grade compliant to AEC-Q200 standard for automotive electronic applications.
This product is essential in industrial, automotive, and consumer electrical equipment where EMI/RFI suppression and safety compliance are paramount. Explore related Panasonic Film Capacitors and other passive components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this capacitor is 100 nF.
It is rated for 275V AC.
This capacitor operates reliably between -40°C and 110°C.
The dimensions are 17.5mm in length, 12mm in height, and 5mm in width.
The lead pitch is 15mm.
It is designed for through hole mounting.
It complies with UL/CSA, IEC60384-14, and EN 60384-14 standards.
This model is compliant with the AEC-Q200 automotive standard.
The tolerance for this capacitor is ±20%.
It features a flame retardant plastic housing and non-combustible resin for safety.
It is suitable for mains applications and interference suppression in industrial, automotive, and consumer electronics.
The dissipation factor is 0.2%.
