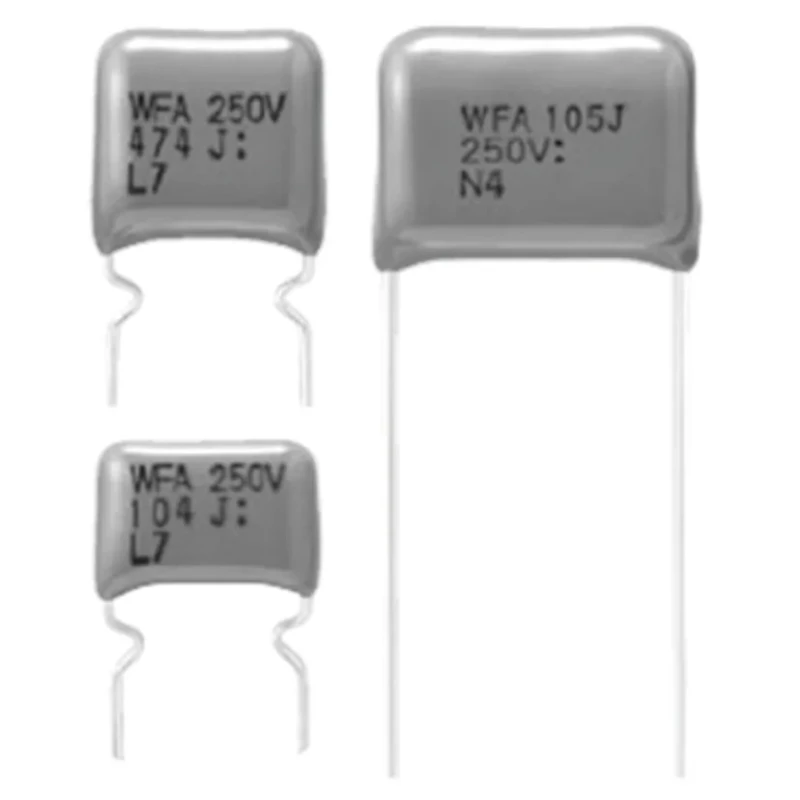

Panasonic ECWF(A) Film Capacitor, 820 nF ±5 %, 450 V dc, Through Hole Mount ECWF2W824JA

Panasonic ECWF2W824JA film capacitor is a high-performance metallised polypropylene film capacitor with 820 nF capacitance and ±5 % tolerance. It is designed for through-hole mounting and rated at 450 V dc, suitable for high current and high frequency environments, delivering excellent frequency characteristics and low hum noise. This capacitor incorporates safety construction technology and is encapsulated in self-extinguishing material compliant with UL94V-0 standards.

The ECWF(A) series capacitors are 50% smaller than the earlier ECQE(H) and ECWF(S) series, allowing for compact PCB designs. The standard lead pitch is 15 mm, with a lead diameter of 0.8 mm, facilitating reliable mounting. Operating reliably between -40°C and 105°C, these capacitors meet automotive grade AEC-Q200 standards, making them suitable for robust industrial applications.

Applications include high current circuits, active filters, and high-frequency circuit designs operating up to 450 V dc. They have approved safety standards including UL 60384-14, EN 60384-14, and CSA E60384-14, ensuring dependable performance in demanding electrical and electronic systems.

Packaged in bags, these capacitors are ready for production line insertion, enhancing assembly efficiency. Their low dissipation factor of 0.1% contributes to high efficiency and reduced losses in sensitive circuits.

High current and high frequency suitable metallised polypropylene film capacitor. Compact 18.1 mm length × 8.2 mm width × 12.7 mm height package size. Operating temperature range of -40°C to 105°C for wide environmental tolerance.

Compliant with multiple international safety standards for reliable use. Designed for automotive and industrial applications requiring stable performance. Low noise and loss characteristics beneficial for sensitive circuits.

Standard 15 mm lead pitch for through-hole PCB mounting. Packaged efficiently in bags for manufacturing ease. Explore more high-quality Film Capacitors at EnvMart for your electronics manufacturing and design needs.
