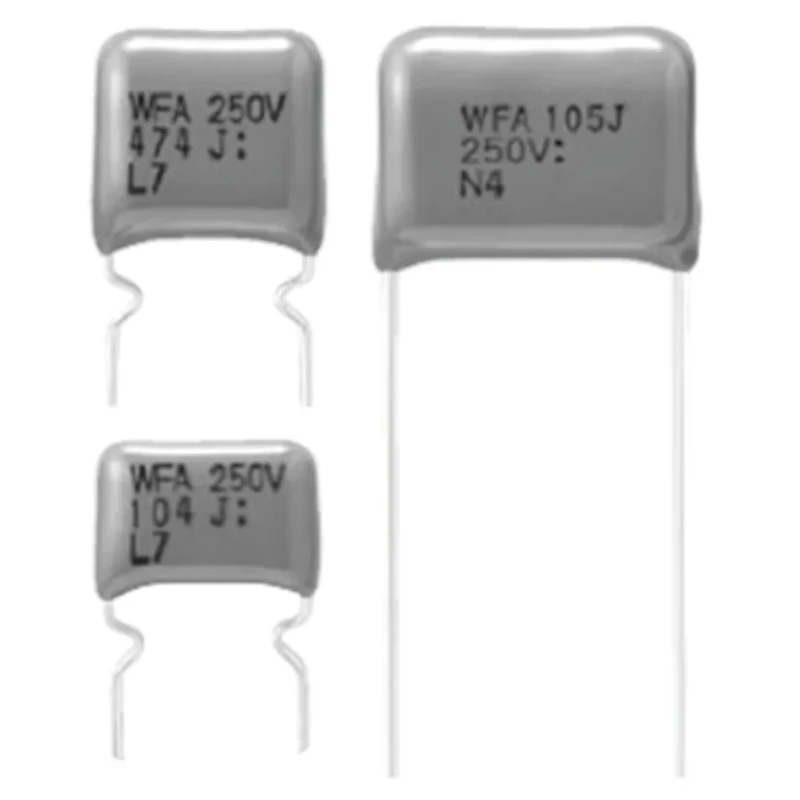

Panasonic ECWF2W824JA ECWF(A) Film Capacitor ±5% 820nF 450V dc Through Hole 15mm Lead Pitch

Panasonic ECWF2W824JA ECWF(A) Film Capacitor is a metallised polypropylene film capacitor designed for demanding high current and high-frequency electronic applications. With a capacitance of 820 nF and a rated DC voltage of 450 V, this capacitor offers excellent electrical performance, making it suitable for active filter circuits and other high-frequency environments.

The capacitor features a tight tolerance of ±5%, ensuring precise capacitance values for sensitive circuit requirements. It is designed with a through-hole mounting style, having a lead pitch of 15 mm and lead diameter of 0.8 mm, supporting robust mechanical and electrical connections on printed circuit boards.

Operating across a broad temperature range from -40°C to 105°C, this capacitor is encapsulated in a self-extinguishing material that meets UL94V-0 flammability standards for enhanced safety and reliability. The low dissipation factor of 0.1% contributes to minimal energy loss and reduced noise, making the capacitor ideal for high current and high frequency applications.

The compact body size, which is approximately 50% smaller than Panasonic's ECQE(H) and ECWF(S) series, allows for dense PCB layouts without compromising performance. The product complies with automotive standard AEC-Q200, certifying its reliability in automotive electronic environments.

Typical applications include high current circuits, active filter circuits, and other environments requiring robust and low noise film capacitors. Its powder resin coating adds mechanical protection, further enhancing durability in harsh industrial conditions.

Compact metallised polypropylene film capacitor with high current capability. Rated DC voltage of 450 V with a capacitance of 820 nF and tolerance of ±5%. Through hole mount with 15 mm lead pitch and 0.8 mm lead diameter.

Operates reliably in temperatures from -40°C to 105°C. Encapsulated in self-extinguishing material complying with UL94V-0 standards. Complies with automotive standard AEC-Q200 for durability. Low dissipation factor of 0.1% ensures low loss and noise.

Physical dimensions: Length 18.1 mm, Width 8.2 mm, Height 12.7 mm. Suitable for high current circuits, active filter circuits, and high frequency environments.

This Panasonic ECWF2W824JA film capacitor is ideal for industrial, automotive electronics, manufacturing, and other sectors demanding reliable, precise passive components. For more options on Film Capacitors and related components, explore the Electronics & Electricals category at EnvMart.
