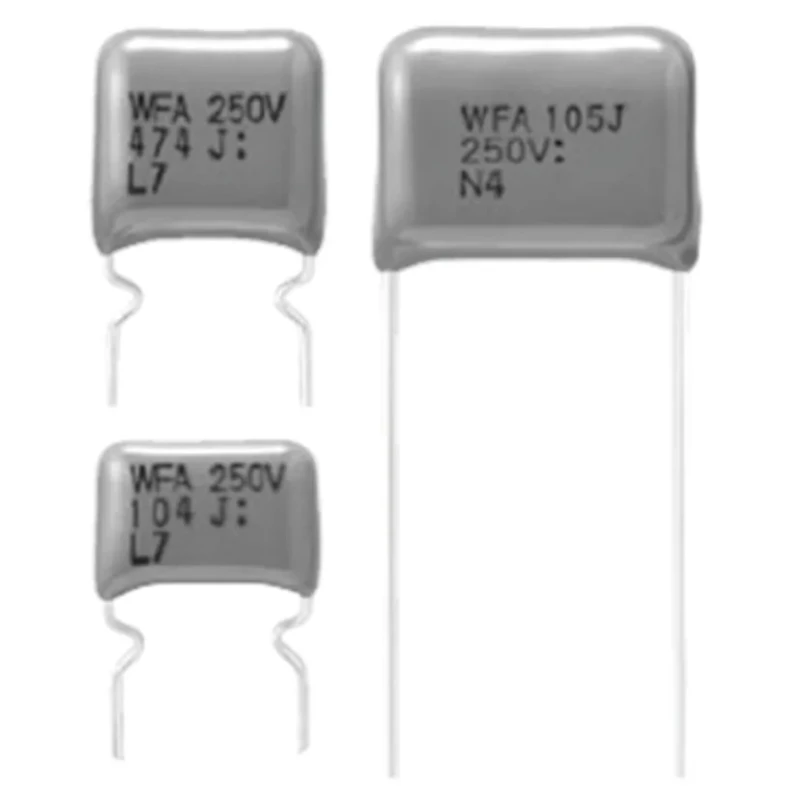

Panasonic ECWF(A) Film Capacitor, 680 nF, ±5% Tolerance, 450 V dc Rated Voltage, Through Hole Mount ECWF2W684JA

Panasonic ECWF2W684JA is a precision metallised polypropylene film capacitor designed to operate at a rated DC voltage of 450 V dc with a capacitance of 680 nF and a tolerance of ±5%. It features a through hole mount type, making it suitable for PCB assembly requiring durable and reliable connections. The capacitor measures 18.1 mm in length, 7.5 mm in width, and 12.1 mm in height with a lead pitch of 15 mm and lead diameter of 0.8 mm.

This capacitor is engineered for demanding industrial and automotive environments, meeting the stringent AEC-Q200 qualification. Its encapsulation in a self-extinguishing material compliant with UL94V-0 enhances safety during operation. It operates efficiently over a temperature range of -40°C to 105°C, making it reliable under diverse conditions.

With a low dissipation factor of 0.1%, the ECWF2W684JA ensures minimal energy loss and excellent frequency characteristics, which contributes to low hum noise in applications. These attributes make it ideal for use in active filter circuits, high current circuits, and high frequency applications up to 630 V dc rating in some cases.

The compact size of the ECWF series offers approximately 50% volume reduction compared to previous models such as the ECQE(H) and ECWF(S) series, optimizing PCB space. These capacitors are supplied in bags, facilitating efficient insertion and manufacturing processes.

Constructed with metallised polypropylene film for low loss and noise. Compact 50% smaller size than previous generation capacitors. Designed for high current and high frequency circuits. Encapsulated in UL94V-0 compliant self-extinguishing material.

Rated for continuous operation between -40°C and 105°C ambient temperatures. Meet automotive AEC-Q200 standards ensuring reliability in harsh environments. Lead pitch of 15mm and diameter 0.8mm for secure through-hole PCB mounting.

Applications include active filters, high current and high frequency circuits. Supplied in bags for ease of handling and assembly automation.

This Panasonic ECWF2W684JA Film Capacitor is a suitable choice for industrial electronics manufacturing, automotive electronics, high frequency circuit boards, HVAC controls, and other electrical and electronic applications requiring durable and efficient passive components.
