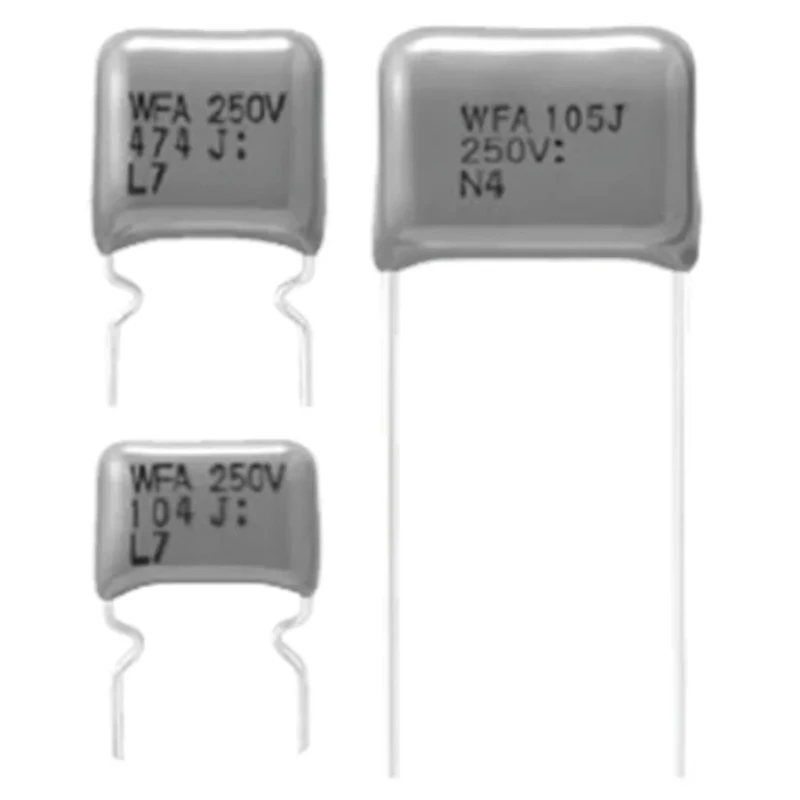

Panasonic ECWF(A) Film Capacitor, 100 nF ±10 %, 450 V dc, Through Hole Mount ECWF2W104KAQ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 18.8mm |
| Length | 13mm |
| Model | ECWF2W104KAQ |
| Packaging | Bag |
| Width | 5.1mm |
| Mount Type | Through Hole |
| Series | ECWF(A) |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±10 % |
| Capacitance | 100nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Dissipation Factor | 0.1% |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 727-0057PBrand: PanasonicManufacturers Part No.: ECWF2W104KAQ |
| Rated DC Voltage | 450V dc |
| Lead Pitch | 10mm |
| Lead Diameter | 0.6mm |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact metallised polypropylene film capacitor suited for high current and high frequency applications.
- Encapsulated in a self-extinguishing material rated UL94V-0 for safety.
- Low loss and low noise characteristics ensure stable performance.
- Lead pitch of 10 mm and lead diameter of 0.6 mm for reliable installation.
- Operating temperature range from -40°C to 105°C for robust industrial use.
- Complies with automotive standard AEC-Q200 and certifications EN 60384-14, CSA E60384-14, UL 60384-14.
- Suitable for active filter circuits and high-frequency, high-current circuits at voltages up to 450 V dc.
Product Description
Panasonic ECWF2W104KAQ ECWF(A) Metallised Polypropylene Film Capacitor offers a reliable, compact solution for demanding electronic circuits requiring high current and high frequency operation. This film capacitor features a capacitance of 100 nF with ±10 % tolerance and a rated DC voltage of 450 V suitable for active filter circuits and high current environments.
Designed for through hole mounting, it includes a lead pitch of 10 mm and 0.6 mm lead diameter, enabling easy installation on printed circuit boards. The capacitor is encapsulated in a self-extinguishing UL94V-0 rated resin, ensuring both safety and durability in industrial applications.
Operating effectively over a wide temperature range from -40°C to 105°C, this capacitor complies with automotive standard AEC-Q200 and meets certifications EN 60384-14, CSA E60384-14, and UL 60384-14, reflecting its quality and reliability in critical use cases.
Applications include high frequency circuits, active filters, and high current circuits requiring low noise and low loss performance, making it ideal for use in industrial electronics, automotive electronics, HVAC systems, and laboratory equipment.
Compact film capacitor designed for high current and high frequency use. Low hum noise and low dissipation factor of 0.1 % for optimal performance. Robust operating temperature range from -40°C to 105°C. Encapsulation with powder resin coated for safety and durability.
Compliant with international safety standards and automotive quality standards.
This Panasonic ECWF2W104KAQ film capacitor is an excellent choice for engineers and technicians requiring high performance and reliable components for sensitive electronic designs. Explore more Panasonic electronic components and Film Capacitors at EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 100 nF with a tolerance of ±10%.
It has a rated DC voltage of 450 V.
This capacitor operates effectively within a temperature range of -40°C to 105°C.
The ECWF2W104KAQ is designed for through hole mounting.
The dimensions of this model are 18.8 mm in height, 13 mm in length, and 5.1 mm in width.
It features a lead pitch of 10 mm and a lead diameter of 0.6 mm.
The dissipation factor for this capacitor is 0.1%.
It complies with the automotive standard AEC-Q200.
This model meets certifications EN 60384-14, CSA E60384-14, and UL 60384-14.
It is suitable for high frequency circuits, active filters, and high current circuits.
The country of origin for this capacitor is India.
It is encapsulated in a self-extinguishing material rated UL94V-0 for safety.
