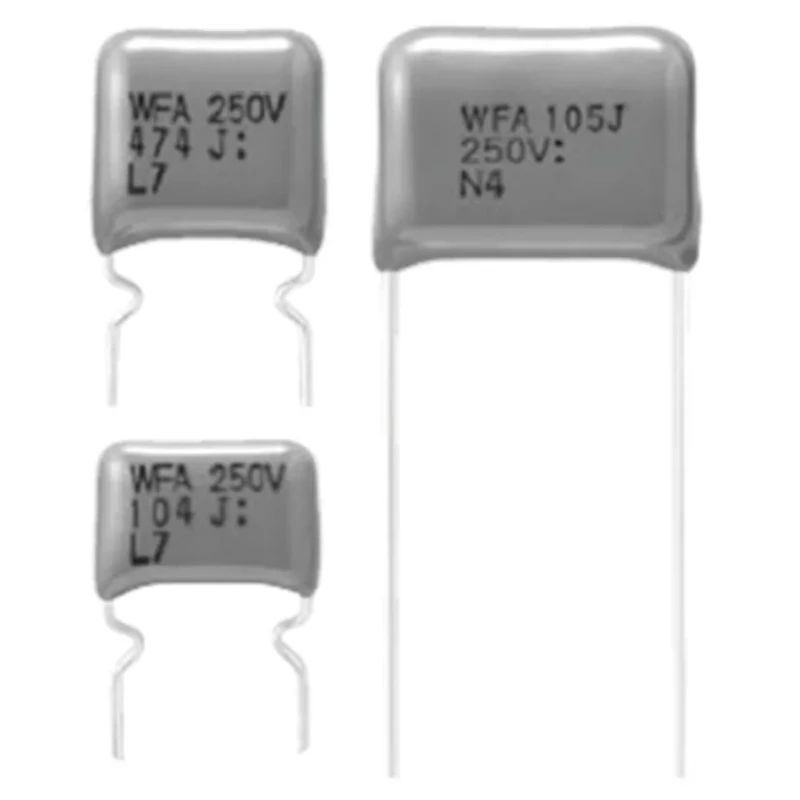

Panasonic ECWF(A) Film Capacitor, ±10% Tolerance, 100 nF Capacitance, 450 V DC Rated Voltage, Through Hole Mount ECWF2W104KAQ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 18.8mm |
| Length | 13mm |
| Model | ECWF2W104KAQ |
| Packaging | Bag |
| Width | 5.1mm |
| Mount Type | Through Hole |
| Series | ECWF(A) |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±10 % |
| Capacitance | 100nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Dissipation Factor | 0.1% |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 727-0057Brand: PanasonicManufacturers Part No.: ECWF2W104KAQ |
| Rated DC Voltage | 450V dc |
| Lead Pitch | 10mm |
| Lead Diameter | 0.6mm |
| Automotive Standard | AEC-Q200 |
Key Features
- Rated for a DC voltage of 450 V ensuring reliable performance in high voltage circuits.
- Constructed with metallised polypropylene film technology for low loss and low noise operation.
- Designed for through hole mounting, suitable for compact PCB layouts.
- Complies with automotive standard AEC-Q200 for enhanced durability in automotive applications.
- Operating temperature range from -40°C to 105°C supports diverse environmental conditions.
- Compact dimensions of 18.8 mm height, 13 mm length, and 5.1 mm width enable space-saving design.
- Features safety construction technology with self-extinguishing UL94V-0 encapsulation.
- Low dissipation factor of 0.1% aids in efficient high frequency circuit performance.
Product Description
Panasonic ECWF2W104KAQ film capacitor is a high-quality metallised polypropylene film capacitor designed for reliability in demanding electronic circuits. Featuring a capacitance of 100 nF and a voltage rating of 450 V DC, this capacitor meets the needs of active filter circuits and high current, high frequency applications.
The device uses a through hole mount type with a lead pitch of 10 mm, enabling easy and secure installation on printed circuit boards.
Its construction includes self-extinguishing encapsulation materials that comply with UL94V-0 standards, enhancing safety in electrical environments. Rated for operation across a temperature range of -40°C to 105°C, the capacitor withstands harsh conditions including automotive environments, backed by its compliance with AEC-Q200 automotive standards.
The capacitor's compact size - measuring 18.8 mm in height, 13 mm length, and 5.1 mm width - makes it suitable for compact PCB designs, reducing space requirements without compromising electrical performance. Its dissipation factor of 0.1% ensures efficient operation in high-frequency circuits with minimal energy losses.
100 nF capacitance with ±10% tolerance for stable performance. 450 V DC rated voltage for high reliability in power circuits. Through hole mount type with 10 mm lead pitch for ease of assembly. Encapsulated with self-extinguishing materials meeting UL94V-0.
Wide operating temperature range from -40°C to 105°C. Low dissipation factor of 0.1% for efficient high-frequency use. Complies with EN 60384-14, CSA E60384-14, and UL 60384-14 standards for safety and quality. Automotive qualified to AEC-Q200.
Compact size ensures space saving on PCBs.
This Panasonic Film Capacitor is ideal for use in industrial, automotive, telecommunications, and consumer electronics applications where reliable, low noise, and high frequency capacitance is required. Its construction and certifications make it suitable for demanding environmental and safety requirements.
Explore more Panasonic electronic components and capacitors in the EnvMart catalogue for reliable performance in your electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this film capacitor is 100 nF with a tolerance of ±10%.
This model has a rated DC voltage of 450 V, ensuring reliability in high voltage circuits.
The dimensions of this capacitor are 18.8 mm in height, 13 mm in length, and 5.1 mm in width.
It operates within a temperature range of -40°C to 105°C, making it suitable for diverse environmental conditions.
This model is designed for through hole mounting, which facilitates easy installation on printed circuit boards.
The lead pitch for this capacitor is 10 mm, allowing for secure assembly on PCBs.
It complies with the AEC-Q200 automotive standard, enhancing its durability for automotive applications.
The dissipation factor is 0.1%, which aids in efficient performance in high-frequency circuits.
It is constructed with metallised polypropylene film technology and features self-extinguishing encapsulation materials that comply with UL94V-0 standards.
This capacitor is suitable for industrial, automotive, telecommunications, and consumer electronics applications where reliable, low noise, and high frequency capacitance is required.
It complies with EN 60384-14, CSA E60384-14, and UL 60384-14 standards for safety and quality.
The terminal type for this model is through hole, which is compatible with standard PCB designs.
